Bently Nevada 330880-28-15-044-01-02 PROXPAC XL Proximity Transducer

Description

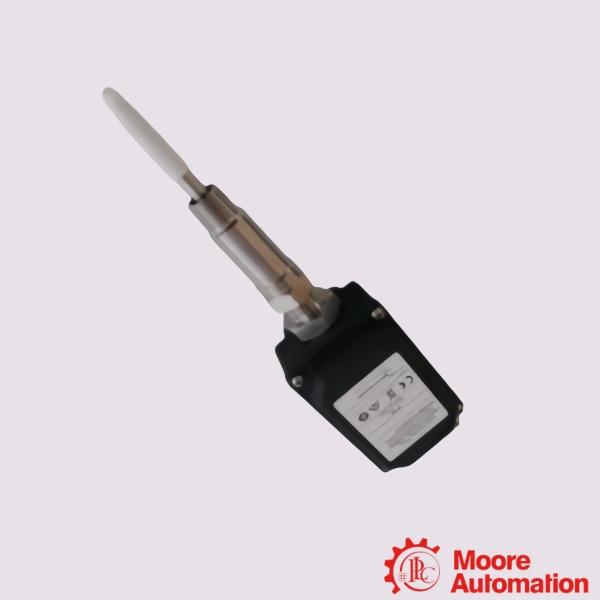

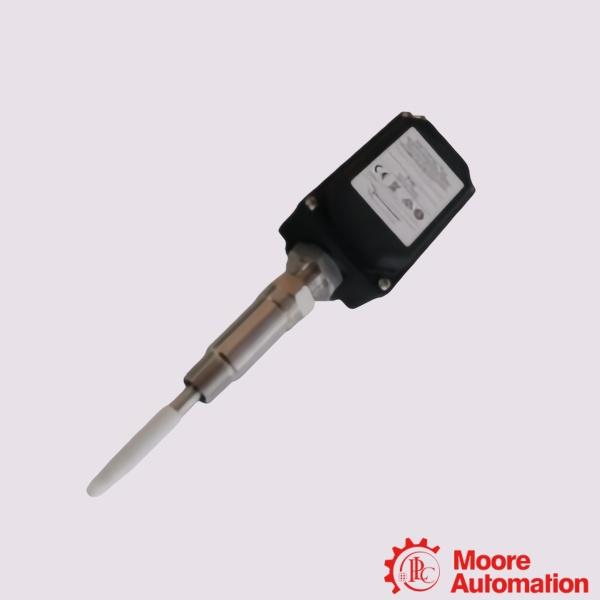

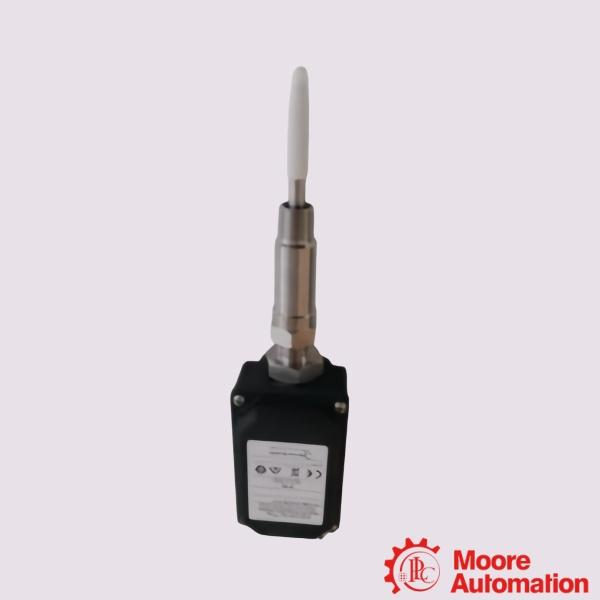

The Bently Nevada 330880-28-15-044-01-02 is a PROXPAC XL Proximity Transducer Assembly designed for continuous vibration and shaft position monitoring on rotating machinery. The assembly integrates a 3300 XL 8 mm proximity probe with a 3300 XL Proximitor Sensor inside a single housing, providing a compact installation solution for machinery monitoring applications. The integrated design eliminates the need for a separate Proximitor Sensor housing and removes the requirement for an extension cable between the probe and sensor. Field wiring connects directly between the monitoring system and the PROXPAC XL assembly, simplifying installation and reducing the number of components required at the machine location. The 330880-28-15-044-01-02 configuration includes a 3300 XL 8 mm probe with multiple approvals, a 1.5 inch (38 mm) standoff adapter, a 4.4 inch probe penetration length, and a 3/4-14 NPT fitting configuration. It is suitable for applications where reliable proximity measurement is required for monitoring shaft vibration and position in critical rotating equipment.

Parameter

MModel: 330880-28-15-044-01-02 PROXPAC XL Proximity Transducer
Probe and Approvals Option: 28-3300 XL 8 mm probe with Multiple
Approvals
Standoff Adapter Option (B Dimension): 15-1.5 in (38 mm)
Probe Penetration Option (C Dimension): 044-4.4 in (110 mm)
Fittings Option: 01-One 3/4-14 NPT fitting, two plugs
Mounting Thread Option: 02-3/4-14 NPT (Required if ordering
Standoff Adapter Option.)

Frequently asked questions

Q:Which product family does the 330880-28-15-044-01-02 belong to?
A:This model belongs to the PROXPAC XL Proximity Transducer Assembly family from Bently Nevada. The assembly combines a proximity probe and Proximitor sensor in a compact housing design.

Q:What components are included in the PROXPAC XL assembly?
A:The PROXPAC XL assembly integrates a 3300 XL 8 mm proximity probe with a 3300 XL Proximitor Sensor, providing a self-contained proximity measurement solution.

Q:What is the advantage of the integrated design?
A:The integrated structure removes the need for a separate Proximitor housing and eliminates the extension cable between the probe and Proximitor sensor, helping simplify installation.

Application areas

• Hazardous Area Protection: Deployed as part of an API 670 machinery protection loop in industrial environments requiring strict ATEX, IECEx, or North American explosion-proof field installations.
• High-Energy Industrial Pumps: Multi-stage boiler feed pumps, crude oil transport pipeline pumps, and high-pressure chemical injection pumps.
• Water & Wastewater: Applied to high-capacity water transport pumps and wastewater treatment aeration blowers.
