Product Description:

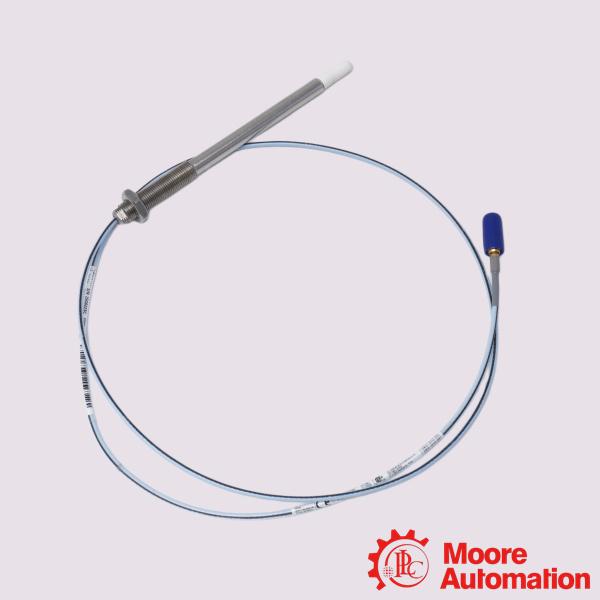

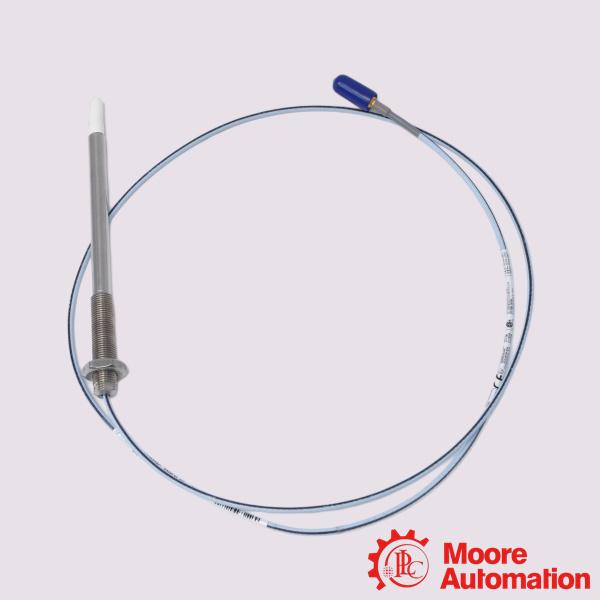

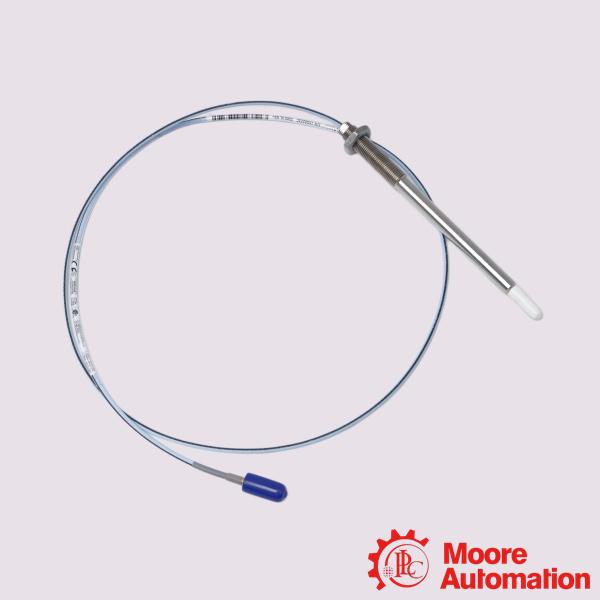

The Bently Nevada 330905-00-18-05-01-CN is a 3300 XL NSv Proximity Probe for precise, non-contact machinery protection. This specific sensor belongs to a specialized class of eddy current transducers optimized for confined spaces, small targets, and installations with side-view restrictions.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).

Frequently Asked Questions (FAQ)

Q:Do I need a specific extension cable and sensor for this probe?

A:Yes. You must match this probe with a dedicated 3300 NSv Extension Cable and a 3300 NSv Proximitor Sensor. Mixing NSv probe components with standard 3300 XL 5mm or 8mm hardware will severely compromise system calibration, skewing volts-per-mil scale factor sensitivity.
Q:What makes the 3300 NSv system different from standard 3300 XL 8mm probes?
A:The NSv system is engineered primarily for small-scale targets or restricted spaces. It has an optimized, tighter magnetic field profile. This configuration prevents the signal from suffering side-wall interference when mounted deep inside counterbored machinery holes or close to surrounding structural metals.

Q:What is the typical operating temperature range for this probe?
A:These proximity probes use a rugged Polyphenylene sulfide (PPS) tip and an AISI 304 stainless steel case. They reliably operate across a wide industrial thermal envelope ranging from -34°C to +177°C (-30°F to +351°F).
