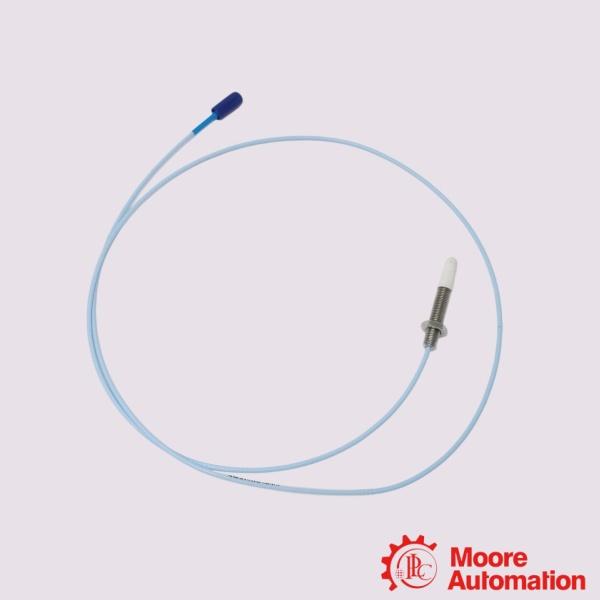

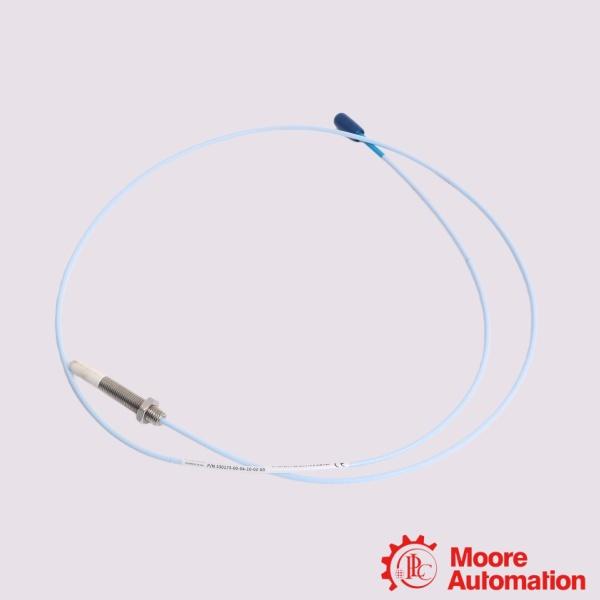

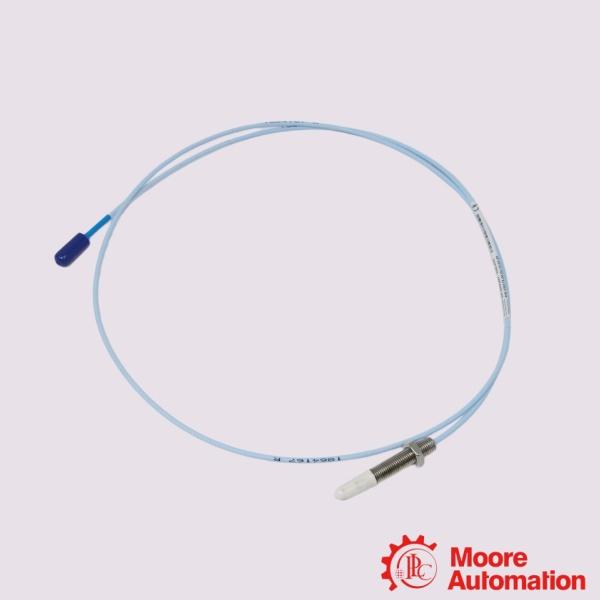

Bently Nevada 330173-00-04-20-12-05 3300 5 mm proximity probe

Brand/ Manufacturer:
Bently Nevada
Dimensions:
2 x 1.8 x 202cm
Weight:
0.33kg
Country of Origin: :
USA
Description:
330173-00-04-20-12-05 3300 5 mm proximity probe

Inquiry now

Part Number:	330173-00-04-20-12-05

Manufacturer:	Bently Nevada

Description:	The 330173-00-04-20-12-05 is a 3300 5 mm proximity probe

Full Description:	This equipped with a miniature coaxial ClickLoc connector with the FluidLoc cable option to help prevent oil and other liquids from migrating through the cable

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Sales manager: Tiffany Guan plcsale@mooreplc.com + 86 18030235313 2851195473

Description

The Bently Nevada 330173-00-04-20-12-05 is a 3300 5 mm proximity probe designed for use with compatible 3300 XL extension cables and 3300 XL Proximitor Sensors as part of the 3300 5 mm Transducer System. The probe features an M8 × 1 threaded body, a 40 mm overall case length, and a 2.0 m total cable length. It is equipped with a miniature coaxial ClickLoc connector with the FluidLoc cable option to help prevent oil and other liquids from migrating through the cable. The probe incorporates TipLoc molding to strengthen the bond between the probe tip and the probe body, while complete interchangeability with compatible system components eliminates the need for individual component matching or bench calibration. It is intended for non-contact vibration, position, Keyphasor, and speed measurement on fluid-film bearing machines.

Parameter

Model: 330173-00-04-20-12-05 3300 5 mm proximity probe
Unthreaded Length Option: 00-0.0mm
Overall Case Length Option: 04-40mm
Total Length Option: 20-2.0 metres (6.6 feet)
Connector Option: 12-Miniature coaxial ClickLoc connector, FluidLoc cable
Agency Approval Option: 05-CSA, ATEX, IECEx Approvals

Frequently asked questions

Q:What is the Bently Nevada 330173-00-04-20-12-05?
A:The 330173-00-04-20-12-05 is a 3300 5 mm proximity probe designed for use with compatible 3300 XL extension cables and 3300 XL Proximitor Sensors as part of the 3300 5 mm Transducer System.

Q:What are the key mechanical specifications of the 330173-00-04-20-12-05?
A:The probe features an M8 × 1 threaded body, a 40 mm overall case length, a 2.0 m total cable length, and is supplied without armor.

Q:Which connector option is used on the 330173-00-04-20-12-05?
A:It is equipped with a miniature coaxial ClickLoc connector with the FluidLoc cable option.

Application areas

The Bently Nevada 330173-00-04-20-12-05 primary application areas include:

Centrifugal Air & Gas Compressors: Deployed in localized, tight installation envelopes to map dynamic shaft motion.
High-Speed Auxiliary Pumps & Fans: Protects smaller-frame fluid pumps, blowers, and turbochargers from critical wear.
Small Diameter Shafts: Ideal for monitoring radial vibration on slender machinery shafts smaller than 51 mm (2 in) where larger sensor fields would suffer from edge distortion.
Phase Reference (Keyphasor Signals): Observes a precise physical notch or keyway on a rotating shaft once per revolution to deliver reference timing signals used for vector phase analysis.
