in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
26x26x3.5cmWeight:
0.25kgCountry of Origin: :
USADescription:

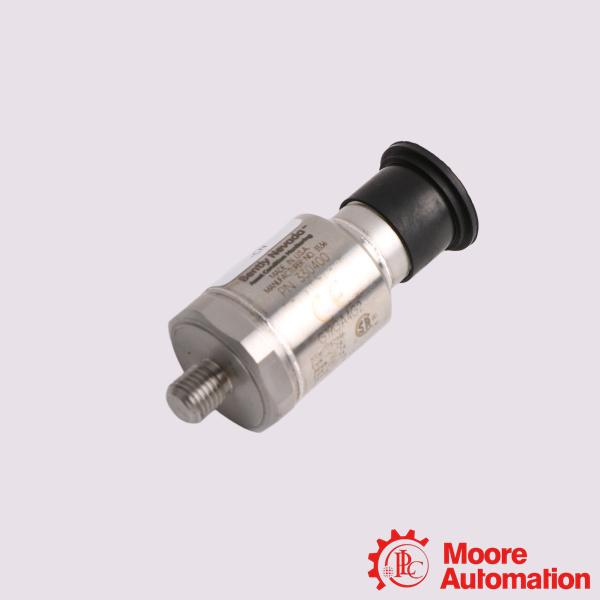

Bently Nevada 330400-02-CN 130539-30 Accelerometer
| Mfr. Part Number: |
330400-02-CN 130539-30 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
These accelerometers are intended for critical machinery applications where casing acceleration measurements are required, such as gear mesh monitoring. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

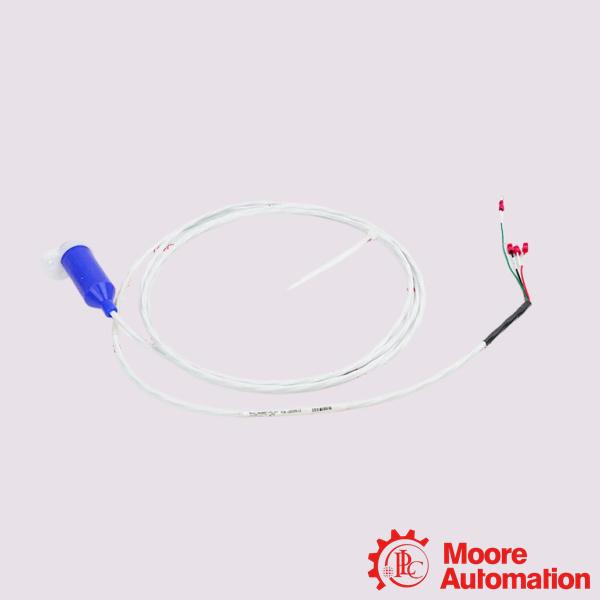

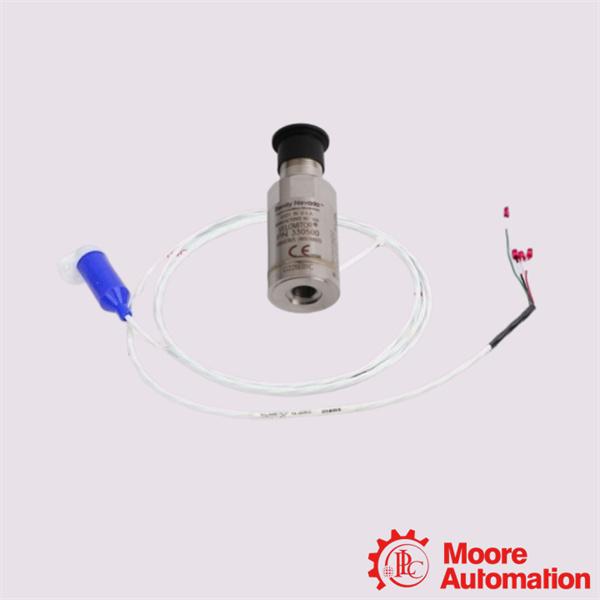

The Bently Nevada 330400-02-CN is a rugged, API 670-compliant accelerometer transducer paired with the 130539-30 (a 30-foot, 3-conductor shielded interconnect cable). This specialized combination is primarily used for casing vibration measurements and high-frequency monitoring on critical, heavy-duty industrial machinery. These accelerometers are intended for critical machinery applications where casing acceleration measurements are required, such as gear mesh monitoring. It provides an amplitude range of 50 g peak and a sensitivity of 100 mV/g. The 330425 is identical except it provides a larger amplitude range (75 g peak) and a sensitivity of 25 mV/g.
Application:
Oil and Gas: Upstream drilling rigs, refinery compression trains, and LNG transport terminals.
Power Generation: Combined-cycle power plants, hydro-turbines, and wind turbine gearboxes.
Chemical / Petrochemical: Aggressive polymer processing plants, ammonia pumps, and cracking units.
Gas and Steam Turbines: Measuring blade pass frequencies and structural casing resonance.
Frequently Asked Questions (FAQ)
Q:What is the proper installation torque for the 330400 sensor?
A:The sensor must be torqued to 4.1 N·m (3.0 ft·lb). Over-torquing can warp the internal crystalline structures or strip the thread, whereas under-torquing degrades high-frequency signal transmission accuracy.
Q:Can this accelerometer be used in wet or humid environments?
A:Yes. The 330400 features a hermetically sealed case capable of handling 100% condensing relative humidity. However, it is not rated for submerged use. The fluorosilicone boot on the 130539-30 Interconnect Cable seals the terminal connection against oil and moisture ingress
Q:What power supply parameters are required?
A:The system requires a continuous negative power supply input of -24 ±0.5 Vdc. It draws a nominal 2 mA bias current and outputs a nominal -8.5 ±0.5 Vdc bias voltage under rest conditions.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330400-02-CN 130539-30 |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ±5% |
|
Amplitude Linearity |
±1% to 490 m/ s2 (50 g) peak |
|
Transverse Sensitivity |
Less than 5% of axial. |
|
Input Voltage |
-24 ± 0.5 Vdc |
|
Bias Current |
2 mA nominal. |
|
Output Bias Voltage |
-8.5 ± 0.5 Vdc |
|
Mounting Thread Option |
M8 X 1 integral stud |
|
Minimum length |
2.0 ft (0.6 m) |
|
maximum length |
99 ft (30 m) |
|
Cable Length Option in feet |
30 ft |
|
