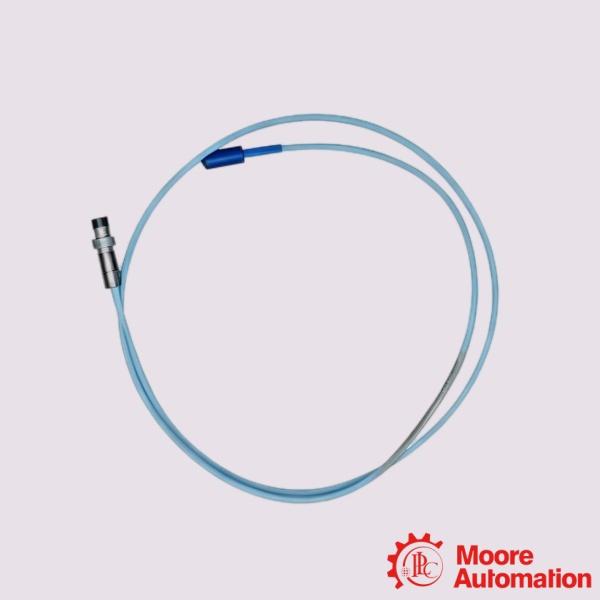

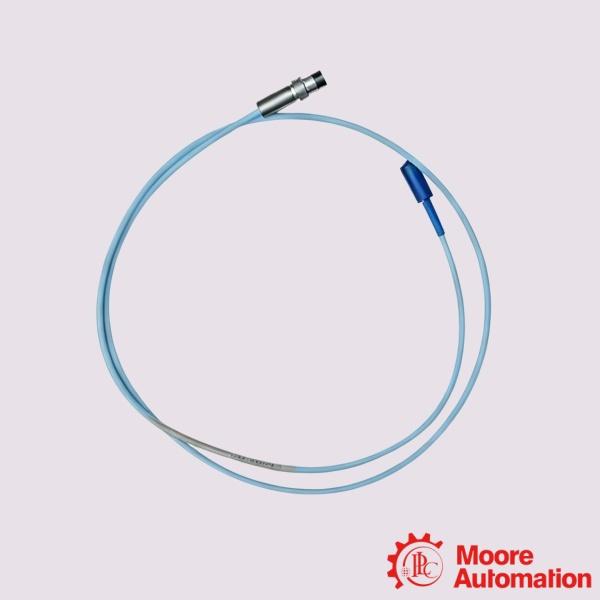

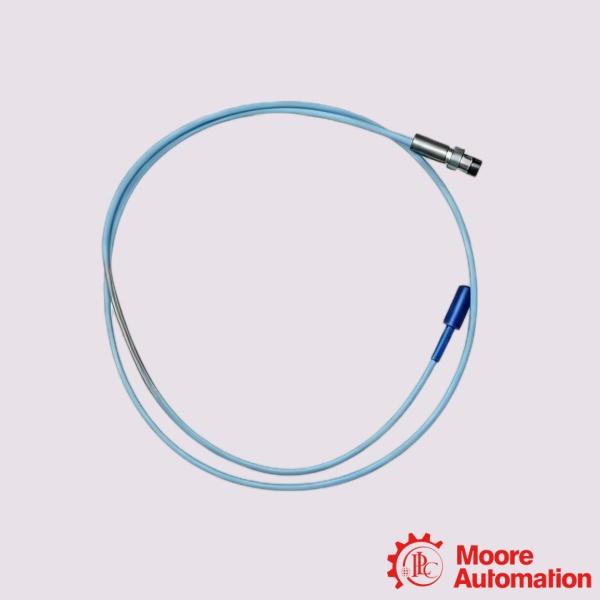

Bently Nevada 330172-08-12-50-02-00 3300 5 mm Proximity Probe

Frequently asked questions
Q:Is the Bently Nevada 330172-08-12-50-02-00 approved for hazardous area installations?
A:The base model -00 has no intrinsic safety approvals. The probe itself, when used with barriers, can achieve Ex ia IIC T4/T5 Ga for Zone 0.

Q:What are the configuration details of the 330172-08-12-50-02-00?
A:This model is configured with a 1/4-28 UNF threaded probe with armor, 0.8 inch overall case length, 5.0 meter total length, and a Miniature coaxial ClickLoc connector with standard cable.

Q:Can this probe operate with existing Bently Nevada monitoring systems?
A:The probe is designed to operate with compatible 3300 series monitoring components, including the required extension cable and Proximitor Sensor, as part of a complete proximity transducer system

Description

The Bently Nevada 330172-08-12-50-02-00 is a 3300 5 mm Proximity Probe used for non-contact measurement of shaft vibration and position in rotating machinery applications. It is part of the 3300 5 mm Proximity Transducer System, which consists of a 3300 5 mm probe, a 3300 XL extension cable, and a 3300 XL Proximitor Sensor. The system uses eddy current sensing technology to measure the distance between the probe tip and the observed conductive surface. The output voltage changes in proportion to this distance, allowing the system to measure both dynamic vibration signals and static shaft position values. The primary applications include vibration and position monitoring on fluid-film bearing machines, as well as Keyphasor reference and speed measurement applications. The 330172-08-12-50-02-00 configuration is designed for applications where a compact 5 mm probe is required due to physical installation limitations. The 3300 5 mm probe provides the same linear range as the 3300 XL 8 mm probe while using a smaller physical package, making it suitable for installations with restricted mounting space. The probe incorporates Bently Nevada’s patented TipLoc molding method, which improves the connection between the probe tip and probe body. The system can also be configured with compatible extension cables and Proximitor Sensors to provide stable measurement performance for continuous machinery condition monitoring.

Parameter

Model: 330172-08-12-50-02-00 3300 5 mm Proximity Probe
Unthreaded Length Option: 08-0.8 in
Overall Case Length Option: 12-1.2 in
Total Length Option: 50-5.0 metres (16.4 feet)
Connector Option: 02-Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option: 00-Agency Approval Option

Application areas

• Power Generation Plants: Installed within standard gas and steam turbines, auxiliary pumps, and secondary generation machinery lines.
• Oil & Gas Process Facilities: Deployed on plant utility assets, intermediate fluid distribution hubs, and separation processing systems.
• Chemical & Petrochemical Processing: Integrated into general process automation setups, blending equipment, and cooling mechanical loops outside explosive gas risk zones.
• General Manufacturing & Infrastructure: Used inside large industrial factories, air compressor facilities, water transport operations, and marine auxiliary systems.
