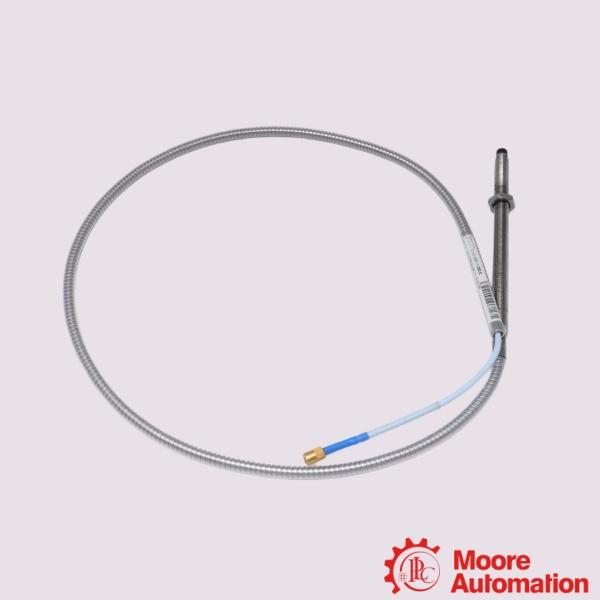

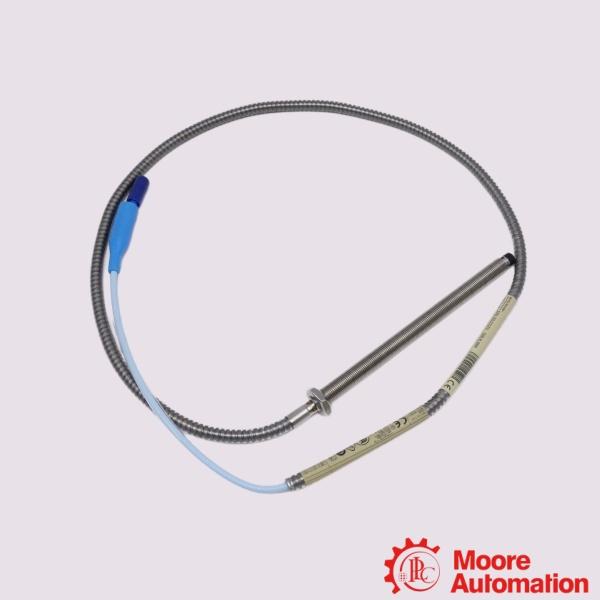

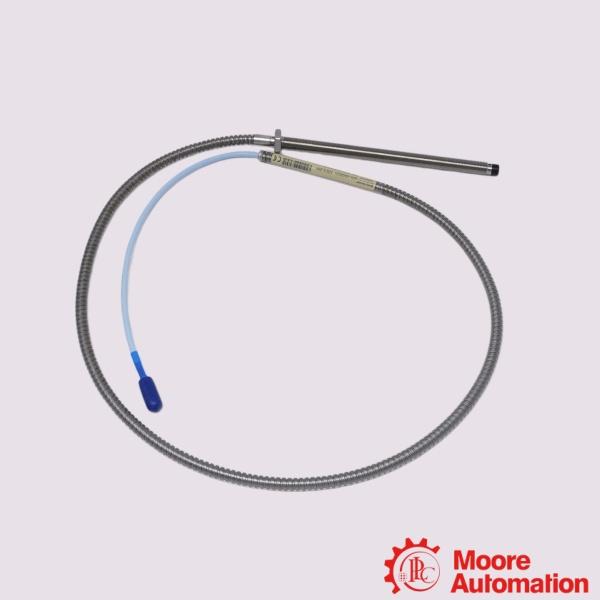

Bently Nevada 330104-00-15-50-12-00 3300 XL 8 mm proximity probe

Description

The Bently Nevada 330104-00-15-50-12-00 is a 3300 XL 8 mm Proximity Probe used for non-contact measurement of shaft vibration and position in rotating machinery monitoring applications. It is part of the 3300 XL 8 mm Proximity Transducer System, which works with a compatible extension cable and Proximitor Sensor to provide accurate proximity measurement for machinery condition monitoring. The probe operates using eddy current sensing technology to measure the distance between the probe tip and the conductive target surface. This measurement method allows the system to monitor both dynamic vibration changes and static shaft position values without direct contact with the rotating component. The 330104-00-15-50-12-00 configuration is a 3300 XL 8 mm probe with an M10 x 1 thread, 1.5 inch overall case length, 5.0 meter total length, miniature coaxial ClickLoc connector, and standard cable configuration. The probe is supplied for use with compatible 3300 XL Proximitor Sensors and extension cable assemblies as part of a complete proximity monitoring system. The 3300 XL 8 mm proximity system is commonly applied for vibration and position monitoring on fluid-film bearing machines, as well as Keyphasor reference and speed measurement applications.

Parameter

Model: 330104-00-15-50-12-00 3300 XL 8 mm proximity probe
Unthreaded Length Option: 00-0 mm
Overall Case Length Option: 15-150 mm
Total Length Option: 50-5.0 meters (16.4 feet)
Connector and Cable-Type Option: 12-Miniature coaxial ClickLoc
connector, FluidLoc cable
Agency Approval Option: 00-Not required

Frequently asked questions

Q:What applications are suitable for the 330104-00-15-50-12-00?
A:It is commonly used for vibration and position monitoring on rotating equipment, including fluid-film bearing machines and other critical machinery requiring continuous condition monitoring.

Q:How does 330104-00-15-50-12-00 satisfy metric length rules?
A:Zero unthreaded length is at least 20mm less than 150mm case (0 ≤ 130). Design rule satisfied without requiring threaded section extension.

Q:What components are required to form a complete 3300 XL 8 mm proximity system?
A:A complete system normally consists of a 3300 XL 8 mm probe, a compatible 3300 XL extension cable, and a 3300 XL Proximitor Sensor.

Application areas

• Power Generation: Installed on industrial steam turbines, gas turbine auxiliary systems, and medium-scale utility generators to track high-speed rotor behavior.
• Petrochemical & Refining: Deployed on continuous process equipment lines, chemical reactors, and plant processing machinery outside of designated explosive hazard zones.
• Oil & Gas Midstream/Downstream: Applied on pipeline transport pump systems and processing terminal facilities requiring precise machine tracking.
• General Heavy Manufacturing: Used on large-scale automated plant machinery, pulp and paper processing machines, and maritime rotating equipment.
