Product Description:

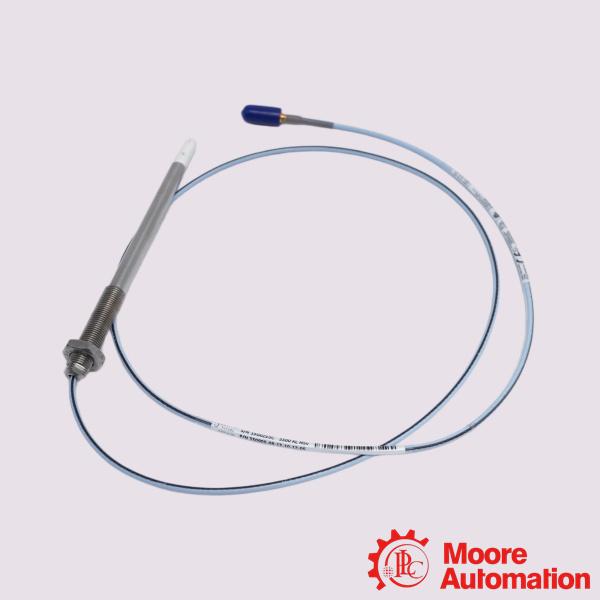

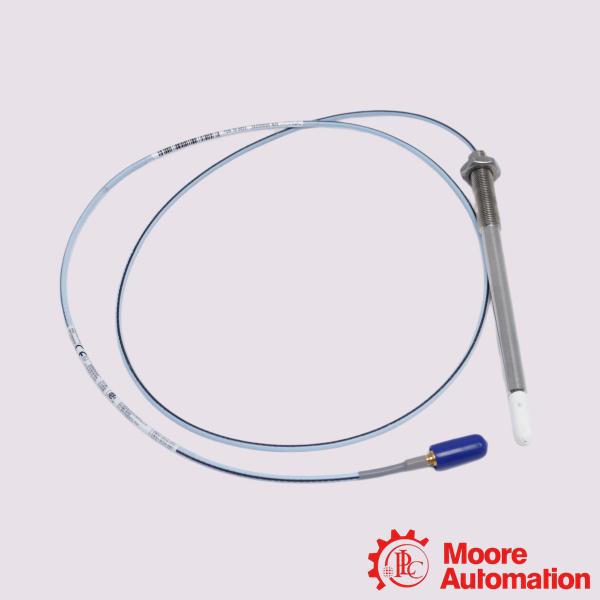

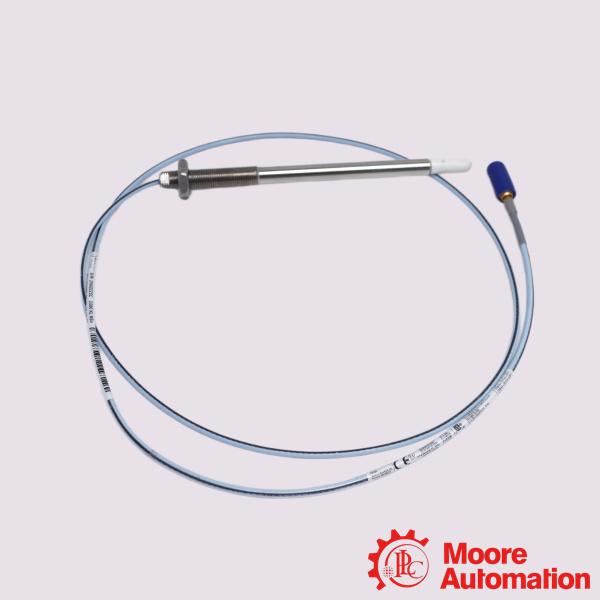

The Bently Nevada 330905-00-22-05-01-00 is a 3300 NSv proximity probe for non-contact vibration and displacement monitoring on machinery with tight physical installation clearances or very small target surfaces. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.

Frequently Asked Questions (FAQ)

Q:What is the primary purpose of the 3300 NSv system?

A:The 3300 NSv (Narrow Side-view) system is engineered for applications with strict physical restrictions. It operates in confined spaces where counterbore, side-view, or rear-view clearances prevent the use of standard 5 mm or 8 mm probes. It is ideal for small target areas, such as tracking radial vibration on shafts under 51 mm (2 inches) or axial position on flat targets under 15 mm (0.6 inches).
Q:How do I prevent cross-talk during installation?
A:Because these probes are tightly spaced on smaller targets, their electromagnetic fields can easily cross-talk, leading to false vibration readings.

Q:What are the main applications for this specific probe?
A:This model is deployed where counterbore or side-view physical restrictions prevent the use of standard 5 mm or 8 mm sensors. It is primarily used for radial vibration, axial thrust position, and tachometer speed tracking on fluid-filmed bearing machines.
