Bently Nevada 330102-00-40-90-11-05 3300 XL 8 mm Proximity Transducer System

Description

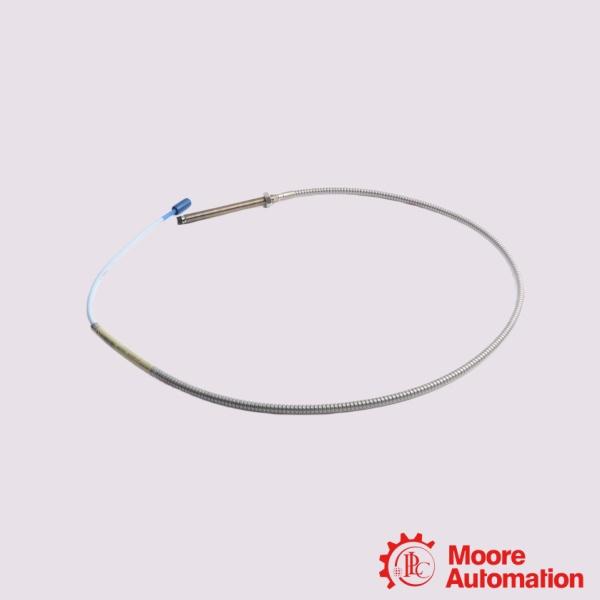

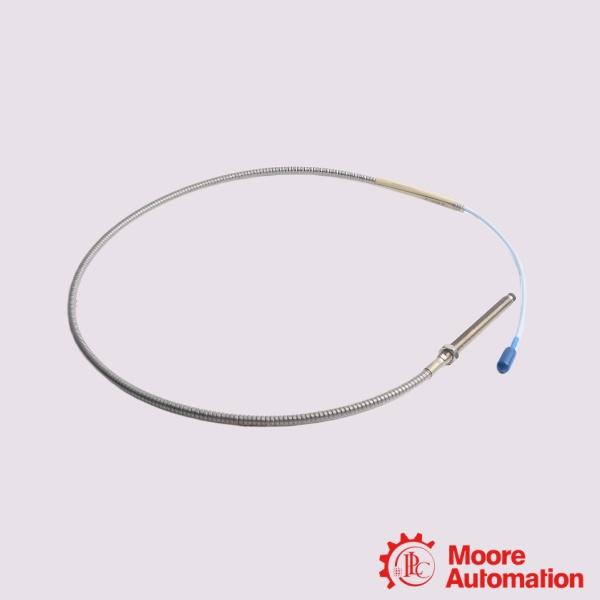

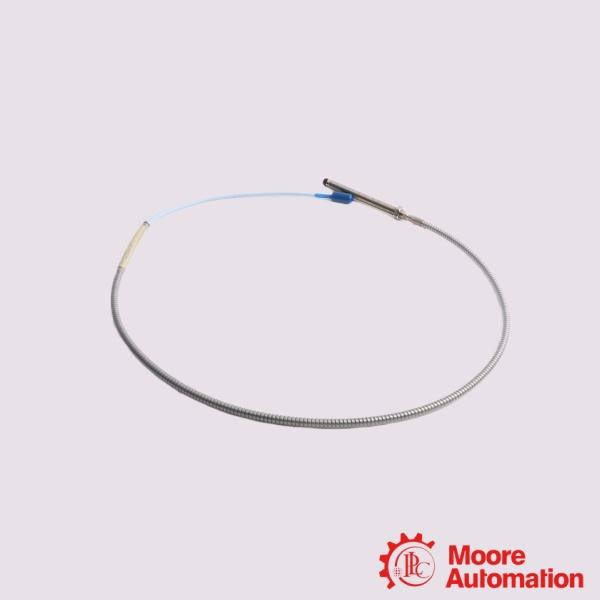

The Bently Nevada 330102-00-40-90-11-05 is an armored 3300 XL 8 mm probe featuring a 3/8-24 UNF thread with full stainless steel armor protection This configuration specifies zero unthreaded length (00) 4.0 inches overall case length (40) and a total probe length of 9.0 meters (90) The 330102-00-40-90-11-05 uses FluidLoc cable with a miniature coaxial ClickLoc connector and factory-installed connector protector (11) and carries multiple hazardous area approvals (05). Agency approval option 05 on the 330102-00-40-90-11-05 provides CSA ATEX and IECEx certifications for hazardous area installations worldwide The probe incorporates patented TipLoc molding for robust tip-to-body bonding and CableLoc design delivering 330 N (75 lbf) pull strength The gold-plated ClickLoc connectors require only finger-tight torque with audible click confirmation.

Parameter

Model: 330102-00-40-90-11-05 Proximity Transducer System
Unthreaded Length Option: 00-0.0 in
Overall Case Length Option: 40-4.0 in
Total Length Option: 90-9.0 metres (29.5 feet)
Connector and Cable-Type Optio: 11-Miniature coaxial ClickLoc connector with connector protector FluidLoc cable
Agency Approval Option: 05-CSA ATEX IECEx  Approvals

Frequently asked questions

Q:Is 330102-00-40-90-11-05 approved for hazardous areas？
A:Yes, agency approval option 05 provides CSA  ATEX and IECEx certifications for installation in potentially explosive atmospheres worldwide.

Q:What is the Bently Nevada 330102-00-40-90-11-05 ?
A:The Bently Nevada 330102-00-40-90-11-05 is a 9.0-meter high-precision 3300 XL 8 mm eddy-current proximity probe equipped with an integrated stainless steel armored cable.

Q:What is the 330102-00-40-90-11-05 main difference between this model and the 330102-00-16-90-11-05?
A:The only difference is the overall case length. This model (-40) has a 4.0-inch (102 mm) barrel, whereas the -16 model has a shorter 1.6-inch (41 mm) barrel. Electrically and functionally, they are identical.

Application areas

The Bently Nevada 330102-00-40-90-11-05 is primarily used in heavy rotating machinery across critical process industries where maximum reliability deep-bore mounting and severe environmental protection are required.

• Oil & Gas(Upstream & Downstream): Deployed on offshore production platformsrefining units and fertilizer plants to evaluate high-speed turboexpanders and multiphase pumps.
• Power Generation: Monitors steam turbines, gas turbines, and massive cooling tower fans to map thermal expansion and shaft vibration.
• Petrochemical & Chemical Processing: Applied continuously to process gas compressors and hazardous chemical transfer pumps.
• Mining & Metal Processing: Protects high-power ore crushers, heavy-duty conveyor drives, and steel rolling mill gearboxes from catastrophic mechanical wear.
