190501-05-00-CN | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

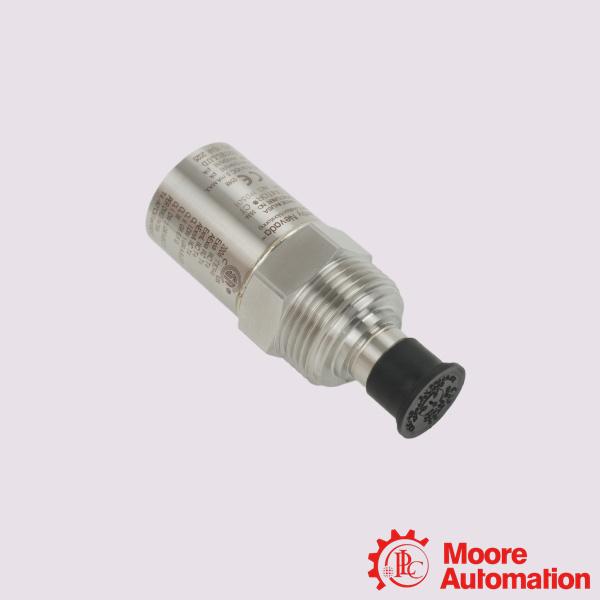

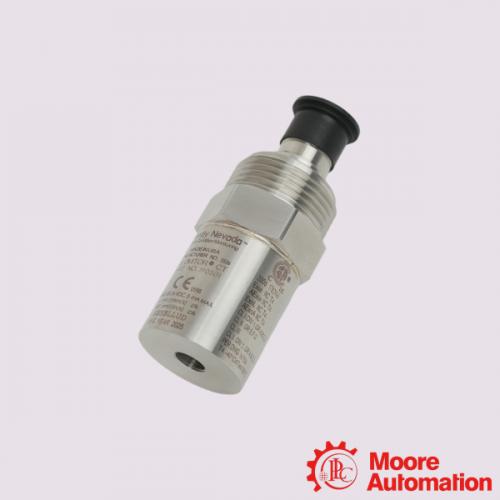

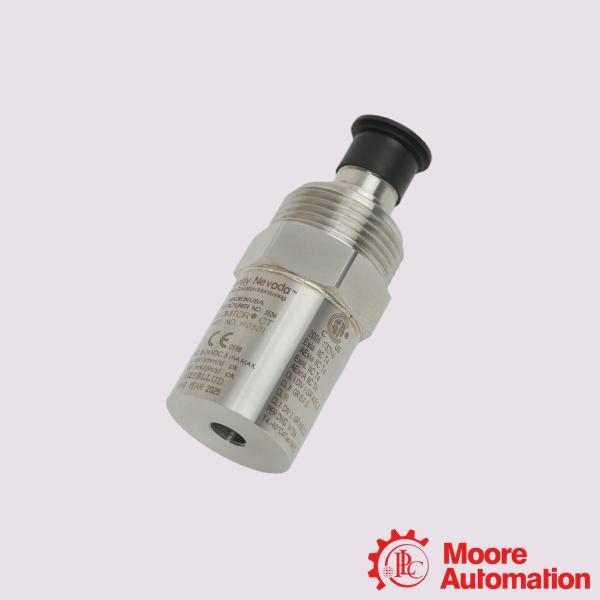

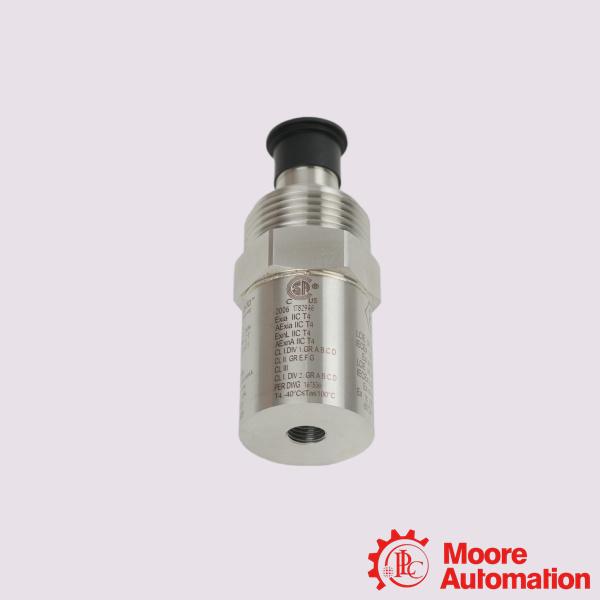

Bently Nevada 190501-05-00-CN Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-05-00-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-05-00-CN Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-05-00-CN is a Velomitor CT (cooling tower) velocity sensor designed for monitoring the casing vibration velocity of low-frequency industrial fan equipment, suitable for fans with speeds not lower than 90 RPM. As a low-frequency version of the standard Velomitor piezoelectric velocity sensor, this product is specifically optimized for measuring the casing vibration velocity of cooling tower and air-cooled heat exchanger fans (typical speeds 100–300 RPM). This sensor not only measures the amplitude of these low-frequency vibrations but also effectively captures the vibration frequencies generated by the fan motor and reducer.

Application:

Power Generation Plants: Installed on cooling systems for nuclear, gas, thermal, and coal power plants where continuous asset uptime is mandatory.
Petrochemical & Refining Facilities: Monitors critical heat-exchanger banks and cooling blocks vulnerable to severe environmental exposure and explosive hazards.
Chemical Processing: Used to track machinery exposed to highly corrosive atmospheres due to its rugged 316L stainless steel enclosure.
Heavy Manufacturing & LNG Plants: Implemented across large-scale industrial HVAC and liquified natural gas cooling systems.

Frequently Asked Questions (FAQ)

Q:What is the primary purpose of the Velomitor CT?
A:The sensor measures low-frequency casing vibration velocity. It is optimized for cooling tower and air-cooled heat-exchanger fan assemblies. It detects problems like fan unbalance, blade defects, or structural loosening before catastrophic failure occurs.
Q:How does the "CN" suffix affect application?
A:The CN suffix ensures the hardware complies with specific Chinese national standards and hazardous area certifications (such as NEPSI/CCC-Ex). This is required for legal installation in regulated or industrial zones within China.

Q:What kind of cable does this sensor require?
A:Because the connection code is 00, a cable is not included. It features a standard 2-pin MIL-C-5015 top connector. You must pair it with a separate, compatible Bently Nevada splash-proof or armored interconnect cable assembly.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-05-00-CN
Mounting Hardware Option	Adhesive Stud M6x1 with 3/8-24 adapter
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Output Bias Voltage	10.1 Vdc ± 1.0 Vdc
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
