190501-04-99-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x8.3x3.1cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

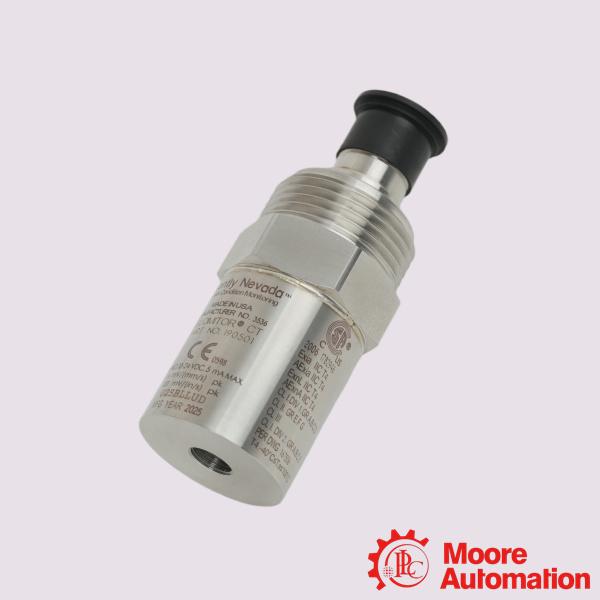

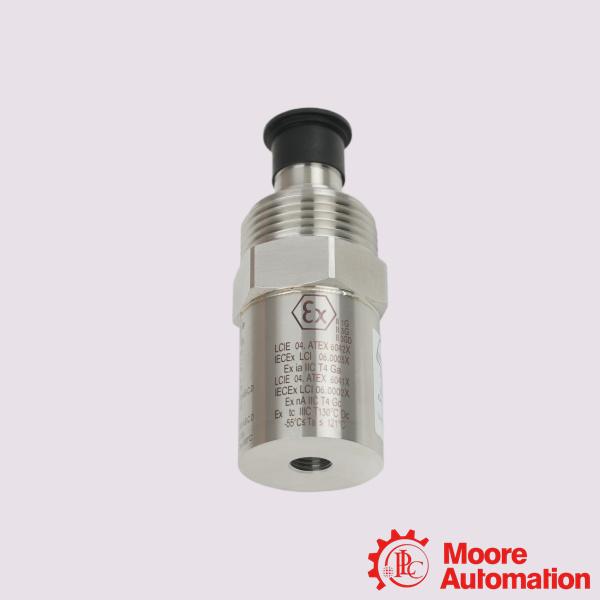

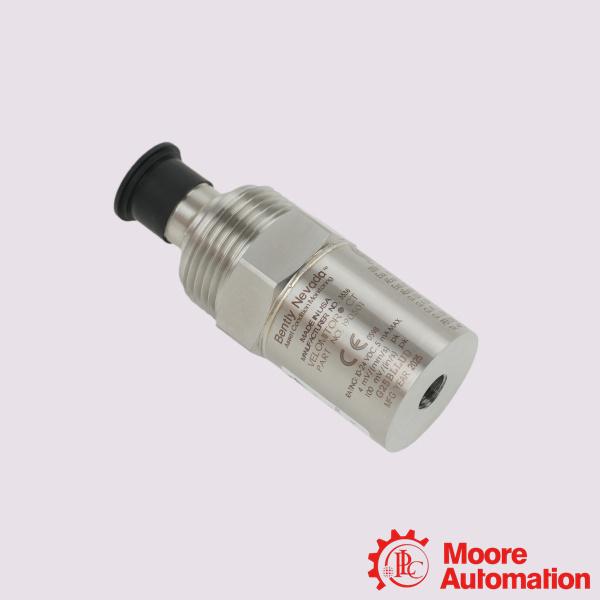

Bently Nevada 190501-04-99-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-04-99-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-04-99-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-04-99-00 is a specific build of the Velomitor CT (Cooling Tower) Velocity Transducer, an industrial-grade piezo-velocity sensor engineered to capture low-frequency casing vibrations.The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).

Application:

Oil & Gas / Petrochemical: Refinery fin-fan decks and hydrocarbon processing plant cooling loops.
Power Generation: Condenser cooling water towers in fossil-fuel, combined-cycle, and nuclear power plants.
Mining & Metal Processing: Large smelting/pulp mill venting systems and process-critical heavy cooling blocks
Industrial Cooling Towers:Large-scale heat rejection systems used across power plants, chemical hubs, and heavy manufacturing.

Frequently Asked Questions (FAQ)

Q:Where is this sensor typically deployed?
A:The Velomitor CT is optimized for low-speed machinery operating in wet, harsh conditions. It is widely used to monitor vibration in cooling towers, air-cooled heat exchangers, and industrial fan assemblies.
Q:How should this sensor be mounted?
A:It must be installed on a clean, flat 33 mm (1.3 in) diameter mounting surface. Utilizing the integrated 99-option adapter stud, you must tighten the unit to a precise mounting torque of 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf). Improper torquing will introduce false high-frequency feedback or signal loss.

Q:Can I calibrate this transducer in the field?
A:Yes, using a portable vibration calibrator. Because the 190501 tracks low frequencies, you must run an automated frequency sweep (testing at 600, 300, 180, and 120 cpm) and allow the shaker table extra time to settle at low speeds before checking the millivolt output against its target specs.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-04-99-00
Mounting Hardware Option	Stud M6x1 with 3/8-in 24 adapter
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Agency Approval Option	No Approvals
