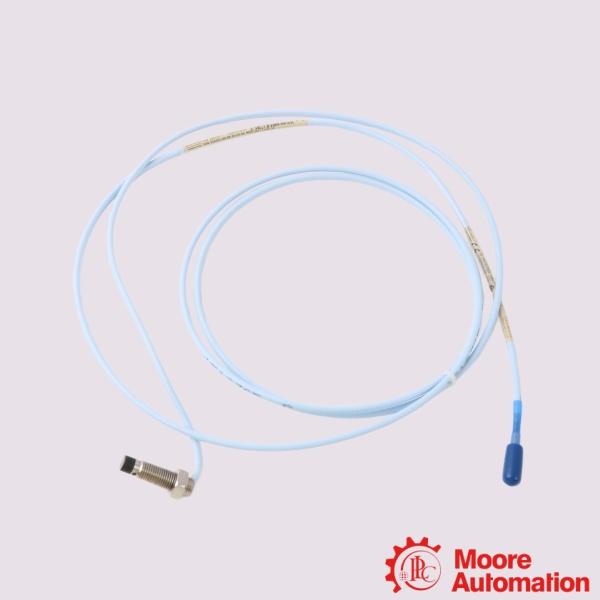

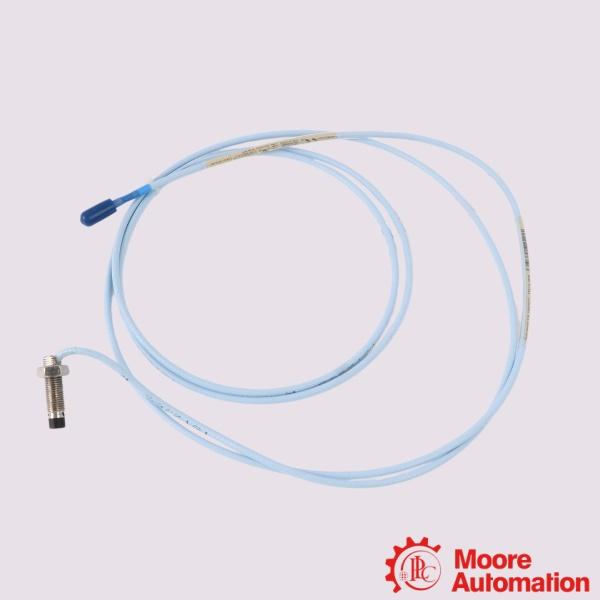

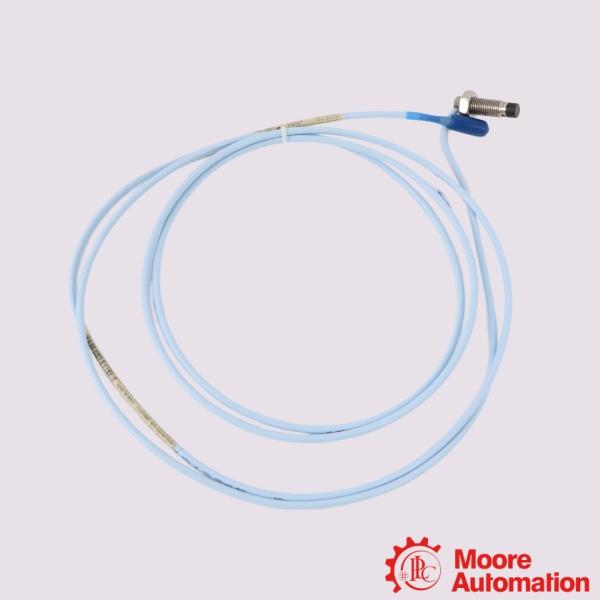

Bently Nevada 330101-XX-XX-10-02-05 MOD:147773-00-12 8 mm eddy-current proximity transducer

Parameter
Model: 330101-XX-XX-10-02-05 MOD:147773-00-12 8 mm eddy-current proximity transducer
Total Length Option: 10-1.0 meter (3.3 feet)
Connector and Cable-Type Option: 02-Miniature coaxial ClickLoc
connector, standard cable
Agency Approval Option: 05-CSA, ATEX, IECEx  Approvals
Operating Temperature (Probe Tip): -52°C to +177°C (-62°F to +350°F)
Thread Size: 3/8-24 UNF-2A (without armor configuration)

Description

The Bently Nevada 330101-XX-XX-10-02-05 MOD:147773-00-12 belongs to the 3300 XL 8 mm proximity transducer family and is supplied as a factory-configured probe for continuous shaft vibration and shaft position measurement on rotating equipment. This version is manufactured with a 3/8-24 UNF threaded probe body, a 1.0 m integral cable, Miniature ClickLoc connector (Option 02) and Agency Approval Option 05, making it suitable for installations requiring CSA, ATEX and IECEx certified equipment. The MOD:147773-00-12 designation identifies a factory modification applied before shipment so the probe matches the required system configuration while remaining compatible with the corresponding 3300 XL extension cable and Proximitor Sensor.Signal generation is based on the eddy-current operating principle used throughout the 3300 XL series. As the conductive shaft surface moves toward or away from the probe tip, the probe produces a changing signal that is processed by the matching Proximitor Sensor into a calibrated voltage output. When the complete transducer system is assembled using the specified probe, extension cable and sensor, it supplies repeatable shaft displacement information required for vibration monitoring, shaft position measurement and machinery protection. The TipLoc probe-tip construction together with the CableLoc cable retention design improves mechanical durability and helps maintain a secure cable connection in equipment exposed to continuous vibration and elevated operating temperatures.

Frequently asked questions

Q:What is the function of the 330101-XX-XX-10-02-05 MOD:147773-00-12?
A:It detects the distance between the probe tip and a conductive shaft surface, supplying the input signal required for shaft vibration and shaft position measurement when used with the matching extension cable and Proximitor Sensor.

Q:What thread type is used on this probe?
A:The 330101 series uses a 3/8-24 UNF threaded probe body without armor, making it suitable for standard mounting arrangements used on rotating machinery.

Q:What does the "10" total length option represent?

A:Option 10 specifies a 1.0 m (3.3 ft) total probe cable length. The selected cable length should always match the corresponding transducer system configuration.

Application areas

• Oil & Gas Processing Plants – Installed on compressors, pumps, and turbine-driven equipment throughout upstream and downstream processing facilities.
• Petrochemical Production Units – Applied to rotating equipment used in chemical processing, gas recovery, and refining operations.
• Power Generation Facilities – Used on steam turbines, boiler feed pumps, and generator drive systems operating with fluid-film bearings.
