Bently Nevada 330101-00-70-10-02-05 3300 XL 8 mm Proximity Probe

Description

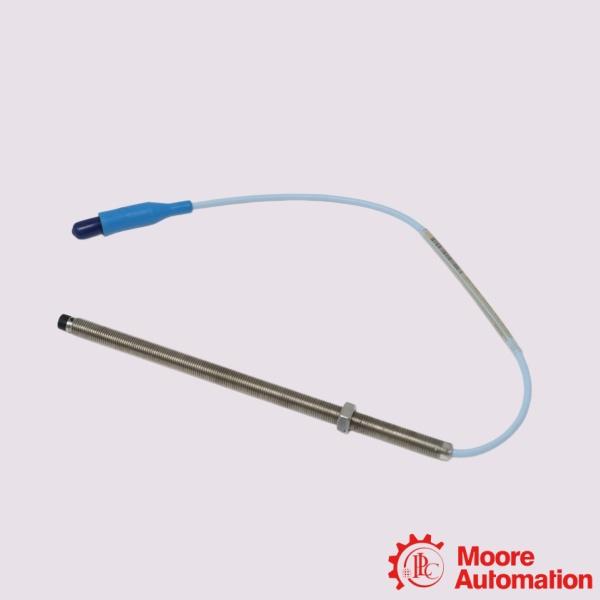

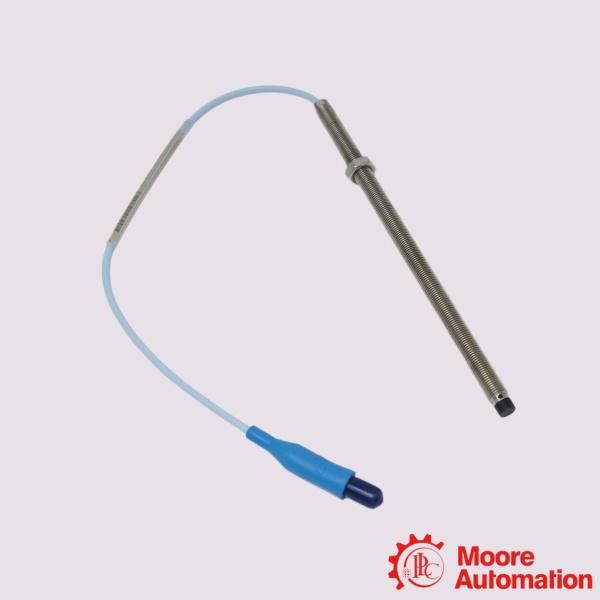

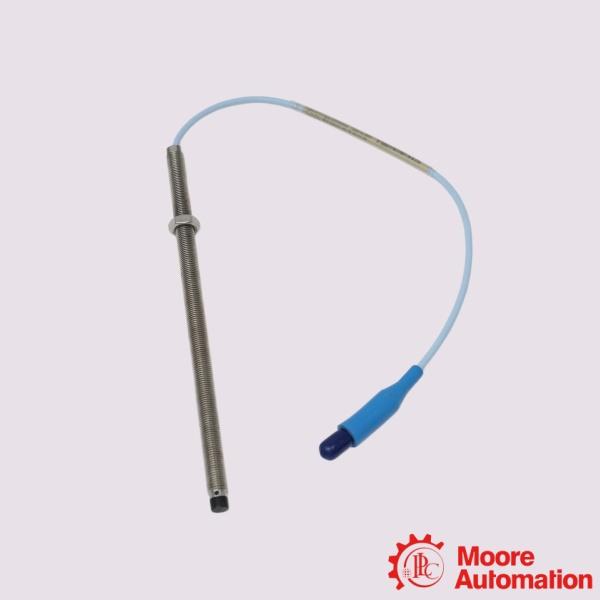

The Bently Nevada 330101-00-70-10-02-05 is a 3300 XL 8 mm Proximity Probe designed for non-contact measurement of shaft vibration and position on fluid-film bearing machines. This probe features a 3/8-24 UNF threaded body without armor, a 7.0-inch case length, and a 1.0-meter integral cable with a Miniature ClickLoc coaxial connector for secure installation. As part of the 3300 XL 8 mm Proximity Transducer System, it is used with a compatible extension cable and Proximitor Sensor to provide accurate static and dynamic displacement measurements. The probe incorporates TipLoc™ molding technology for a stronger bond between the probe tip and body while the patented CableLoc™ cable design improves cable retention and helps prevent cable pull-out.

Parameter

Model: 330101-00-70-10-02-05 3300 XL 8 mm Proximity Probe
Unthreaded Length Option: 00-0.0 in
Overall Case Length Option: 70-7.0 in
Total Length Option: 10-1.0 meter (3.3 feet)
Connector and Cable-Type Option: 02-Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option: 05-CSA, ATEX, IECEx  Approvals

Frequently asked questions

Q:What is the Bently Nevada 330101-00-70-10-02-05?
A:The Bently Nevada 330101-00-70-10-02-05 is a 3300 XL 8 mm Proximity Probe designed for non-contact measurement of shaft vibration and position in rotating machinery. It is part of the 3300 XL 8 mm Proximity Transducer System and is used together with a compatible extension cable and Proximitor Sensor.

Q:What measurements can the 330101-00-70-10-02-05 perform?
A:When used as part of a complete 3300 XL 8 mm system, it measures both static displacement (shaft position) and dynamic displacement (shaft vibration) by producing an output voltage proportional to the distance between the probe tip and the conductive target.

Q:Is the Bently Nevada 330101-00-70-10-02-05 compliant with API 670?
A:Yes, The standard 3300 XL 8 mm 5-meter system complies with the requirements of API Standard 670 for mechanical configuration, linear range, accuracy, and temperature stability.

Application areas

The Bently Nevada 330101-00-70-10-02-05 is the industry standard for non-contact shaft vibration, position, and speed monitoring on critical rotating machinery.

• Steam & Gas Turbines: Monitoring high-speed rotor dynamics, bearing housing vibration, and thermal expansion.
• Centrifugal Compressors: Tracking shaft stability and thrust position under high aerodynamic loads.
• Large Pumps & Fans: Continuous condition monitoring in power plants and water treatment facilities.
• Generators & Gearboxes: Measuring radial shaft vibration near the fluid-film bearings.
