Bently Nevada 31000-26-05-00-040-01-02 Proximity Probe Housing Assemblies

Description

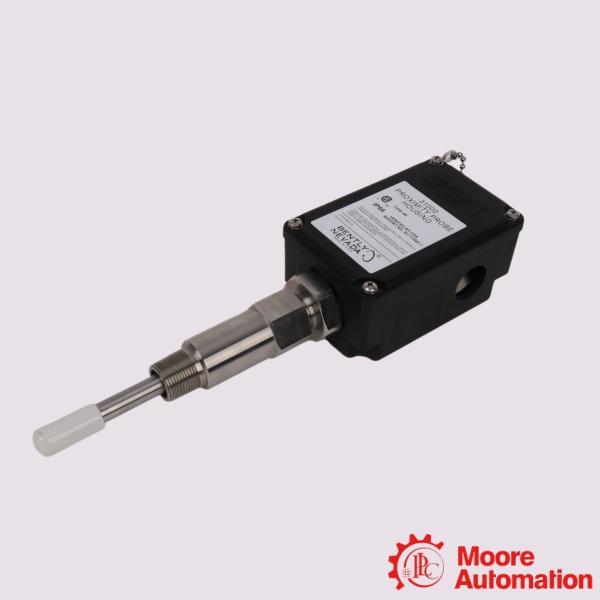

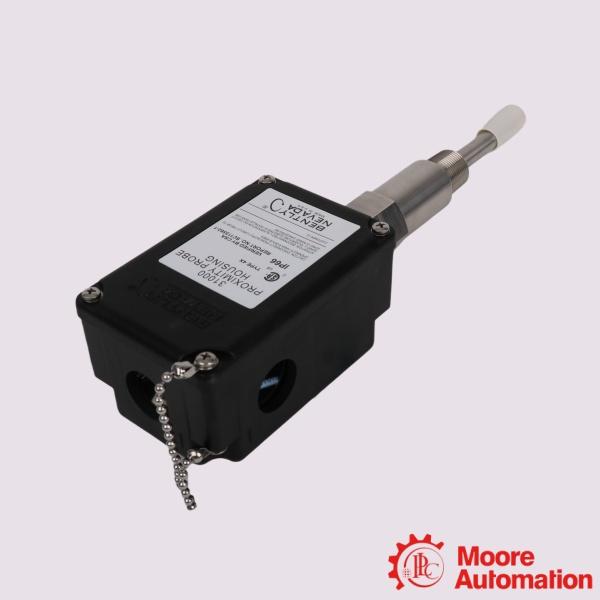

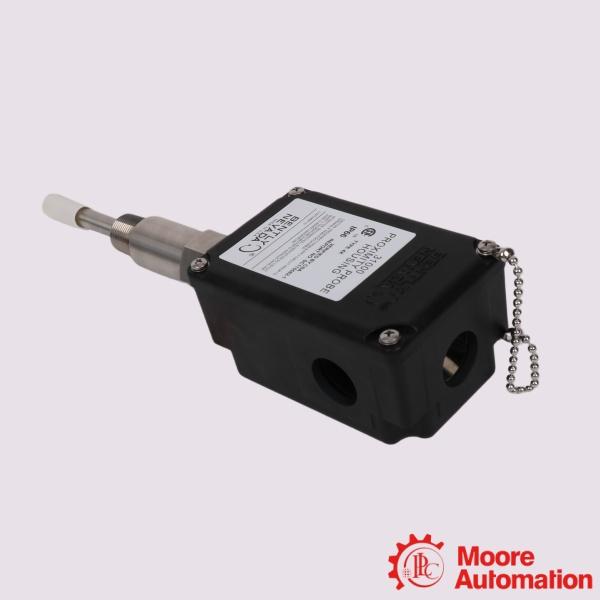

The Bently Nevada 31000-26-05-00-040-01-02 is an English-style proximity probe housing assembly designed to provide secure mounting and environmental protection for a 3300 XL NSv proximity probe. It includes a 0.5 m probe cable, a 4.0-inch probe penetration length, one M25 conduit fitting with two plugs, and a 3/4-14 NPT mounting thread for installation in industrial machinery.Manufactured from glass-reinforced polyphenylene sulfide (PPS) with corrosion-resistant stainless steel components, the housing allows external access to the probe and cable, making probe gap adjustment and replacement possible without disassembling the machine. It is commonly used for radial vibration and Keyphasor measurement applications and complies with API 670 requirements for externally mounted proximity probe housings. The housing provides mechanical and environmental protection but is not intended as an explosion-proof enclosure.

Parameter

Model: 31000-26-05-00-040-01-02 Proximity Probe Housing Assemblies
Probe with Connector: 26-3300 XL NSv probe
Probe Cable Length: 05-0.5 m (20 in)
Standoff Adapter Length (Option C Dimension): 00-No standoff adapter
Probe Penetration Option (Option D Dimension): 040-4.0 in (102 mm)
Fittings: 01-One 3/4-14 NPT fitting two plugs
Mounting Thread Option: 02-3/4-14 NPT (Required if ordering Standoff Adapter Option)

Frequently asked questions

Q:What is the Bently Nevada 31000-26-05-00-040-01-02 designed for?
A:It is a 31000 Series proximity probe housing assembly designed to mount a proximity probe through the machine case. It provides mechanical and environmental protection while allowing external access for probe gap adjustment and probe replacement. It is typically used for radially mounted transducers for vibration or Keyphasor® measurements.

Q:Is the 31000-26-05-00-040-01-02 explosion-proof?
A:No. The 31000 housing is intended to provide mechanical and environmental protection only.

Q:What conduit and mounting configuration does 31000-26-05-00-040-01-02 model include?
A:This configuration includes one M25 conduit fitting with two plugs and a 3/4-14 NPT mounting thread, according to the ordering options for this part number.

Application areas

The Bently Nevada 31000-26-05-00-040-01-02 is designed for mounting proximity probes through machine casings and is commonly used in rotating machinery monitoring systems, Typical application areas include:

• Radial shaft vibration monitoring: Non turbines compressors pumps motors and generators.
• Keyphasor® (speed and phase reference) measurements: for machinery protection and condition monitoring systems.
• Industrial environments: where external access is needed for probe gap adjustment or probe replacement without disassembling the machine.
• Intrinsically safe hazardous area applications: when installed with an approved transducer system and the appropriate intrinsic safety (I.S.) barriers.
