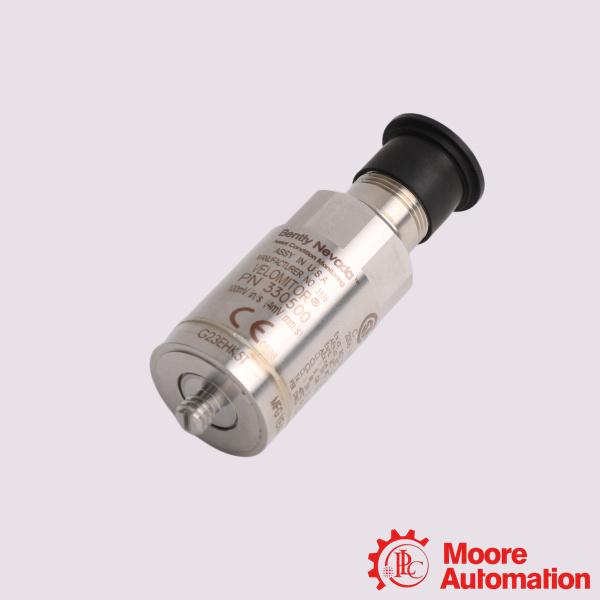

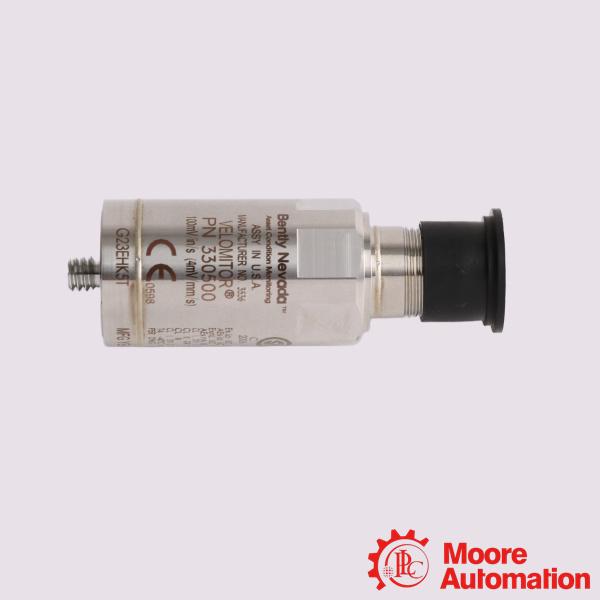

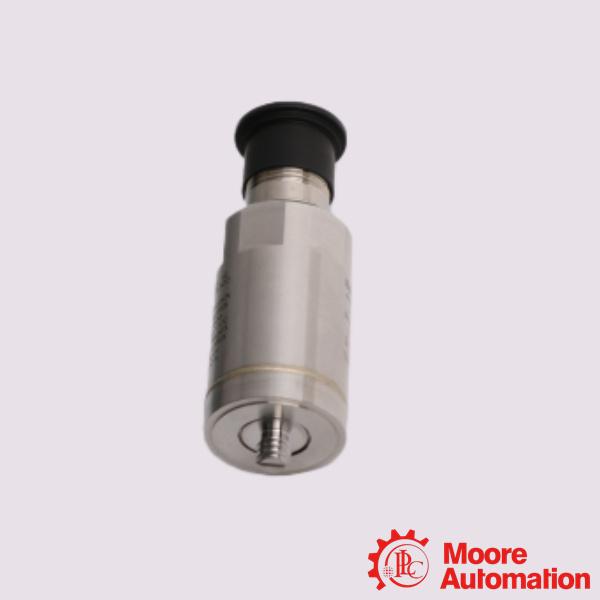

330500-04-02 | Bently Nevada Velomitor Piezo-velocity Sensor

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
7.2x2.4x2.4cm
Weight:
0.14kg
Country of Origin: :
USA
Description:
Bently Nevada 330500-04-02 Velomitor Piezo-velocity Sensor

Inquiry now

Mfr. Part Number:	330500-04-02

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330500-04-02 Velomitor Piezo-velocity Sensor

Full Description:	The 200350 Accelerometers are general purpose, case-mounted seismic transducers designed Card

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330500-04-02 Velomitor Piezo-Velocity Sensor is specifically engineered for absolute casing, structural, or bearing housing vibration monitoring in hazardous industrial environments. The model's specific part suffix denotes a 1/4-20 UNC mounting thread (-04) paired with global ATEX/IECEx hazardous area approvals (-02).Bently Nevada™ Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.

Application:

Oil & Gas Refineries: Used on critical extraction, pipeline, and refinement machinery where flammable gases are present.
Chemical & Petrochemical Processing: Ideal for monitoring corrosive or explosive atmosphere manufacturing processes.
Power Generation: Monitored on auxiliary machinery in nuclear, fossil fuel, or gas-fired power plants.
Water & Wastewater Treatment: Tracks machinery operating in wet, high-humidity, and potentially gas-hazardous lift stations.

Frequently Asked Questions (FAQ)

Q:What do the option numbers -04 and -02 mean?

A:The base model number 330500 represents the Velomitor. The first option (-04) defines a 1/4-20 UNC mounting thread adapter. The second option (-02) designates ATEX, IECEx, and multi-agency certifications for hazardous zones.
Q:Can I mount this sensor at an angle?
A:Yes, the solid-state design allows installation at any orientation (vertical, horizontal, or oblique) without losing calibration or performance.

Q: How tightly should the sensor be torqued during installation?
A:The recommended mounting torque is 32 to 46 kg-cm (24 to 40 in-lb). Exceeding this limit can distort the base and permanently damage the internal piezo element.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330500-04-02
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-14% to +7.5% typical over the operating temperature range
Velocity Range	1270 mm/s (50 in/s) peak
Transverse Sensitivity	Less than 5% of sensitivity
Amplitude Linearity	±2% to 152 mm/s (6 in/s) peak
Dynamic Output Impedance	Less than 2400 Ω
Grounding	Case isolated
Operating Temperature Range	-55°C to 121°C (-67°F to 250°F)
Shock Survivability	5,000 g peak, maximum
Mounting Thread Adaptor Option	1/4 - 20 UNC
Agency Approval Option	ATEX (European)
