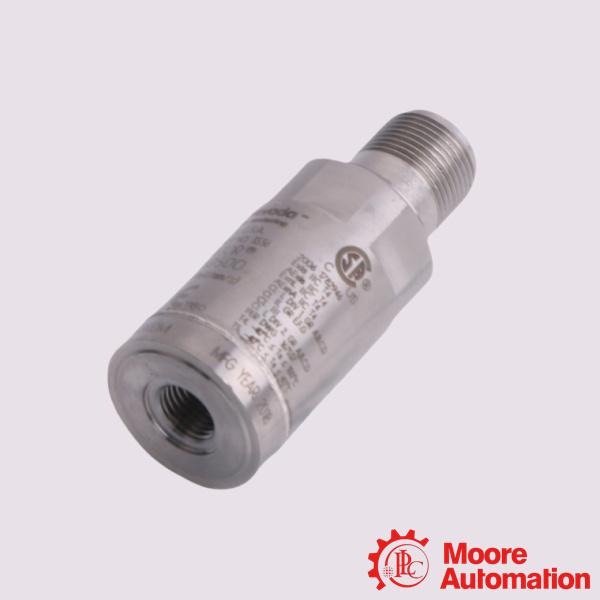

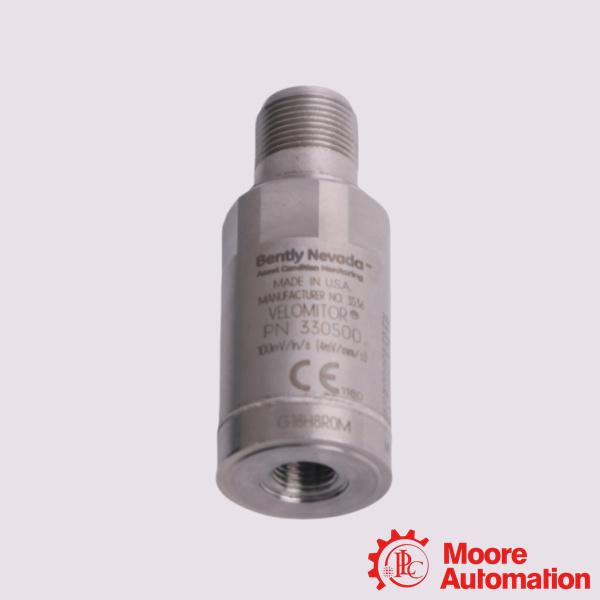

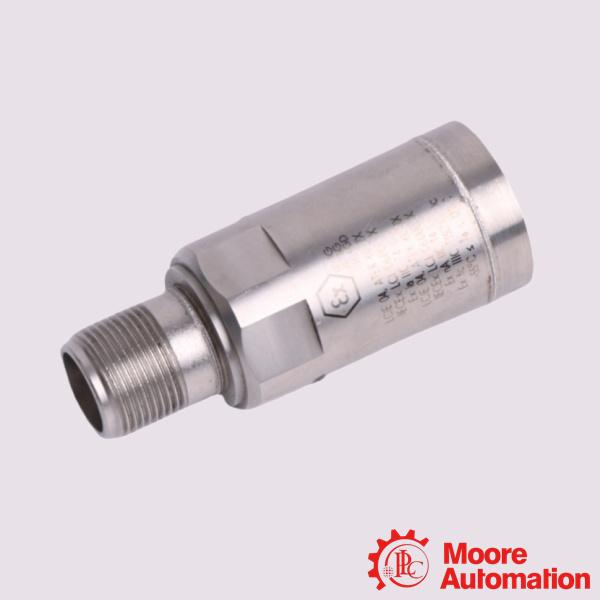

330500-03-04 | Bently Nevada Velomitor Piezo-velocity Sensor

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
6.2x2.4x2.4cm
Weight:
0.14kg
Country of Origin: :
USA
Description:
Bently Nevada 330500-03-04 Velomitor Piezo-velocity Sensor

Inquiry now

Mfr. Part Number:	330500-03-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330500-03-04 Velomitor Piezo-velocity Sensor

Full Description:	The 200350 Accelerometers are general purpose, case-mounted seismic transducers designed Card

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

TThe Bently Nevada 330500-03-04 is a configuration of the Velomitor Piezo-Velocity Sensor, a specialized solid-state instrument used to measure absolute casing, structural, or bearing housing vibration on critical industrial machinery.Bently Nevada™ Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design. Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation

Application:

Cooling Tower Fans: Identifying blade imbalances or gearbox degradation in high-humidity zones.
Boiler Feed Pumps: Surviving high thermal stresses while capturing mechanical looseness.
Forced Draft (FD) and Induced Draft (ID) Fans: Tracking structural resonance and aerodynamic imbalances.
Effluent Aerators and Blowers: Monitoring low-to-medium frequency vibrations indicative of bearing wear.

Frequently Asked Questions (FAQ)

Q:How does this sensor differ from standard moving-coil sensors?

A:Standard moving-coil velocity transducers (such as the Seismoprobe line) contain internal moving parts prone to mechanical wear. The Velomitor 330500 uses embedded solid-state electronics to integrate acceleration internally. Because it features no moving components, it can be mounted vertically, horizontally, or at any orientation angle without losing accuracy or suffering mechanical degradation
Q:Why select the "-04" dual-certification variant?
A:The "-04" suffix means it possesses both North American (CSA) and European/Global (ATEX/IECEx) intrinsic safety approvals. This allows global facilities to use the same spare parts kit for both domestic and international operations.

Q: Environmental & Certification Compliance
A:What environment is this model rated for?The case is hermetically sealed (316L stainless steel) and handles up to 100% non-submerged relative humidity. It operates in temperatures ranging from -55°C to +121°C (-67°F to +250°F)

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330500-03-04
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-14% to +7.5% typical over the operating temperature range
Velocity Range	1270 mm/s (50 in/s) peak
Transverse Sensitivity	Less than 5% of sensitivity
Amplitude Linearity	±2% to 152 mm/s (6 in/s) peak
Dynamic Output Impedance	Less than 2400 Ω
Grounding	Case isolated
Operating Temperature Range	-55°C to 121°C (-67°F to 250°F)
Shock Survivability	5,000 g peak, maximum
Mounting Thread Adaptor Option	1/4 - 28 UNF
Agency Approval Option	Multiple approvals (CSA, ATEX)
