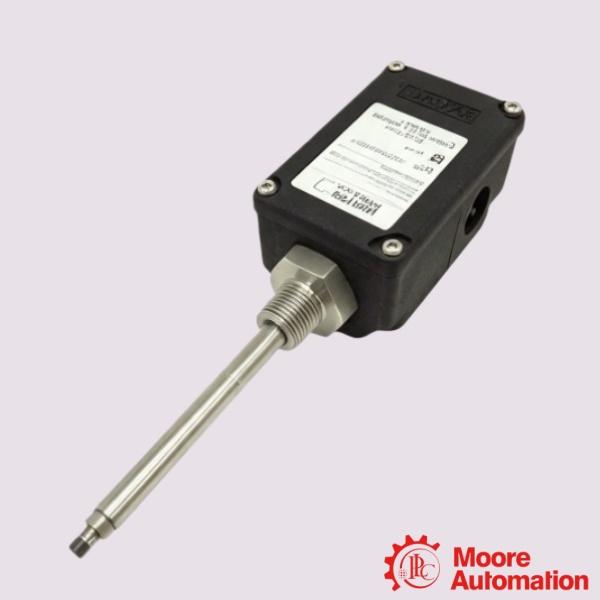

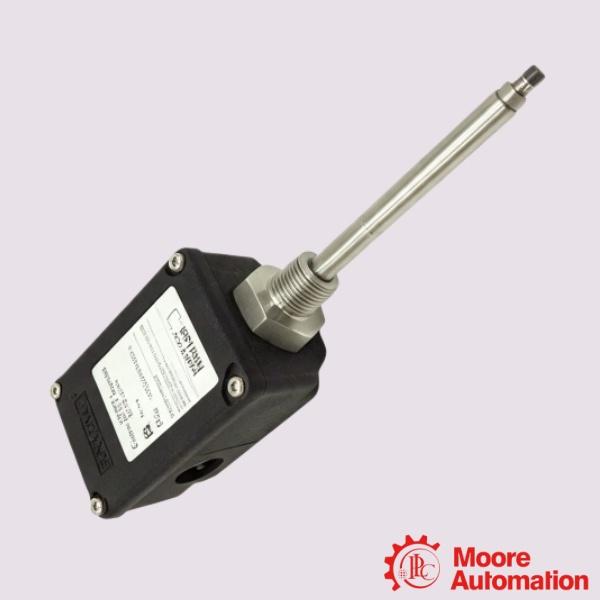

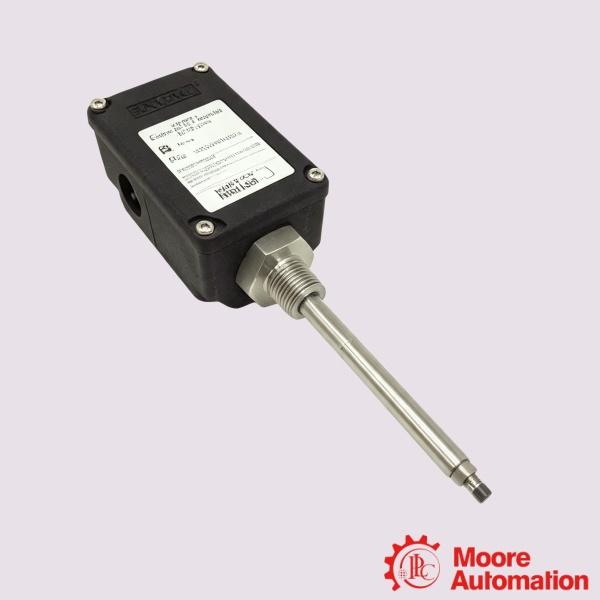

Bently Nevada 31000-00-00-15-047-01-02 proximity probe housing assembly

Description

The Bently Nevada 31000-00-00-15-047-01-02 is a 31000 Proximity Probe Housing Assembly designed to provide a secure mounting location and environmental protection for proximity probe installations through a machine casing. This configuration is supplied without a probe, probe cable, or standoff adapter, includes a 4.7-inch probe penetration option, one 3/4-14 NPT conduit fitting with two sealing plugs, and a 3/4-14 NPT mounting thread. Constructed from glass-reinforced polyphenylene sulfide (PPS) with corrosion-resistant stainless-steel components, it is intended for long-term use in demanding industrial environments. The assembly is typically used with radially mounted vibration or Keyphasor® transducers and is fully compliant with the requirements of API 670 for externally mounted proximity probe housings. When installed with an approved transducer system and appropriate intrinsic safety barriers, it can also be applied in intrinsically safe hazardous-area installations.

Parameter

Model: 31000-00-00-15-047-01-02 proximity probe housing assembly
Probe with Connector: 00-Probe not required
Probe Cable Length: 00-Probe cable not required (Option A must also be 00)
Standoff Adapter Length (Option C Dimension): 15-Minimum length 1.5 in (38 mm)
Probe Penetration Option (Option D Dimension): 047-4.7 in
Fittings: 01-One 3/4-14 NPT fitting, two plugs.
Mounting Thread Option: 02-3/4-14 NPT (Required if ordering Standoff Adapter Option).

Frequently asked questions

Q:What conduit connection does this model provide?
A:The 31000-00-00-15-047-01-02 configuration includes one 3/4-14 NPT conduit fitting and two sealing plugs, allowing flexible cable routing during installation.

Q:What measurements is this housing intended for?
A:It is primarily intended for radially mounted transducers used for shaft vibration and Keyphasor® reference measurements. For dual-probe axial position measurements, Baker Hughes recommends using the 21022 housing instead.

Q:Can this housing be used in hazardous areas?
A:Yes. When installed with an approved Bently Nevada transducer system and suitable intrinsic safety barriers, the housing assembly can be used in intrinsically safe hazardous-area applications. However, the housing itself is not explosion-proof.

Application areas

• Oil and Gas Industry – Installed on gas turbines, centrifugal compressors, and process pumps where externally mounted proximity probes are required. The housing protects the probe assembly while allowing probe gap adjustment and replacement without opening the machine.
• Power Generation – Used on steam turbines, generators, and boiler feed pumps to support shaft vibration and Keyphasor® monitoring. The housing provides a protected mounting arrangement for continuous machinery protection systems.
• Petrochemical and Refining – Applied to compressors, pumps, and other critical rotating equipment operating in continuous process units. It simplifies probe maintenance and helps minimize downtime during routine inspections.
• Chemical Processing – Suitable for rotating machinery in chemical plants where reliable probe installation and cable protection are required for long-term vibration monitoring and equipment condition assessment.
