Product Description:

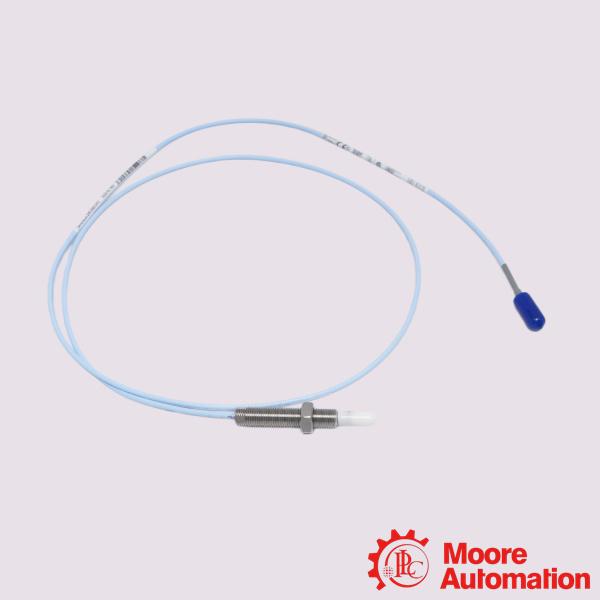

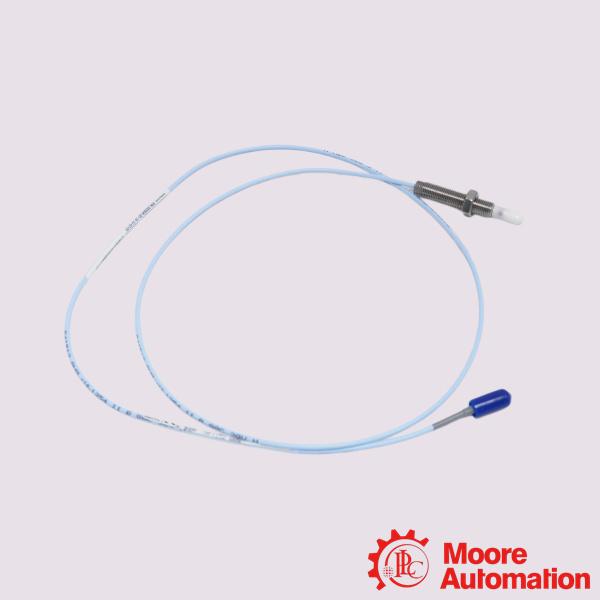

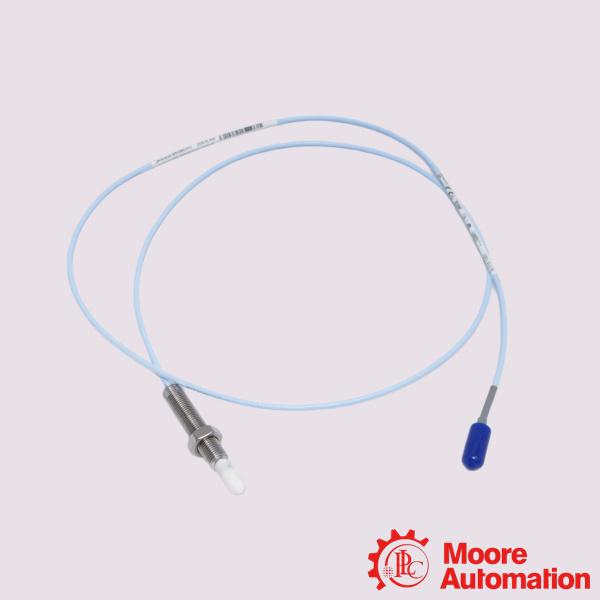

The Bently Nevada 330908-00-90-10-02-00 is a 3300 XL NSv proximity probe designed primarily for industrial condition monitoring and protection of critical rotating machinery. It is for "tight installation" scenarios where standard 5 mm or 8 mm sensors cannot fit due to space restrictions.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.

Frequently Asked Questions (FAQ)

Q:Which extension cables and sensors are compatible?

A:This 1.0-meter probe requires a system loop matching the Proximitor's design. If you use a standard 5-meter system, you must pair this probe with a 4.0-meter 330930 NSv extension cable and a 5-meter 330980 NSv Proximitor Sensor. The combined length of the probe and extension cable must always equal the sensor's rated total length.
Q:What is the target application for this probe?
A:The NSv (Narrow Side-view) system is engineered for tight installation environments where counterbore, rear-view, or side-view restrictions prevent using standard 5mm or 8mm probes. It is commonly deployed on centrifugal compressors, small turbines, gearboxes, and refrigeration units.

Q:What is the linear range and scale factor of this sensor system?
A:The 3300 XL NSv system offers a 1.5 mm (60 mils) linear range. Its Average Scale Factor (ASF) is 7.87 V/mm (200 mV/mil). Because of its specialized narrow side-view design, its linear range is shorter than standard 8 mm probes, but it provides much cleaner signals when surrounded by confined metal geometries.
