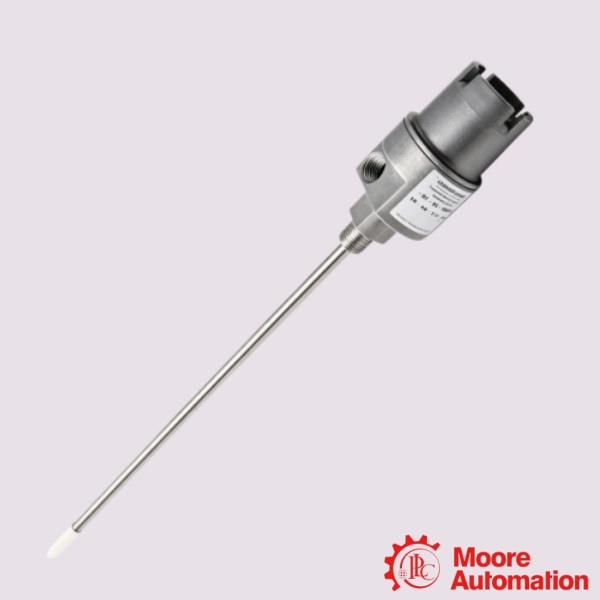

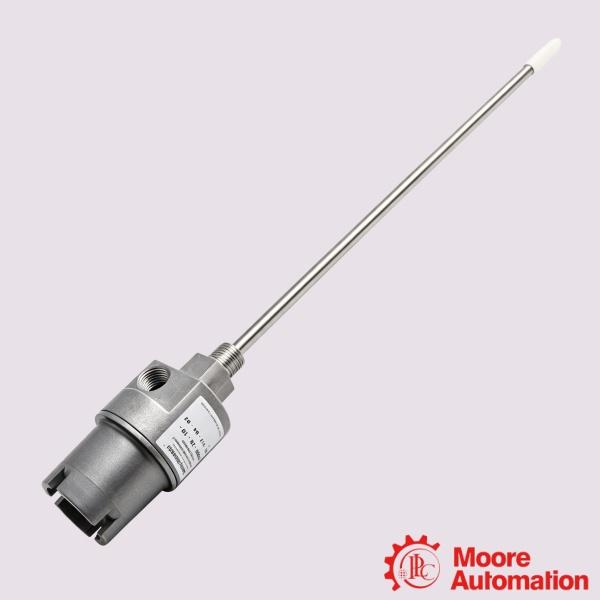

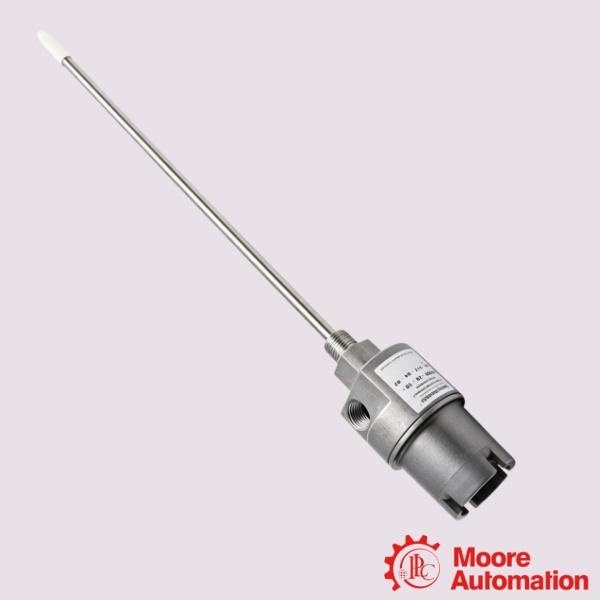

Bently Nevada 21000-00-00-60-028-02-02 Probe Housing Assembly

Description

The Bently Nevada 21000-00-00-60-028-02-02 is a 21000 Proximity Probe Housing Assembly designed for the external installation of proximity probes on rotating machinery. The housing assembly provides mechanical protection for the probe while allowing convenient access for probe adjustment and replacement without dismantling the machine. Its reverse-mounted design supports efficient maintenance and is intended for machinery protection systems that follow API 670 installation practices. This configuration is supplied without a proximity probe, probe cable, or standoff adapter. When combined with a compatible Bently Nevada 3300 Series or 3300 XL Proximity Transducer System, the housing provides a secure installation platform for continuous machinery condition monitoring while simplifying routine inspection and maintenance.

Parameter

Model: 21000-00-00-60-028-02-02 Probe Housing Assembly
Probe with Connector: 00-Probe not required
Probe Cable Length: 00-Probe cable not required
Standoff Adapter (Option C Dimension): 60-6.0 in
Probe Penetration (Option D Dimension): 028-2.8 in
Fittings: 02-Two 3/4-14 NPT explosion-proof fittings
Mounting Thread: 02-3/4-14 NPT

Frequently asked questions

Q:What does the "60-028" configuration indicate?
A:The 60 option specifies a 6.0-inch standoff adapter length, while the 028 option specifies a 2.8-inch probe penetration. This combination is intended for installations where the probe must reach the measurement target through a deeper machine casing.

Q:What fittings are included with Option 02?
A:Option 02 provides two 3/4-14 NPT explosion-proof conduit fittings. These fittings help route and protect the probe cable while supporting installations that require explosion-proof conduit connections.

Q:Does this configuration include a proximity probe?
A:No. This model is supplied without a proximity probe, probe cable, or standoff adapter. These components are ordered separately to match the specific transducer system and application requirements.

Application areas

• Power Generation Equipment – Installed on turbine generators, exciters, and other critical rotating assets. The housing forms part of the machinery protection system by providing a reliable installation for proximity probes used to monitor shaft movement and machine condition throughout continuous operation.
• Oil and Gas Processing Facilities – Used on process pumps, compressor trains, and auxiliary rotating machinery operating in upstream, midstream, and downstream applications. The external housing simplifies probe maintenance while protecting the transducer from industrial contaminants and mechanical damage.
• Chemical and Petrochemical Plants – Applied to high-speed compressors, pumps, and motor-driven process equipment where continuous shaft condition monitoring is required. The housing provides stable probe positioning and supports long-term operation in harsh production environments.
