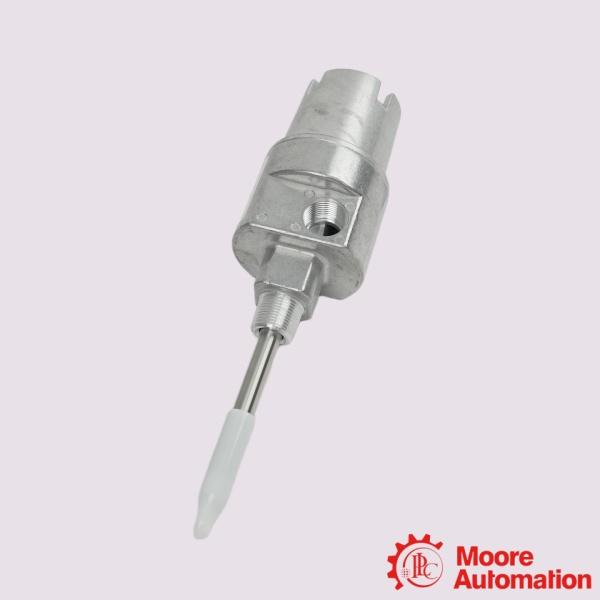

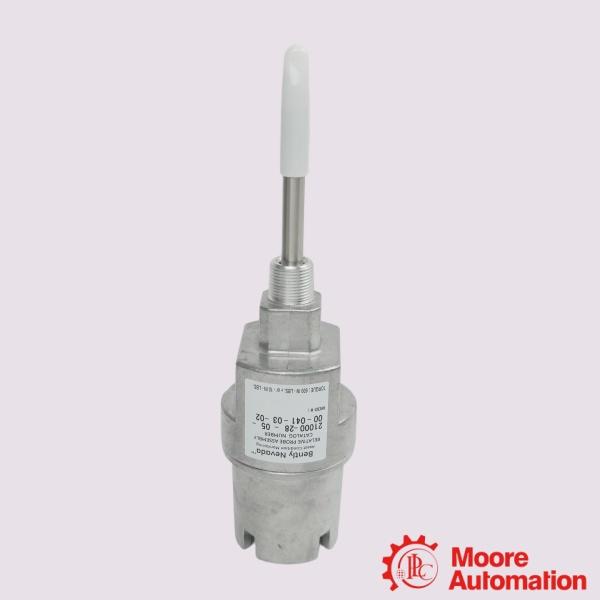

Bently Nevada 21000-00-00-15-226-03-02 Proximity Probe Housing Assembly

Description

The Bently Nevada 21000-00-00-15-226-03-02 is a 21000 Proximity Probe Housing Assembly designed to provide external mounting and protection for proximity probes used in rotating machinery monitoring systems. The housing assembly allows the probe to be installed through the machine casing while providing access for probe adjustment, inspection, and replacement without removing internal machine components. This configuration includes a 15-inch probe sleeve with a 2.26-inch probe penetration, allowing the proximity probe to be positioned at the required measurement location. The assembly is supplied with one conduit fitting and one plug and uses a 3/4-14 NPT mounting thread for connection to compatible machine installations. The 21000 series housing assembly provides mechanical support for externally mounted proximity probes and helps protect the probe and cable from the surrounding operating environment. The adjustable design allows proper probe positioning during installation while maintaining a stable mounting arrangement during machine operation. When installed with a compatible Bently Nevada proximity transducer system, the 21000-00-00-15-226-03-02 supports non-contact measurement applications including shaft vibration, shaft displacement, and position monitoring on rotating machinery.

Parameter

Model: 21000-00-00-15-226-03-02 Proximity Probe Housing Assembly
Probe with Connector: 00-Probe not required
Probe Cable Length: 00-Probe cable not required
Standoff Adapter (Option C Dimension): 15-Minimum length 1.5 in (38 mm)
Probe Penetration (Option D Dimension): 226-22.6 in
Fittings: 03-One 3/4-14 NPT plug
One 3/4-14 to 1/2-14 NPT reducer
One cable seal grip with grommets for
the following cable sizes:
• 1/8 to 3/16 inches
• 1/4 to 5/16 inches
• 5/16 to 3/8 inches
Mounting Thread: 02-3/4-14 NPT

Frequently asked questions

Q:Does the 21000-00-00-15-226-03-02 include a proximity probe?
A:No. This configuration is a housing assembly and does not include a proximity probe. The probe must be selected separately according to the application requirements.

Q:What is the purpose of the probe housing assembly?
A:The housing assembly provides a mechanical structure for externally mounting a proximity probe while allowing probe positioning, adjustment, and maintenance access without removing internal machine components.

Q:Why is an external probe housing used?
A:An external probe housing allows the proximity probe to be installed from outside the machine casing while providing protection and easier access for installation and adjustment.

Application areas

• Oil and Gas Facilities–Applied on rotating equipment such as turbines, compressors, pumps, and auxiliary machinery requiring reliable proximity probe installation.
• Petrochemical Plants–Supports monitoring systems installed on process machinery where non-contact shaft measurement is required.
• Power Generation Plants–Used in turbine-generator units and other critical rotating equipment for machinery protection and condition monitoring applications.
• Industrial Machinery Monitoring Systems–Provides a mounting solution for compatible Bently Nevada proximity probes used in continuous measurement of shaft vibration, shaft displacement, and machine position.
