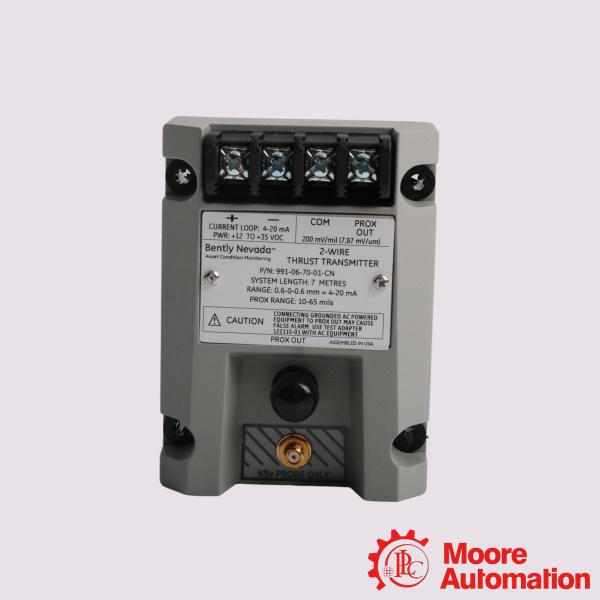

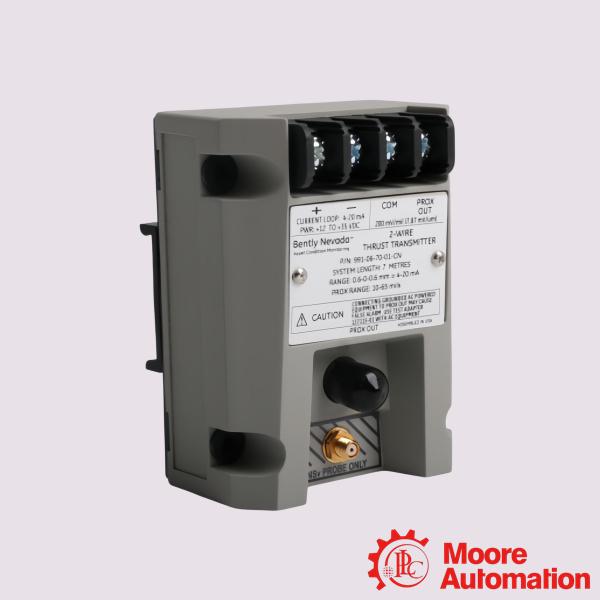

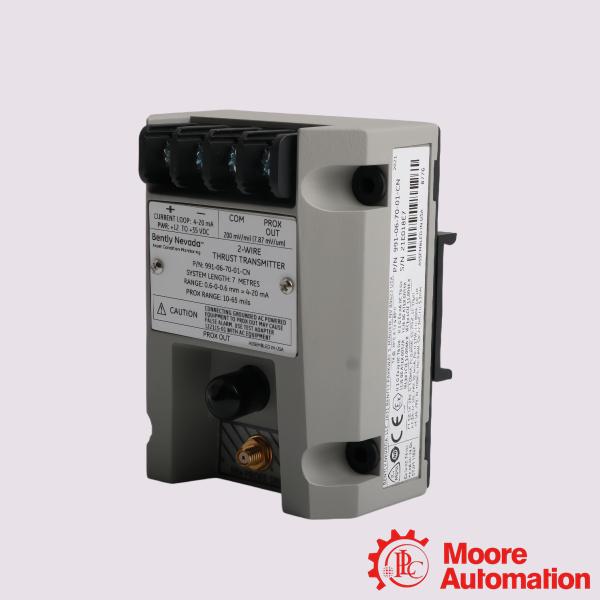

991-06-70-03-01 | Bently Nevada Thrust Transmitter

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
7.3x5.9x9.9cm
Weight:
0.46kg
Country of Origin: :
USA
Description:
Bently Nevada 991-06-70-03-01 Thrust Transmitter

Inquiry now

Mfr. Part Number:	991-06-70-03-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 991-06-70-03-01 Thrust Transmitter

Full Description:	The 991 Thrust Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 991-06-70-03-01 Thrust Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional axial displacement (thrust) signal as the input to their machinery control system. The transmitter is a 2-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options). The transmitter conditions the signal into appropriate engineering units proportional to the shaft’s axial position1, and provides it as a 4 to 20 mA industry-standard signal for input to the control system where machinery protection alarming and logic occurs.

Application:

Oil & Gas: Used on auxiliary skid-mounted rotating equipment in refineries, pipelines, and gas processing plants.
Chemical & Petrochemical Processing: Monitored on chemical transfer pumps and process air machinery where volatile gases may be present.
Power Generation: Applied to balance-of-plant (BOP) machinery such as boiler feed pumps and forced-draft fans.
Water & Wastewater Treatment: Integrated into high-capacity water distribution pumps and aeration blowers

Frequently Asked Questions (FAQ)

Q:What is the primary purpose of this transmitter?
A:It provides continuous, cost-effective axial position trending and protection. It converts proximity probe signals into a standard 4-20 mA loop current. This output integrates directly into PLCs or distributed control systems (DCS). It is primarily deployed on centrifugal air compressors featuring fluid-film thrust bearings.
Q:Does it require an external Proximitor sensor?
A:No. The unit features an integrated Proximitor sensor embedded directly into the transmitter housing. This layout eliminates the need for separate signal conditioning hardware.

Q:Which proximity probes are compatible?
A:It integrates exclusively with Bently Nevada 3300 NSv proximity probes and matching extension cables. The combined extension cable and probe length must match the 7.0-meter system configuration.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：991-06-70-03-01
Full-scale Option	0.6-0-0.6 mm
System Length Option	7.0 meters (23.0 feet)
Mounting Option	DIN clips and screws
Agency Approval Option	CSA Division 2
Power	Requires +12 to +35 Vdc input at the transmitter terminal.
Maximum Loop Resistance	1,000 Ω including cable at 35 Vdc
Current Limiting	23 mA typical
Operating Temperature	-35°C to +85°C (-31°F to +185°F)
Storage Temperature	-51°C to +100°C (-60°F to +212°F)
Transducer Tip Material	Polyphenylene sulfide (PPS)
Transducer Case Material	AISI 303 or 304 Stainless Steel (SST)
