990-05-70-03-CN | Bently Nevada Vibration Transmitter

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
9.8x7.3x5.8cm
Weight:
0.5kg
Country of Origin: :
USA
Description:

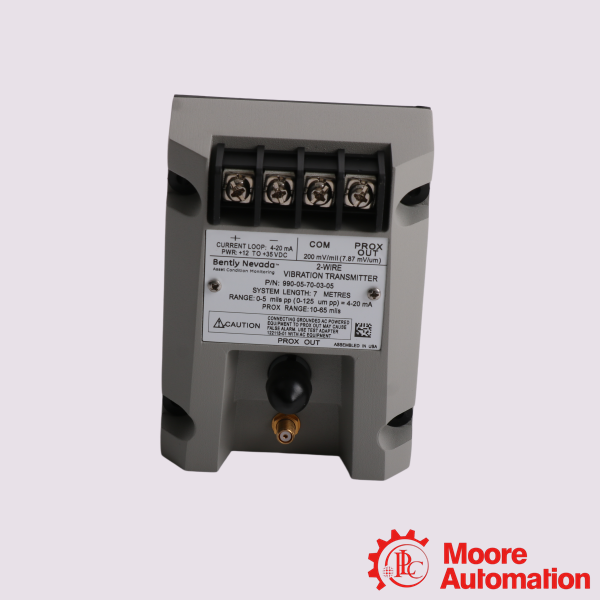

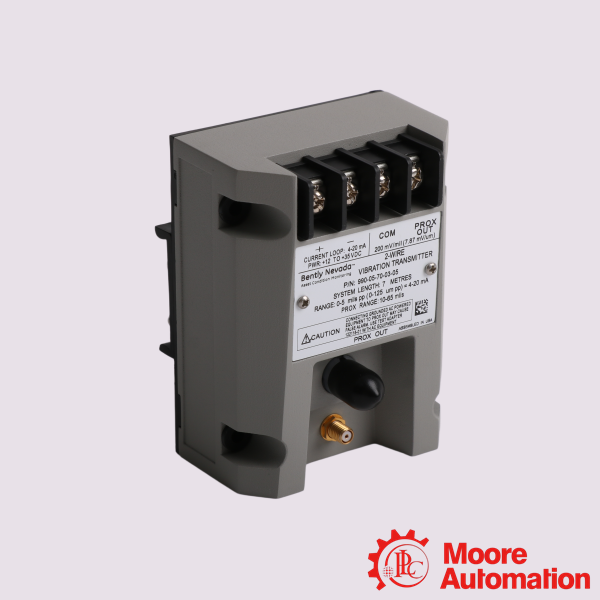

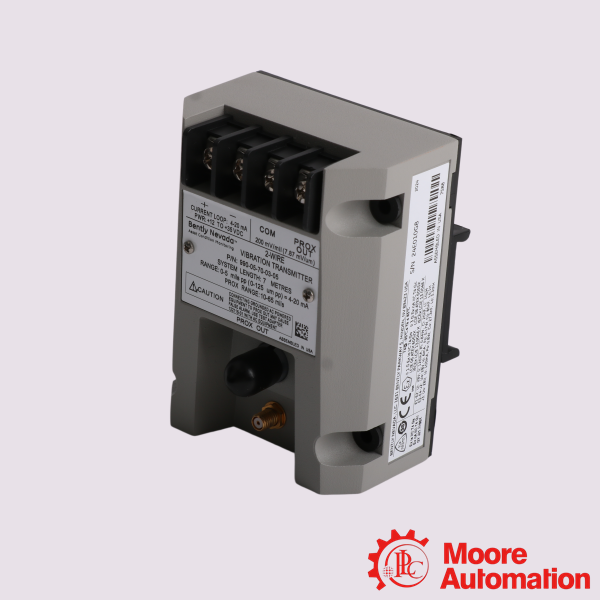

Bently Nevada 990-05-70-03-CN Vibration Transmitter

Inquiry now

Mfr. Part Number:	990-05-70-03-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 990-05-70-03-CN Vibration Transmitter

Full Description:	The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 990-05-70-03-CN Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system.The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).

Application:

Centrifugal Air Compressors: It is the industry standard for integration into OEM plant-air or process-gas compressor control panels to monitor high-frequency, small-clearance shaft vibration.
Small Pumps: Used to monitor radial vibration on auxiliary, boiler feed, or cooling fluid pumps
Industrial Motors: Tracks rotor imbalance, shaft misalignment, or bearing degradation in electric motors driving critical plant processes.
Industrial Fans and Blowers: Monitors structural and aerodynamic unbalances in ventilation, exhaust, and draft fans.

Frequently Asked Questions (FAQ)

Q:What is the frequency response of the 990 system?
A:The device features a wide frequency response range from 5 Hz to 6,000 Hz (±0.3 dB), allowing it to capture high-speed micro-vibrations.
Q:What sensor does this transmitter require?
A:It is specifically designed to interface with a non-contacting 3300 NSv proximity probe and its matching extension cable.

Q:Does it require an external Proximitor sensor unit?
A:No. It has an integrated Proximitor sensor built directly into the housing, which eliminates the need for separate signal conditioning hardware

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：990-05-70-03-CN
Full-scale Option	0-5 mils pp (0-125 μm pp)
System Length Option	7.0 meters (23.0 feet)
Mounting Option	DIN clips and screws
Maximum loop resistance	1,000 Ω including cable at 35 Vdc
Current limiting	23 mA typical
Frequency response	5 Hz to 6,000 Hz +0, 3 dB
Operating temperature	-35°C to +85°C(-31°F to +185°F)
Storage temperature	-52°C to +100°C(-62°F to +212°F)
Transducer tip material	Polyphenylene sulfide (PPS)
Transducer case material	AISI 303 or 304 Stainless Steel (SST)
