9200-09-02-10-00 | Bently Nevada Two-wire Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
5.4x4x9.5cm
Weight:
0.48kg
Country of Origin: :
USA
Description:
Bently Nevada 9200-09-02-10-00 Two-wire Transducer

Inquiry now

Mfr. Part Number:	9200-09-02-10-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 9200-09-02-10-00 Two-wire Transducer

Full Description:	Bently Nevad Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

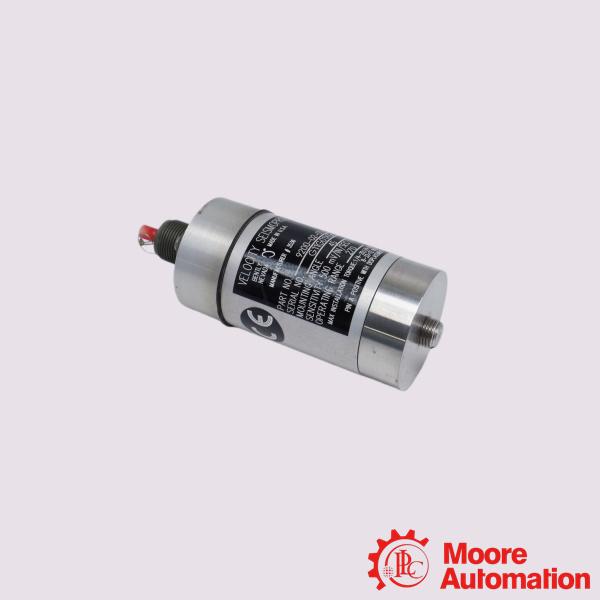

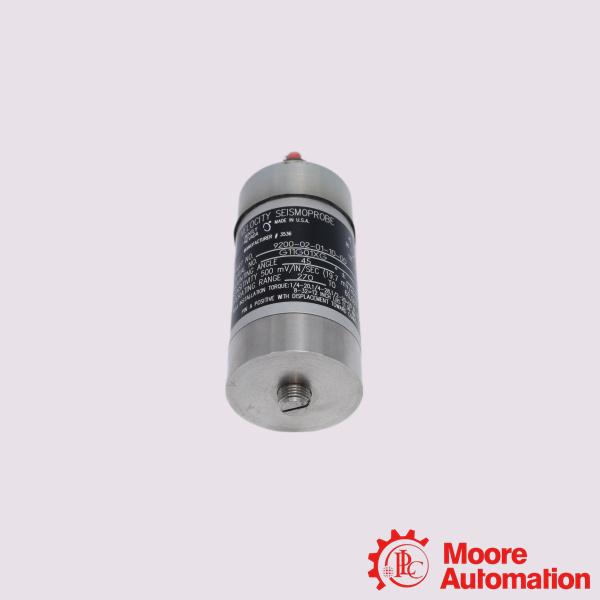

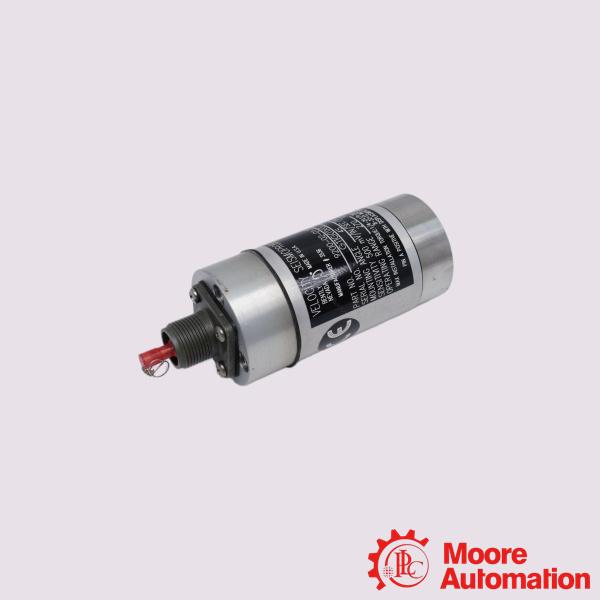

The Bently Nevada 9200-09-02-10-00 is a two-wire moving-coil Seismoprobe Velocity Transducer primarily designed for casing, structural, and bearing housing absolute vibration monitoring across heavy industries.The Seismoprobe family of velocity transducers is a two-wire design that uses moving-coil technology. It provides a voltage output directly proportional to the transducer's vibration velocity.

Application:

Gas & Steam Turbines: Monitoring absolute vibration on bearing structures.
Hydroelectric Generators: Assessing lower frequency casing movements.
Cooling Tower Fans: Protecting massive overhead fan assemblies against structural unbalance.
Centrifugal Compressors: Heavy-duty casing vibration verification.

Frequently Asked Questions (FAQ)

Q:What is the maximum distance I can run signal cabling?

A:You can install up to a maximum of 305 meters (1,000 feet) of field wiring between the 9200 transducer and your continuous monitoring system (such as the Bently Nevada 3300 or 3500 rack). For runs exceeding this length, you must consult the manual to calculate the high-frequency signal roll-off caused by cable capacitance.
Q:What are the environmental operating limits?
A:The standard 9200 housing supports an operating temperature range of –29°C to +121°C (–20°F to +250°F). It is dust and moisture resistant, maintaining up to 95% non-condensing relative humidity.The standard 9200 series can reliably operate within a temperature window of -29°C to +121°C (-20°F to +250°F). It is dust and moisture resistant. If your process demands high-temperature monitoring up to +204°C, Bently Nevada recommends upgrading to the 74712 series.

Q: Does the 9200-09-02-10-00 require external power?
A:No. Because it relies on passive moving-coil electromagnetic induction, it operates without any external loop power. This makes it ideal for portable data collectors or simple standalone diagnostic meters.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：9200-09-02-10-00
Connector/Cable Option	Top Mount (no cable)
Cable operating temperature	-50˚C to 120˚C
Sensitivity Temperature Coefficient	0.2%/°C
Coil Resistance	1.25 kΩ ±5%
Locked Coil Inductance	125 mH, typical
Gasket Material	Neoprene
Minimum length	2.0 ft (0.6 m)
maximum length	99 ft (30 m)
Mounting Base Option	Circular; M10X1 stud
Agency Approval Option	No Approvals
