9200-09-01-10-00 | Bently Nevada Two-wire Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
4x4x10.5cm
Weight:
0.44kg
Country of Origin: :
USA
Description:
Bently Nevada 9200-09-01-10-00 Two-wire Transducer

Inquiry now

Mfr. Part Number:	9200-09-01-10-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 9200-09-01-10-00 Two-wire Transducer

Full Description:	Bently Nevad Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

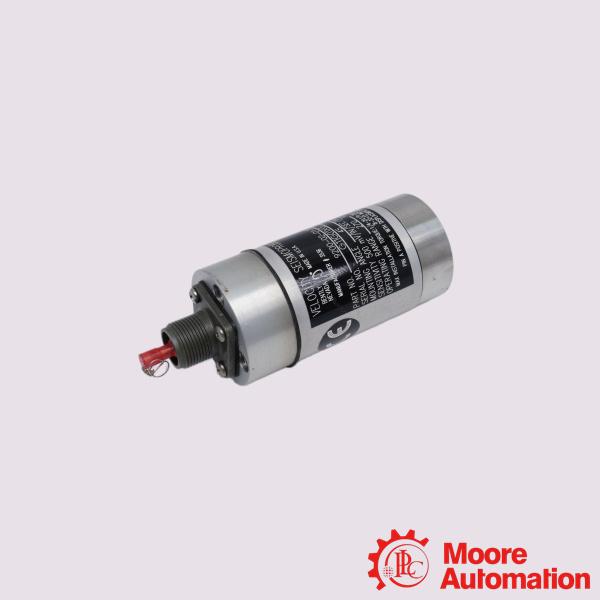

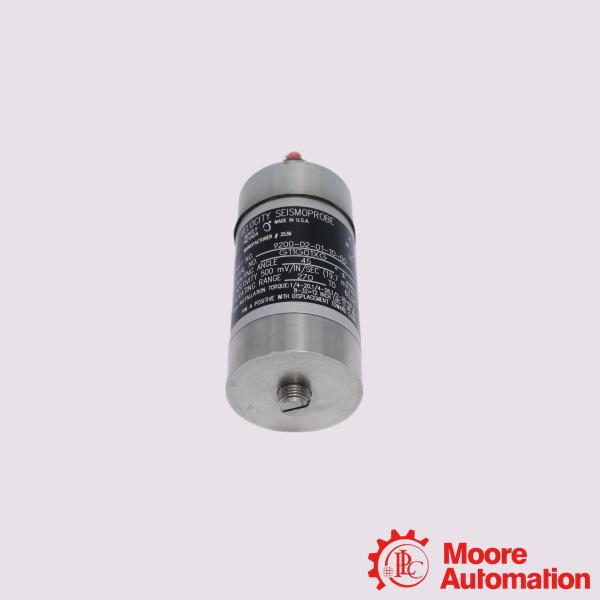

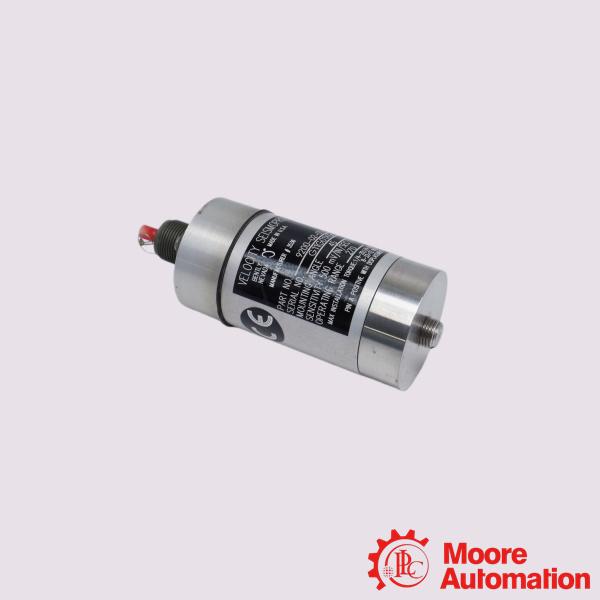

The Bently Nevada 9200-09-01-10-00 is a two-wire moving-coil Seismoprobe velocity transducer designed primarily to measure absolute machine casing, structural, and bearing housing vibration in medium-to-low speed industrial machinery.Bently Nevada Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The two-wire systems consist of a transducer and appropriate cable.

Application:

Gas & Steam Turbines: Monitors structural casing vibration and bearing cap health.
Industrial Alternators & Generators: Tracks unbalanced forces or structural looseness.
Centrifugal & Axial Compressors: Deployed on external casings to catch rotor imbalances or misalignment.
Large Process Pumps: Tracks structural resonances and fluid-induced vibrations.

Frequently Asked Questions (FAQ)

Q:What is the core technology used by this sensor?

A:It uses self-powered moving-coil technology. It generates its own voltage signal directly proportional to vibration velocity without requiring an external power supply.
Q:What are the temperature and environmental operating boundaries?
A:The standard 9200 housing supports an operating temperature range of –29°C to +121°C (–20°F to +250°F). It is dust and moisture resistant, maintaining up to 95% non-condensing relative humidity.

Q:Does this unit require regular field calibration?
A:No, the 9200-09-01-10-00 arrives factory calibrated to its specific alignment profile and does not need adjustments prior to plant deployment.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：9200-09-01-10-00
Connector/Cable Option	Top Mount (no cable)
Cable operating temperature	-50˚C to 120˚C
Sensitivity Temperature Coefficient	0.2%/°C
Coil Resistance	1.25 kΩ ±5%
Locked Coil Inductance	125 mH, typical
Gasket Material	Neoprene
Minimum length	2.0 ft (0.6 m)
maximum length	99 ft (30 m)
Mounting Base Option	Circular; M10X1 stud
Agency Approval Option	No Approvals
