Product Description:

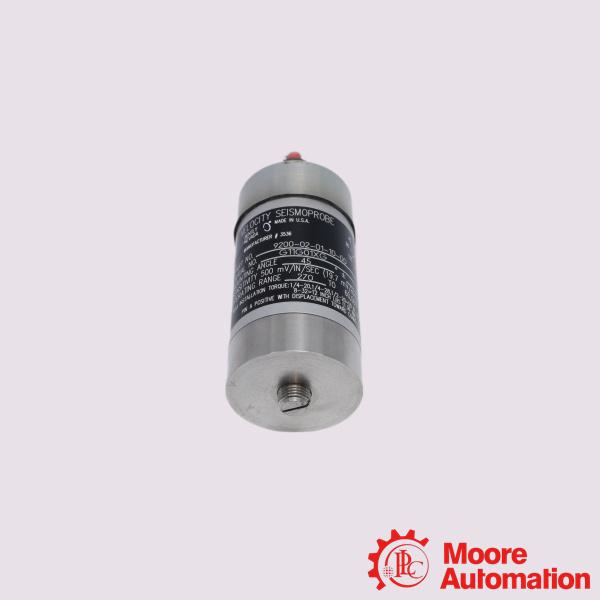

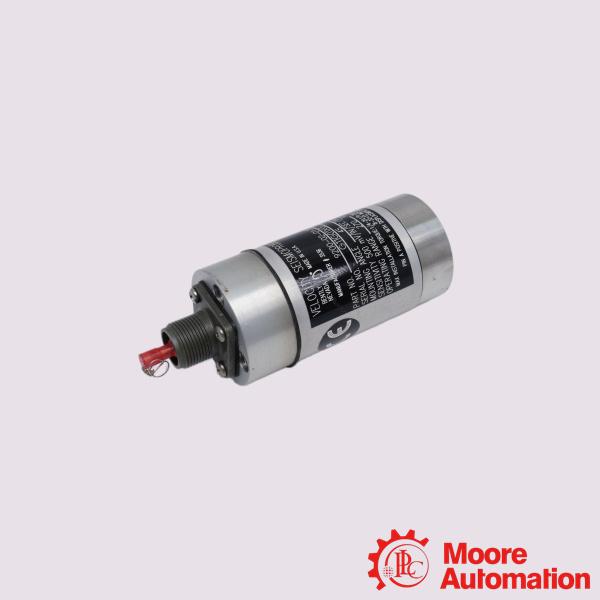

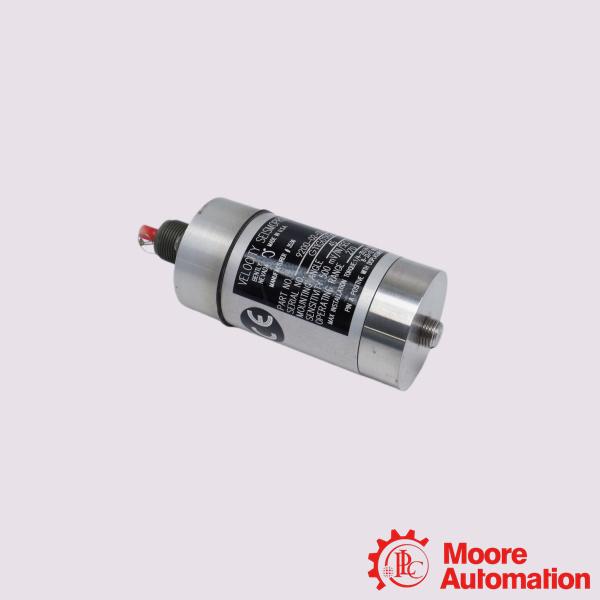

The Bently Nevada 9200-09-05-10-00 is a dual-wire seismic probe velocity sensor primarily used for vibration monitoring of low- to medium-speed rotating machinery. Its moving-coil design requires no external power supply, making it particularly suitable for self-powered continuous monitoring and portable field diagnostics. The Bently Nevada seismic probe velocity sensor system measures the absolute vibration of bearing housings, casings, or structures relative to free space. This dual-wire system consists of a sensor and a matching cable. The seismic probe series velocity sensors utilize dual-wire moving-coil technology, with the output voltage proportional to the sensor's vibration velocity.

Frequently Asked Questions (FAQ)

Q:What is the electrical sensitivity of this transducer?

A:The standard scale factor for the 9200 series is 20 mV/mm/s (500 mV/in/s) ±5% when properly terminated with a standard 10 kΩ load.
Q:What are the electrical connection requirements for the "05" option?
A:The 05 option provides a terminal block built directly onto the top mount of the transducer housing. Instead of requiring a proprietary Bently Nevada molded connector cable, field technicians can wire standard twisted-pair shielded cabling directly to the terminal screws. Pin A provides a positive signal relative to Pin B when the chassis undergoes a velocity motion directed towards the connector.

Q: What does the "09" mounting angle option mean for installation?
A:The 09 option code designates an omnidirectional operating orientation (0 ±180°). This means the sensor can be mounted vertically upwards, vertically downwards, horizontally, or at any inverted angle in between while maintaining calibrated accuracy. However, note that its minimum frequency limits push up to 15 Hz (900 cpm) compared to the 4.5 Hz limit found on strict vertical or horizontal variations.
