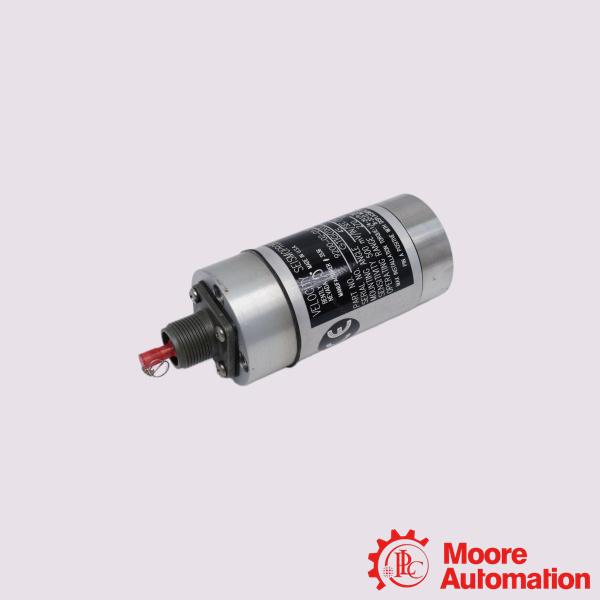

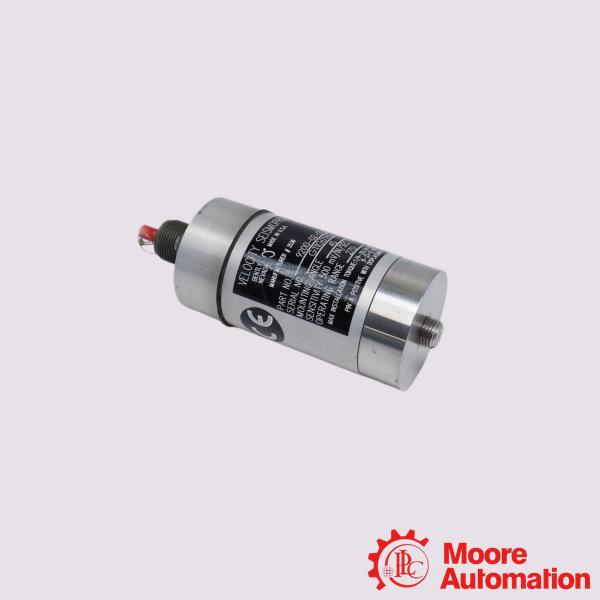

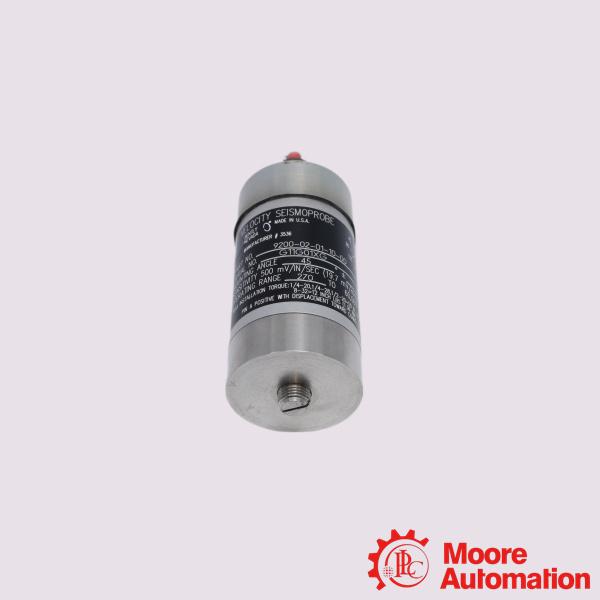

9200-09-01-02-00 | Bently Nevada Two-wire Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
4x4x10.5cm
Weight:
0.44kg
Country of Origin: :
USA
Description:
Bently Nevada 9200-09-01-02-00 Two-wire Transducer

Inquiry now

Mfr. Part Number:	9200-09-01-02-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 9200-09-01-02-00 Two-wire Transducer

Full Description:	Bently Nevad Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 9200-09-01-02-00 is a two-wire Seismoprobe Velocity Transducer utilizing moving-coil technology to measure absolute casing, structural, or bearing housing vibration on rotating machinery. It generates its own voltage output proportional to vibration velocity and requires no external power source.Bently Nevada™ Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The two-wire systems consist of a transducer and appropriate cable.

Application:

Power Generation: Monitoring structural casings and bearing pedestals on large steam/gas turbines, generators, and industrial heat exchangers.
Oil & Gas / Petrochemical: Assessing the vibration signatures of massive centrifugal compressors, main pipelines, and multi-stage process pumps.
Water & Wastewater Treatment: Measuring structural and casing vibrations on high-capacity water pumps, fluid mixers, and large electric drive motors.
Pulp, Paper & Mining: Evaluating large material handling conveyors, draft fans, and heavy-duty crushing or milling machinery vulnerable to recurring physical impacts

Frequently Asked Questions (FAQ)

Q:What type of technology does this transducer use?

A:It uses a moving-coil design. This mechanical structure is naturally less sensitive to impact, impulse spikes, or high-frequency transient noise compared to solid-state sensors with integrated electronics.
Q:Does the 9200-09-01-02-00 require external power?
A:No. It is a self-generating sensor. The internal moving coil passing through a magnetic field creates its own voltage output, making it highly convenient for portable data collectors and remote testing environments.

Q:What is the exact output sensitivity?
A:The sensor provides an electrical sensitivity of 20 mV/mm/s (500 mV/in/s) within a ±5% variance, provided it is properly oriented and terminated into a 10 kΩ load.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：9200-09-01-02-00
Connector/Cable Option	Top Mount (no cable)
Cable operating temperature	-50˚C to 120˚C
Sensitivity Temperature Coefficient	0.2%/°C
Coil Resistance	1.25 kΩ ±5%
Locked Coil Inductance	125 mH, typical
Gasket Material	Neoprene
Minimum length	2.0 ft (0.6 m)
maximum length	99 ft (30 m)
Mounting Base Option	Circular; 1/4-28 UNF stud
Agency Approval Option	No Approvals
