9200-03-01-10-00 | Bently Nevada Two-wire Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
10x4x4cm
Weight:
0.44kg
Country of Origin: :
USA
Description:

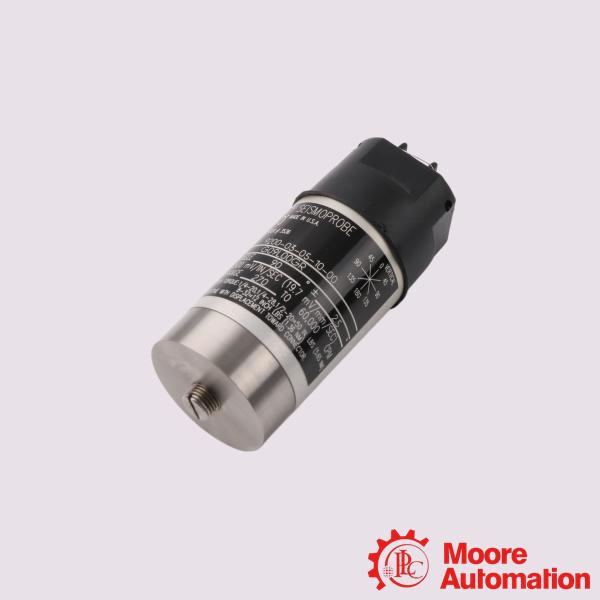

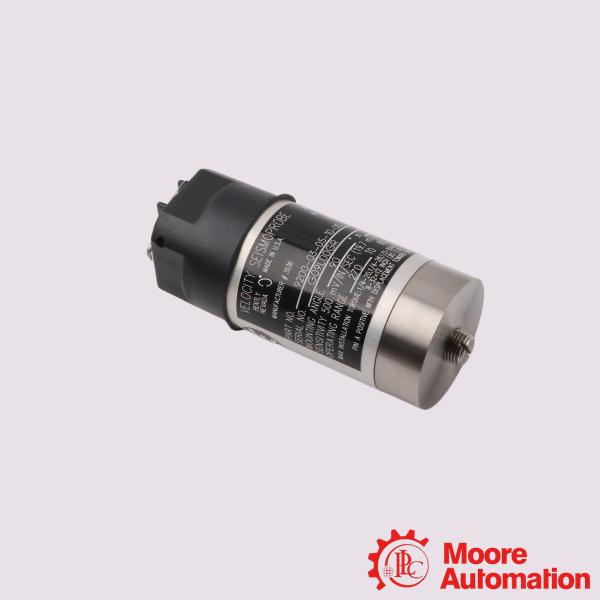

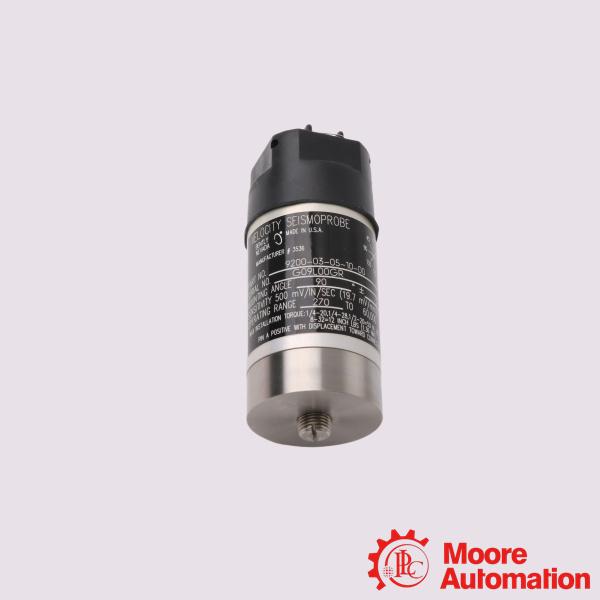

Bently Nevada 9200-03-01-10-00 Two-wire Transducer

Inquiry now

Mfr. Part Number:	9200-03-01-10-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 9200-03-01-10-00 Two-wire Transducer

Full Description:	Bently Nevad Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 9200-03-01-10-00 is a two-wire moving-coil Seismoprobe velocity transducer designed for continuous vibration monitoring or periodic diagnostics on industrial machinery.Bently Nevada™ Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The two-wire systems consist of a transducer and appropriate cable. The Seismoprobe family of velocity transducers is a two-wire design that uses moving-coil technology. It provides a voltage output directly proportional to the transducer's vibration velocity.

Application:

Large Steam and Gas Turbines: Monitors structural case expanding and casing absolute vibrations.
Hydroelectric Generators: Tracks vertical low-frequency bearing housing degradation.
Industrial Alternators and Exciters: Detects structural unbalance or structural looseness
Heavy-Duty Centrifugal Compressors: Performs continuous casing casing health tracking.

Frequently Asked Questions (FAQ)

Q:What is the sensor's sensitivity?

A:It provides a standard output signal of 20 mV/mm/s (500 mV/in/s) ±5% when properly terminated and oriented at its exact calibration angle.
Q:What is the frequency response?
A:The frequency range spans from its minimum operating threshold of 4.5 Hz up to 1 kHz (60,000 cpm).

Q:Does it require an external power supply?
A:No. Because it relies on internal moving-coil technology, it generates its own voltage proportional to vibration velocity. This makes it ideal for portable data collectors as well as permanent monitors.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：9200-03-01-10-00
Cable operating temperature	-50˚C to 120˚C
Sensitivity Temperature Coefficient	0.2%/°C
Coil Resistance	1.25 kΩ ±5%
Locked Coil Inductance	125 mH, typical
Gasket Material	Neoprene
Minimum length	2.0 ft (0.6 m)
maximum length	99 ft (30 m)
Mounting Base Option	Circular; M10X1 stud
Agency Approval Option	No Approvals
