in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
10x4x4cmWeight:
0.44kgCountry of Origin: :
USADescription:
Bently Nevada 9200-03-02-10-00 9571-35 Two-wire Transducer
| Mfr. Part Number: |
9200-03-02-10-00 9571-35 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The Seismoprobe family of velocity transducers is a two-wire design that uses moving-coil technology. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

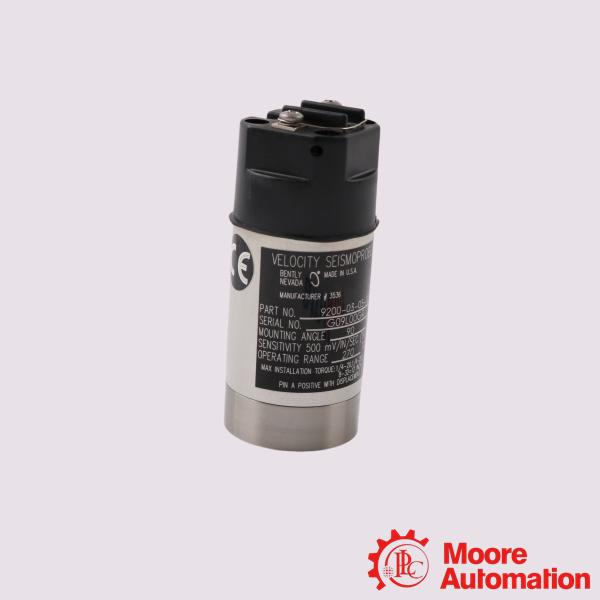

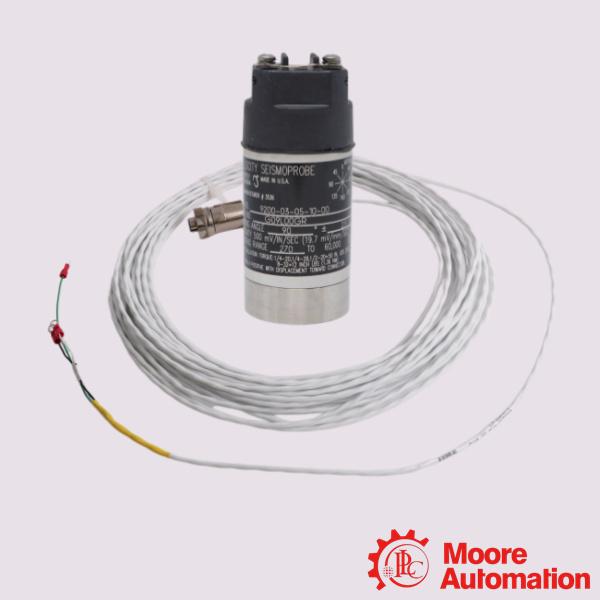

The industrial part numbers 9200-03-02-10-00 and 9571-35 correspond to the Bently Nevada 9200 Seismoprobe Velocity Transducer System, an industry-standard heavy-duty industrial vibration sensor.Bently Nevada Seismoprobe Velocity Transducer Systems are measure absolute (relative to free space) bearing housing, casing, or structural vibration. The two-wire systems consist of a transducer and appropriate cable. The Seismoprobe family of velocity transducers is a two-wire design that uses moving-coil technology. It provides a voltage output directly proportional to the transducer's vibration velocity.
Application:
Steam and Gas Turbines: Monitors structural and casing vibrations on larger, low-speed turbines to spot balance issues or bearing degradation.
Hydroelectric Generators: Fits perfectly with lower-frequency ranges (down to 4.5 Hz) found in hydro-plant rotation cycles.
Centrifugal Compressors: Continually measures absolute bearing housing velocity to safeguard against unexpected mechanical failures.
Large Pumps & Electric Motors: Monitors continuous mid-to-low range frequency displacement on high-horsepower drive systems.
Frequently Asked Questions (FAQ)
Q:Can I mount this transducer horizontally?
A:No. Because your configuration features the -10 angle option, it is calibrated to operate strictly in a vertical "up" position. Mounting it horizontally or upside down will cause the internal moving coil to sag out of position, ruining measurement linearity and risking physical component damage.
Q:What type of sensor technology does it use?
A:It relies on moving-coil technology, using an internal spring-suspended coil around a permanent magnet. This design creates a self-generating voltage signal directly proportional to the machine's vibration velocity without requiring external power.
Q:What is the 9571-35 component?

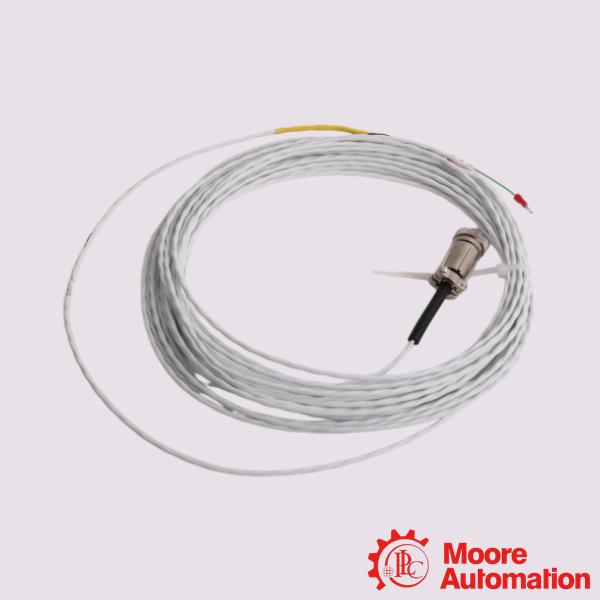

A:The 9571-35 is the accompanying multi-shielded interconnect cable used to transmit the raw voltage signal to your monitoring rack or continuous vibration monitor. The "-35" denotes a standard cable length of 35 feet.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：9200-03-02-10-00 9571-35 |
|
Standard Cable Lengths |
35ft |
|
Cable operating temperature |
-50˚C to 120˚C. |
|
Sensitivity Temperature Coefficient |
0.2%/°C |
|
Coil Resistance |
1.25 kΩ ±5% |
|
Locked Coil Inductance |
125 mH, typical |
|
Gasket Material |
Neoprene |
|
Agency Approval Option |
No Approvals |
|
Mounting Base Option |
Circular; M10X1 stud |
|
Connector/Cable Option |
Side Mount (no cable) |
|
