in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
2.3x2x112cmWeight:
0.1kgCountry of Origin: :
USADescription:

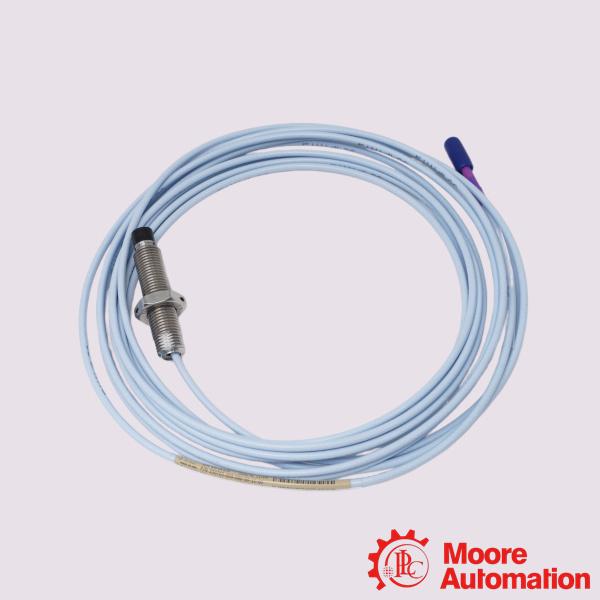

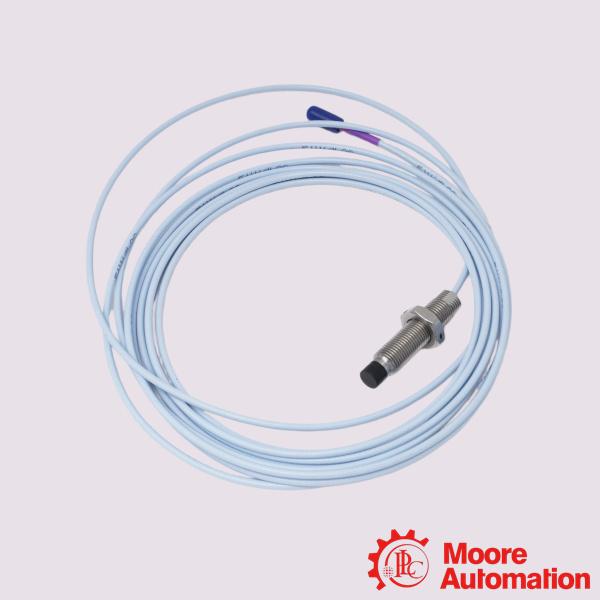

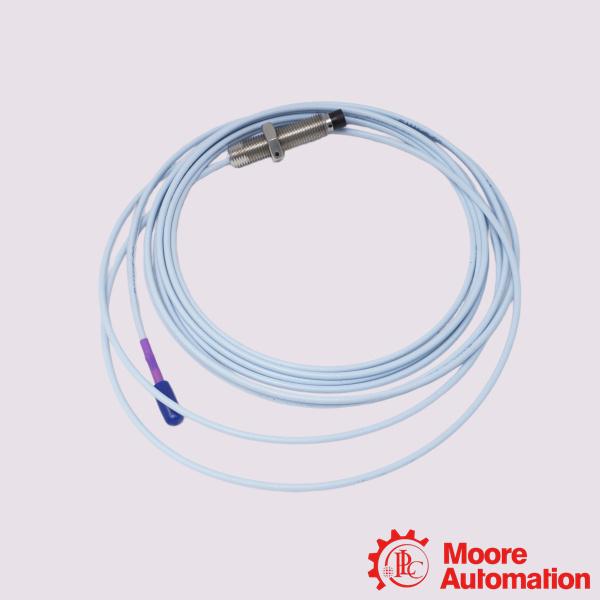

Bently Nevada 330703-000-026-10-02-00 Two-wire Transducer
| Mfr. Part Number: |
330703-000-026-10-02-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330703-000-026-10-02-00 is a highly precise 3300 XL 11 mm Proximity Probe. It is used for non-contacting vibration and displacement monitoring on critical rotating machinery like steam turbines and compressors.The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.
Application:
Oil & Gas / Petrochemical: Found on offshore platforms, refineries, and pipeline stations.
Power Generation: Used in thermal, nuclear, hydroelectric, and gas turbine power plants.
Manufacturing & Heavy Industry: Employed in large chemical processing facilities, steel production, and pulp/paper mills.
Water & Municipal Engineering: Installed on high-capacity industrial water pumps and treatment infrastructure.
Frequently Asked Questions (FAQ)
Q:Can I connect this probe directly to a monitor without an extension cable?
A:No. Proximity probes require a precise total electrical length to maintain correct calibration. You must use a matching extension cable (such as a 330130 extension cable) to build a complete, calibrated 5.0-metre or 9.0-metre loop matching your Proximitor Sensor.
Q:Which Proximitor Sensor is compatible with this probe?
A:It must be paired with a 3300 XL 11 mm Proximitor Sensor (such as part number 330780) configured for a matching system length. Since this probe has a 1.0-metre cable, it typically uses a 9.0-metre system length (combined with an 8.0-metre extension cable) to match a 9.0-metre Proximitor Sensor.
Q:Why choose an 11 mm probe over a standard 8 mm probe?
A:The larger 11 mm tip allows for a significantly longer linear range compared to standard 8 mm options. It offers a linear measurement range of up to 4 mm (160 mils), making it perfect for applications with wide mechanical clearances or substantial shaft movement.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330703-000-026-10-02-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
26 mm |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
Not required |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
