in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
9.5x5.4x4.1cmWeight:
0.46kgCountry of Origin: :
USADescription:

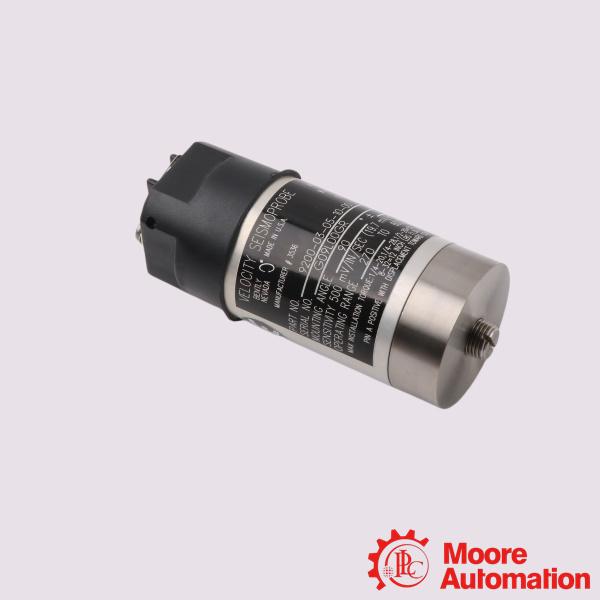

Bently Nevada 9200-01-05-10-00 9571-99 Two-wire Transducer
| Mfr. Part Number: |
9200-01-05-10-00 9571-99 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The Seismoprobe family of velocity transducers is a two-wire design that uses moving-coil technology. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

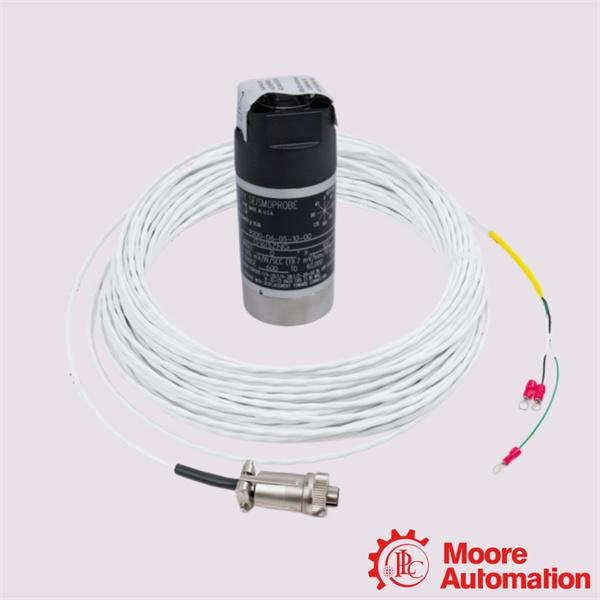

The Bently Nevada 9200-01-05-10-00 is a two-wire, moving-coil Seismoprobe Velocity Transducer used to measure absolute casing vibration on rotating machinery. The 9571-99 refers to a compatible Bently Nevada Communication Module or associated system interface component.Bently Nevada Seismoprobe Velocity Transducer Systems are measure absolute (relative to free space) bearing housing, casing, or structural vibration. The two-wire systems consist of a transducer and appropriate cable. The Seismoprobe family of velocity transducers is a two-wire design that uses moving-coil technology. It provides a voltage output directly proportional to the transducer's vibration velocity.
Application:
Steam and Gas Turbines: Monitors absolute casing vibration and structural shifts around the turbine housing.
Large Industrial Compressors: Measures low-to-mid frequency vibrations in centrifugal and axial compressors used in chemical processing.
Heavy-Duty Pumps & Fans: Detects mechanical unbalance, misalignment, and structural looseness in large process pumps and draft fans.
Large Gearboxes: Captures primary casing movement and structural stresses without getting blinded by high-frequency gear-mesh impact noise.
Frequently Asked Questions (FAQ)
Q:How does it interface with the 9571-99 module?
A:The 9571-99 Communication Module serves as the digital bridge. It collects analog velocity signals from the 9200 transducer and translates them into serial or network protocols for DCS, PLC, or System 1 software integration.
Q:What is the technology behind the 9200 Seismoprobe?
A:The 9200 uses moving-coil technology. It features a coil suspended by springs moving around a permanent magnet. This mechanic generates a voltage output directly proportional to the machine’s vibration velocity without requiring external power.
Q:How does the 9200 sensor operate?
A:It uses internal moving-coil technology. Instead of using solid-state electronics to calculate velocity, it relies on a physical coil moving through a magnetic field to output a raw voltage that is directly proportional to vibration velocity. Because it generates its own signal voltage, it requires no external power to function.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：9200-01-05-10-00 9571-99 |
|

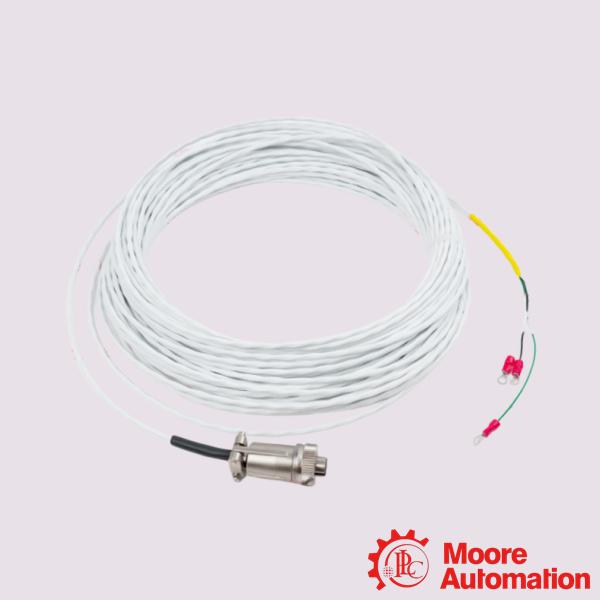

Connector/Cable Option |
Terminal block top mount (no cable) |
|
Standard Cable Lengths |
99ft |
|
Cable operating temperature |
-50˚C to 120˚C. |
|
Sensitivity Temperature Coefficient |
0.2%/°C |
|
Coil Resistance |
1.25 kΩ ±5% |
|
Locked Coil Inductance |
125 mH, typical |
|
Gasket Material |
Neoprene |
|
Agency Approval Option |
No Approvals |
|
Mounting Base Option |
Circular; M10X1 stud |
|
