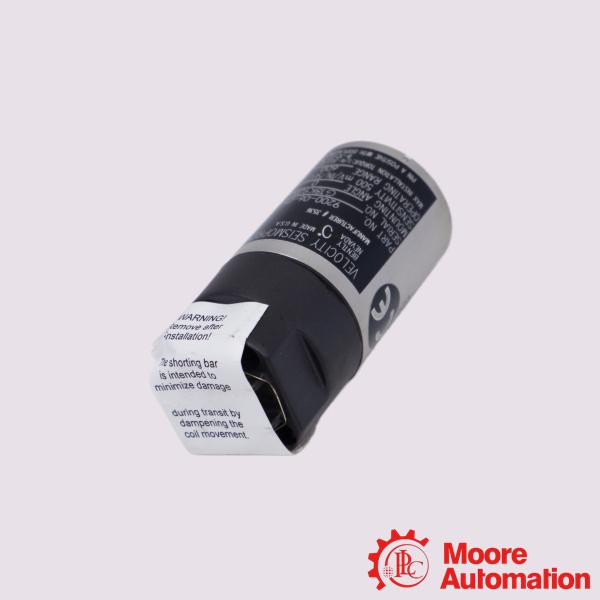

Bently Nevada 9200-01-03-10-00 84661-12 Two-wire Transducer
| Mfr. Part Number: |
9200-01-03-10-00 84661-12 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The Seismoprobe family of velocity transducers is a two-wire design that uses moving-coil technology. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

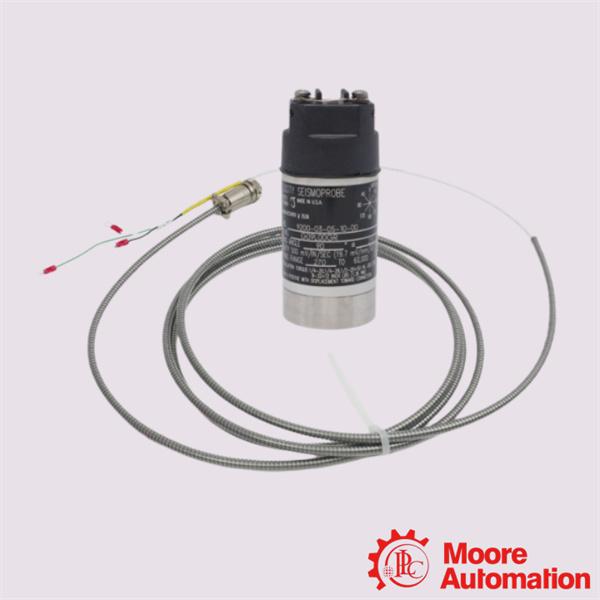

The Bently Nevada 9200-01-03-10-00 is a two-wire Seismoprobe Velocity Transducer used to measure absolute casing, bearing housing, or structural vibration. The accompanying part number 84661-12 refers to its internal core mechanism or structural part variant. This device operates via moving-coil technology, converting mechanical vibration directly into a proportional voltage signal without requiring external power.Bently Nevada Seismoprobe Velocity Transducer Systems are measure absolute (relative to free space) bearing housing, casing, or structural vibration. The two-wire systems consist of a transducer and appropriate cable. The Seismoprobe family of velocity transducers is a two-wire design that uses moving-coil technology. It provides a voltage output directly proportional to the transducer's vibration velocity.
Application:
Steam and Gas Turbines: Monitors structural case movement and bearing housing vibrations to prevent catastrophic imbalance or blade friction.
Hydroelectric Generators: Tracks low-frequency mechanical movement thanks to its low 4.5 Hz operational threshold.
Large Centrifugal Compressors: Continually monitors the casing to track health anomalies or structural misalignment.
Electric Motors and Gearboxes: Acts as a permanent diagnostic point for identifying rolling element bearing damage or shaft misalignment.
Frequently Asked Questions (FAQ)
Q:Can this sensor be mounted vertically?
A:No. The -01 option specifies a horizontal orientation (0° ± 2.5°). Mounting it vertically or outside its specified angle will cause the internal moving coil to sag, leading to inaccurate readings or physical damage.
Q:Does the 9200 require external power?
A:No. Because it uses a self-generating moving-coil design, it produces its own voltage output relative to the vibration speed, making it highly portable and simple to wire.
Q:What does this sensor measure?
A:It measures absolute vibration velocity relative to free space on machine housings or structures. It is widely deployed on slow-to-medium speed rotating machinery like pumps, fans, and compressors.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：9200-01-03-10-00 84661-12 |
|
Mounting Base Option |
Circular; M10X1 stud |
|

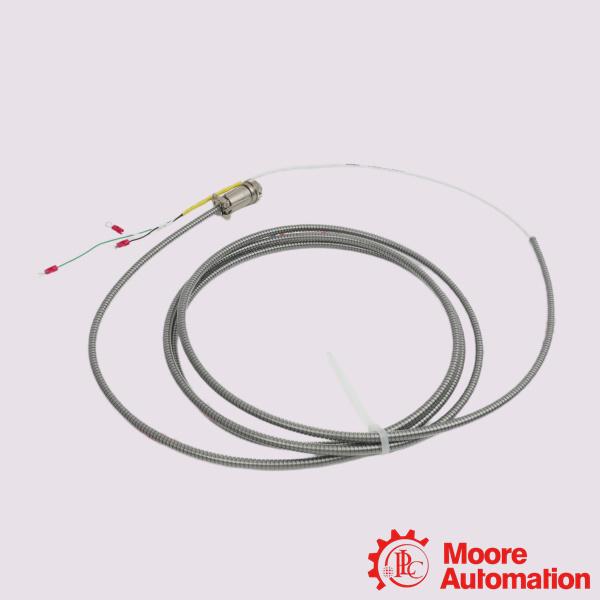

Standard Cable Lengths |
12 ft |
|
Cable operating temperature |
-50˚C to 120˚C. |
|
Sensitivity Temperature Coefficient |
0.2%/°C |
|
Coil Resistance |
1.25 kΩ ±5% |
|
Locked Coil Inductance |
125 mH, typical |
|
Gasket Material |
Neoprene |
|
Agency Approval Option |
No Approvals |
|
