5069-IY4 | Analog Input module

in stock#

Brand/ Manufacturer:
Dimensions:
2.2 cm x 12.4 cm x 12.6 cm
Weight:
0.1 kg
Country of Origin: :
USA
Description:

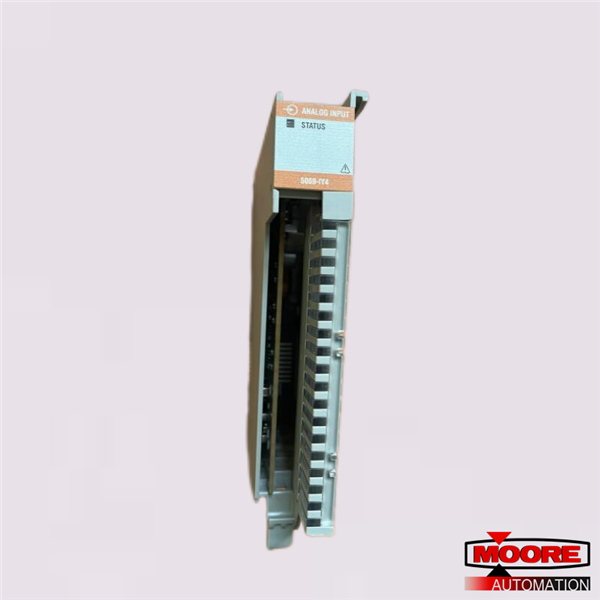

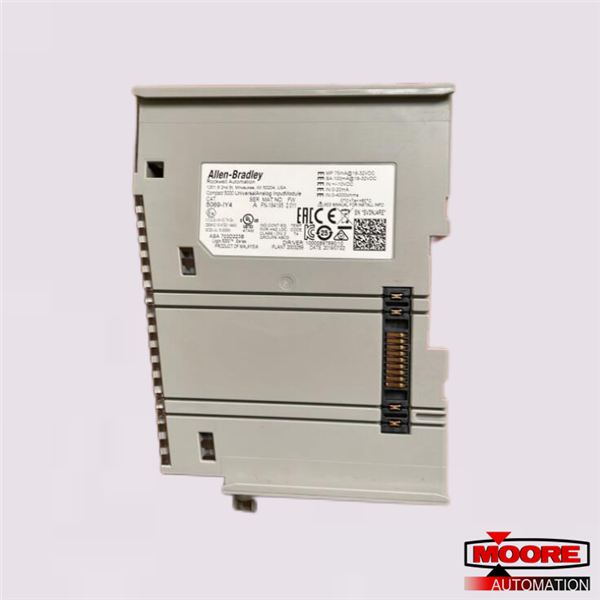

5069-IY4 Analog Input module

Inquiry now

Mfr. Part Number:	5069-IY4

Manufacturer:

Description:	5069-IY4 Analog Input module

Full Description:	5069-IY4 Analog Input module The 5069-IY4 is a Compact 5000 Analog Input module. This module is has Four (4) input channels configurable for Current/Voltage/RTD/Thermocouple inputs. This module has Four (4) differential inputs, compatible with a variety of signal levels such a ±10V, 0-10V and 0-5V for Voltage

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for . The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

The 5069-IY4 is a Compact 5000 Analog Input module. This module is has Four (4) input channels configurable for Current/Voltage/RTD/Thermocouple inputs. This module has Four (4) differential inputs, compatible with a variety of signal levels such a ±10V, 0-10V and 0-5V for Voltage; 0-20 mA and 4-20 mA for Current; 1-500 ?, 2-1000 ?, 4-2000 ? and 8-4000 ? for resistive; 100, 200, 500, 1000 ? platinum, alpha=385 100, 200, 500, 1000 ? platinum, alpha=3916 120 ? nickel, alpha=672 100, 120, 200, 500 ? nickel, alpha=618 10 ? copper 427 for RTD; +/- 100 mV millivolt and input and Thermocouple type B, C, D, E, J, K, L (TXK/XK), N, R, S, T sensors
The 5069-IY4 is a universal analog input module that is part of the Compact 500 I/O modules. This module mainly features Four (4) differential input channels that are compatible with a variety of input signals such as Voltage, Current, Resistance, Resistance Temperature Detector (RTD), millivolt and Thermocouple signals and sensors.

When configured for Voltage input, this module supports voltage ranges such as ±10V, 0-10V and 0-5VDC. Similarly, when configured for millivolt input, acceptable input range is +/- 100 mV. When set to accept current input, this module is compatible with 0-20 mA and 4-20 mA input signals. Additionally, for resistance input, this module accommodates 1-500 ?, 2-1000 ?, 4-2000 ? and 8-4000 ? resistive signal.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Input Voltage Range	+/- 10 Volts, 0-10 Volts, 0-5 Volts
Number of Inputs	4 Differential Inputs
Module Type	Compact 5000 Analog Input module
Part Number/Catalog No.	5069-IY4
Brand
Manufacturer	Automation
Resistance input	1-500 ?, 2-1000 ?, 4-2000 ? and 8-4000 ?
milivolt input	+/- 100 mV millivolt
Thermocouple input	Type B, C, D, E, J, K, L (TXK/XK), N, R, S, T sensors
RTD input	100, 200, 500, 1000 ? platinum, alpha=385; 100, 200, 500, 1000 ? platinum, alpha=3916; 120 ? nickel, alpha=672 100, 120, 200, 500 ? nickel, alpha=618; 10 ? copper 427 for RTD;
Module conversion method	Sigma-Delta,One 24-bit multiplexed ADC
Calibrated accuracy at 25 °C	Voltage 0.100% full scale Current 0.100% full scale RTD 0.100% full scale Thermocouple/millivolt 0.100% full scale
Accuracy drift with temperature	Voltage 0.200% full scale Current 0.300% full scale RTD 0.200% full scale Thermocouple/millivolt 0.200% full scale
Scan time, per channel	625 µs
Scan time, per group	2.5 ms
