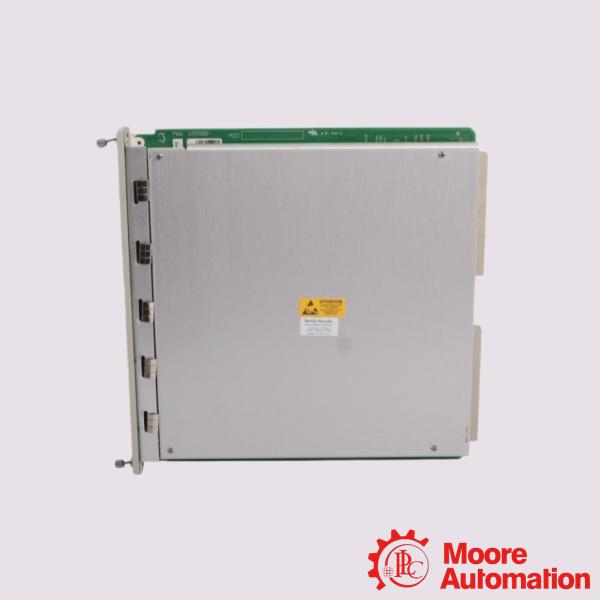

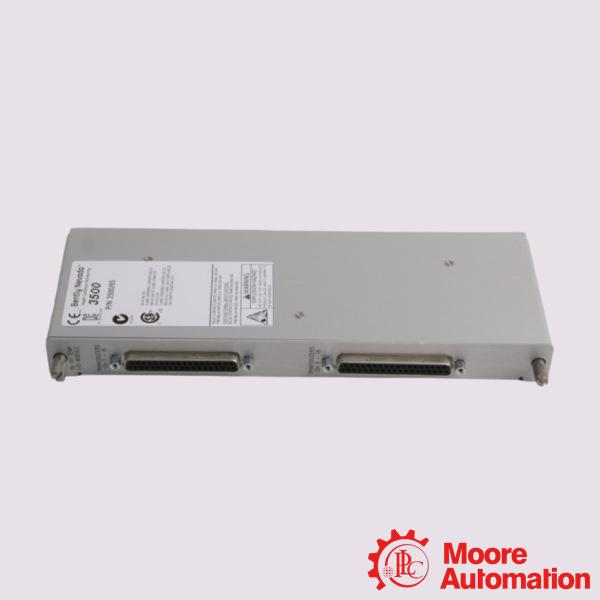

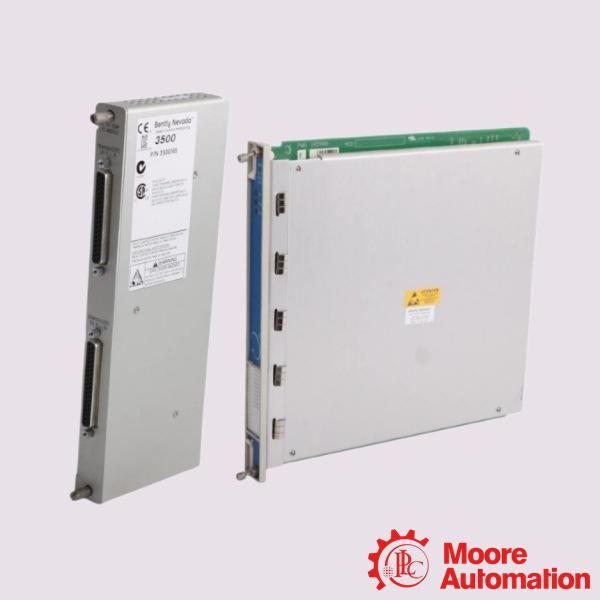

3500/65 145988-02+172109-01 | Bently Nevada 16-Channel Temperature Monitor

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
2.5x24.1x23.8cm
Weight:
0.76 kg
Country of Origin: :
USA
Description:
Bently Nevada 3500/65 145988-02+172109-01 16-Channel Temperature Monitor

Inquiry now

Mfr. Part Number:	3500/65 145988-02+172109-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 3500/65 145988-02+172109-01 16-Channel Temperature Monitor

Full Description:	The Bently Nevada™ 3500/65 145988-02+172109-01 monitor provides 16 channels of temperature monitoring

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada™ 3500/65 145988-02+172109-01 monitor provides 16 channels of temperature monitoring and accepts both resistance temperature detector (RTD) and isolated tip thermocouple (TC) temperature inputs. The monitor conditions these inputs and compares them against user-programmable alarm setpoints.

The 3500/65 145988-02+172109-01 monitor is programmed using the 3500 Rack Configuration Software. You can configure the 16-Channel Temperature Monitor to accept isolated tip thermocouples, 3-wire RTD, 4-wire RTD, or a combination of TC and RTD inputs.

Application:

Electrical power industry: Monitoring the temperature of generator stator windings, as well as the temperature of alloy bushings in thrust and radial bearings.
Oil and chemical industry: Monitoring the return oil temperature of bearings in large centrifuges and compressors.
Metallurgy and mining: Monitoring for overheating in bearings of heavy-duty ball mills and belt conveyor drive units.
General industry: Monitoring of large ventilators, blowers and industrial gas turbines.

Frequently Asked Questions (FAQ)

Q:What is Bently Nevada 3500/65 145988-02+172109-01?
A:The Bently Nevada 3500/65 145988-02+172109-01 is a 16-channel temperature monitor used in the 3500 system for multi-channel temperature measurement.

Q:What types of signals can Bently Nevada 3500/65 145988-02+172109-01 monitor?
A:It supports resistance temperature detectors (RTD) and isolated tip thermocouple (TC) inputs.

Q:What is the power consumption of Bently Nevada 3500/65 145988-02+172109-01?
A:The typical power consumption is 3 watts.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: 3500/65 145988-02+172109-01
Power Consumption	3 watts nominal
Input Impedance	Greater than 1 MΩ
Resolution	1°C or 1°F
Internal Termination	Bulkhead Rack ±3°C at +25°C (±5.4°F at +77°F)
Alert Delay	From 1 to 60 seconds in 1-second increments
Operating Temperature	-30°C to +65°C (-22°F to +150°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
