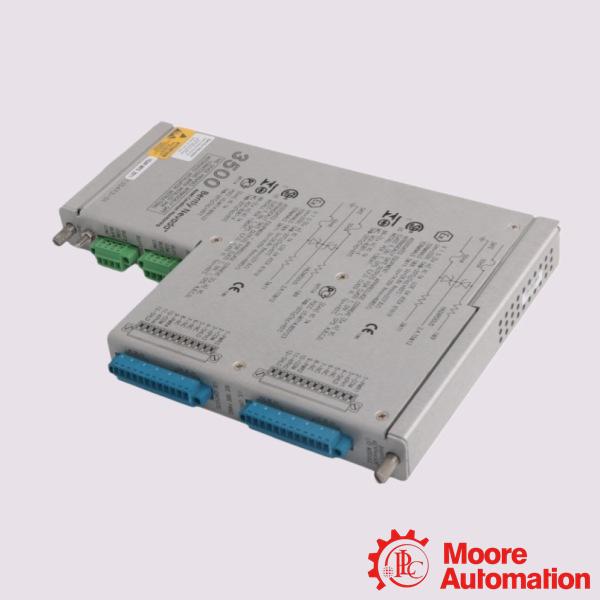

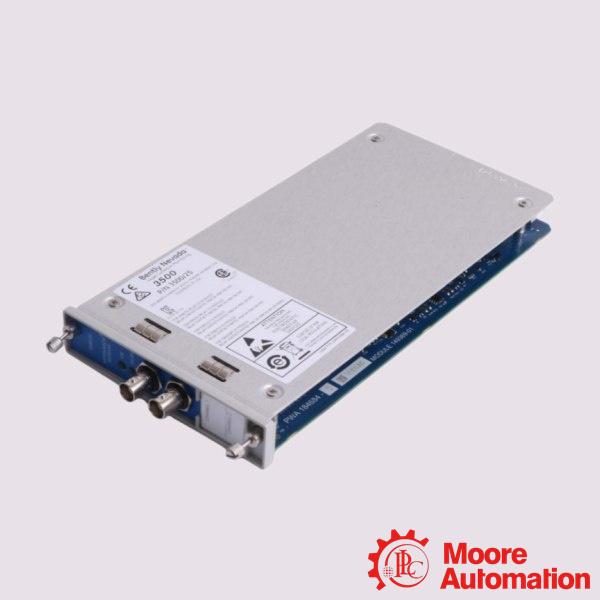

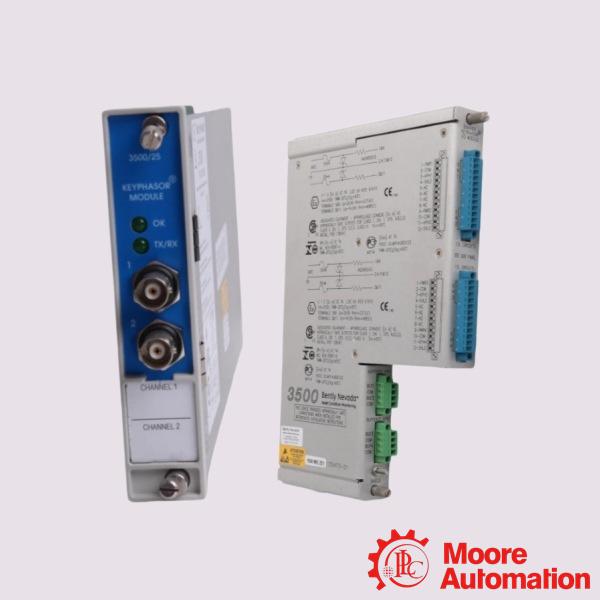

3500/25 149369-01+135473-01 | Bently Nevada Enhanced Keyphasor Module

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
2.5x25.5x12cm
Weight:
0.32 kg
Country of Origin: :
USA
Description:
Bently Nevada 3500/25 149369-01+135473-01 Enhanced Keyphasor Module

Inquiry now

Mfr. Part Number:	3500/25 149369-01+135473-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 3500/25 149369-01+135473-01 Enhanced Keyphasor Module

Full Description:	The Bently Nevada™ 3500/25 149369-01+135473-01 Enhanced Keyphasor Module is a half-height, two-channel module

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada™ 3500/25 149369-01+135473-01 Enhanced Keyphasor Module is a half-height, two-channel module used to provide Keyphasor signals to the monitor modules in a 3500 rack. The module receives input signals from proximity probes or magnetic pickups and converts the signals to digital Keyphasor signals that indicate when the Keyphasor mark on the shaft coincides with the Keyphasor transducer. The 3500 Machinery Protection System can accept up to four Keyphasor signals for normal configuration and up to eight Keyphasor signals in a paired configuration.

The 3500/25 149369-01+135473-01 Enhanced Keyphasor Module is an improved 3500 system module. It offers expanded Keyphasor signal processing capabilities over the previous design while maintaining complete downward-compatibility in terms of form, fit and function with existing Keyphasor modules for use in legacy systems.

Application:

Power generation: Monitoring the rotational speed of steam turbines, generators and hydro turbines.
Oil and gas: Phase measurement for large compressor units and reciprocating machinery on offshore platforms or at refineries.
Steel and metallurgy: Monitoring the state of synchronous rotation in heavy-duty rolling mills and high-speed wire rod mills.
Aero-engine testing: Providing precise rotational speed pulse signals during ground testing of aero-gas turbines.

Frequently Asked Questions (FAQ)

Q:How many channels does Bently Nevada 3500/25 149369-01+135473-01 have?
A:It is a half-height, two-channel module.

Q:How many Keyphasor signals does Bently Nevada 3500/25 149369-01+135473-01 support?
A:It supports up to 4 Keyphasor signals in normal configuration and up to 8 in paired configuration.

Q:What is the output impedance of Bently Nevada 3500/25 149369-01+135473-01?
A:The maximum output impedance is 504 Ω.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: 3500/25 149369-01+135473-01
Power Consumption	3.2 Watts typical
Input Impedance	21.8 kΩ minimum
Hysteresis	User-selectable from 0.2 to 2.5 Volts
Output Impedance	504 Ω maximum
Keyphasor Transducer Power Supply	-24 Vdc, 40 mA maximum per channel
Operating Temperature	-30°C to +65°C (-22°F to +150°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Humidity	95%, non-condensing
