in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
48.2x26.5x24.6cmWeight:
3.6 kgCountry of Origin: :
USADescription:

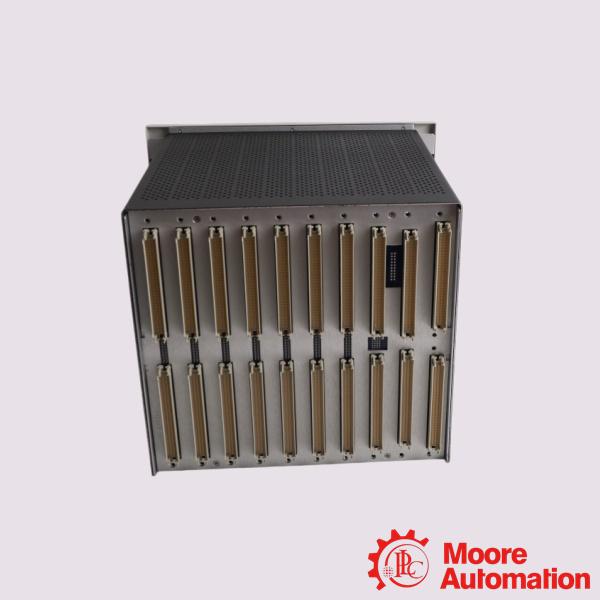

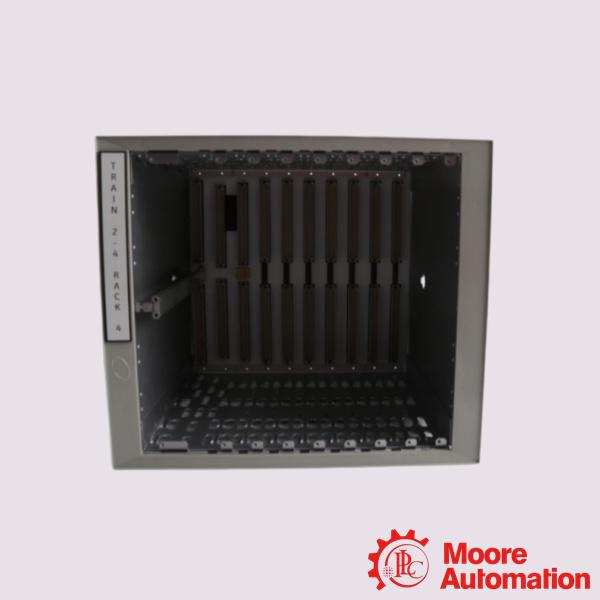

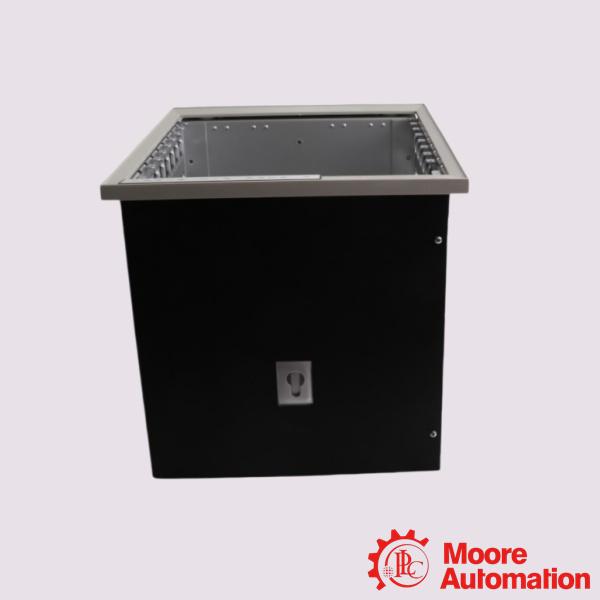

Bently Nevada 3500/05-02-04-01-00-00 System Rack
| Mfr. Part Number: |
3500/05-02-04-01-00-00 |
| Manufacturer: |
Bently Nevada |
| Description: | Bently Nevada 3500/05-02-04-01-00-00 System Rack |
| Full Description: |
|
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 3500/05-02-04-01-00-00 System rack is used to mount all 3500 monitor modules and power supplies. It allows the 3500 modules to be installed close to one another, enabling easy communication between modules, while also providing mounting space for the power supplies required to distribute power to each module.
This rack format mounts the rack against a wall or panel when rear access to the rack is not possible. Wiring connections and I/O modules are accessible from the front of the rack. The 3500/05 Mini-Rack is not available in this format.The power supplies and rack interface module must occupy the far-left rack positions. The remaining 14 rack positions (seven rack positions for the mini-rack) are available for any combination of modules.
Application:
Oil and gas: Small and medium-sized compressors, injection pumps, and crude oil transportation pumps in offshore platforms, oil production plants, and pumping stations.
Petrochemical and chemical industry: Reactor agitators, centrifugal fans, local reciprocating compressors, and various chemical product transportation pumps.
Electric power industry: Blowers, induced draft fans, condensate pumps, and circulating pumps in power plants.
Water treatment and environmental protection: Mechanical equipment in urban sewage treatment plants, pumps for pumped storage power stations, aeration fan houses, etc.
Frequently Asked Questions (FAQ)
Q:What is the function of the 3500/05-02-04-01-00-00 System Rack?
A:The Bently Nevada 3500/05-02-04-01-00-00 System Rack is used to mount all 3500 monitor modules and power supplies while enabling communication between modules and power distribution.
Q:What approvals does the 3500/05-02-04-01-00-00 have?
A:The Bently Nevada 3500/05-02-04-01-00-00 includes CSA/NRTL/C Class 1, Division 2 approval.
Q:Where must the Rack Interface Module be installed in the 3500/05-02-04-01-00-00?
A:The Rack Interface Module (RIM) in the Bently Nevada 3500/05-02-04-01-00-00 must also occupy the far-left rack positions.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number: 3500/05-02-04-01-00-00 |
|
Rack Size (AA) |
02 12-inch Mini-Rack (7 module slots) |
|
Mounting Options (BB) |
04 Panel Mount Option, Mini-Rack |
|
Agency Approval Option (CC) |
01 CSA/NRTL/C (Class 1, Division 2) |
|
Reserved (DD) |
00 None |
|
European Compliance Option (EE) |
00 None |
|
