in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
2.8x25.8x24cmWeight:
0.9 kgCountry of Origin: :
USADescription:

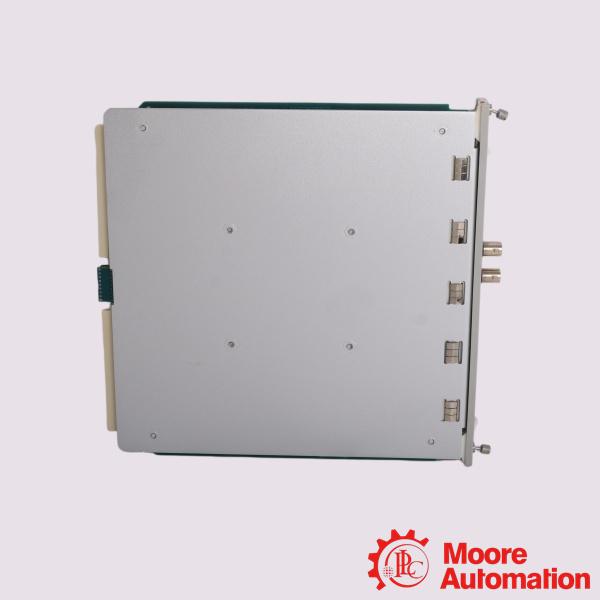

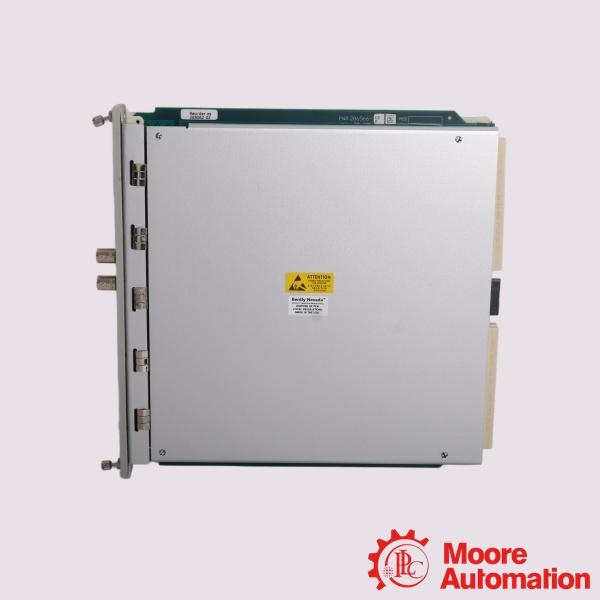

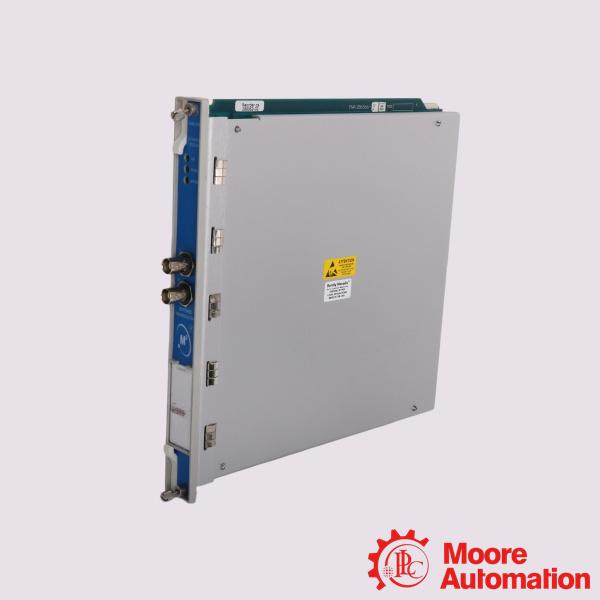

Bently Nevada 3500/50M 288062-02 286566-02 Tachometer Module
| Mfr. Part Number: |
3500/50M 288062-02 286566-02 |
| Manufacturer: |
Bently Nevada |
| Description: | Bently Nevada 3500/50M 288062-02 286566-02 Tachometer Module |
| Full Description: |
|
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada™ 3500/50M 288062-02 286566-02 Tachometer Module is a 2-channel module that accepts input from proximity probes or magnetic pickups to determine shaft rotative speed, rotor acceleration, or rotor direction. The module compares these measurements against user-programmable alarm setpoints and generates alarms when the setpoints are violated.
The 3500/50M 288062-02 286566-02 Tachometer Module can be configured to supply conditioned Keyphasor signals to the backplane of the 3500 rack for use by other monitors. Therefore, you don't need a separate Keyphasor module in the rack.The 3500/50M Tachometer Module has a peak hold feature that stores the highest speed, the highest reverse speed, or the number of reverse rotations that the machine has reached.
Application:
Electric power industry: Speed monitoring for steam turbine generators and hydro turbine generators.
Petroleum and natural gas: Crude oil transfer pumps, offshore platform injection pumps, natural gas long-distance pipeline compression units.
Refining and petrochemicals: Ethylene cracking gas compressors, centrifugal high-pressure compressors, large-scale mixers and other core equipment.
Heavy industry and smelting: Steel mills (large blowers, blast furnace fans), cement plants (large vertical mills, main drive shafts of kilns) and paper mills.
Frequently Asked Questions (FAQ)
Q:What inputs does the 3500/50M 288062-02 286566-02 accept?
A:The 3500/50M 288062-02 286566-02 module accepts input signals from proximity probes or magnetic pickups.
Q:What is the input impedance of the 3500/50M 288062-02 286566-02?
A:The input impedance is 20 kΩ (standard).
Q:What is the transducer power supply of the 3500/50M 288062-02 286566-02?
A:The 3500/50M 288062-02 286566-02 module provides a 24 Vdc transducer power supply with a maximum of 40 mA per RPM/Min channel.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number: 3500/50M 288062-02 286566-02 |
|
Input Signal Range |
+10.0 V to -24.0 V |
|
Input Impedance |
20 kΩ (standard) |
|
Power Consumption |
5.8 Watts, typical |
|
Output Impedance |
550 Ω |
|
Transducer Power Supply |
24 Vdc, 40 mA maximum per RPM/Min |
|
Accuracy |
± 20 rpm/min |
|
