in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
23x23x4cmWeight:
0.5kgCountry of Origin: :
USADescription:

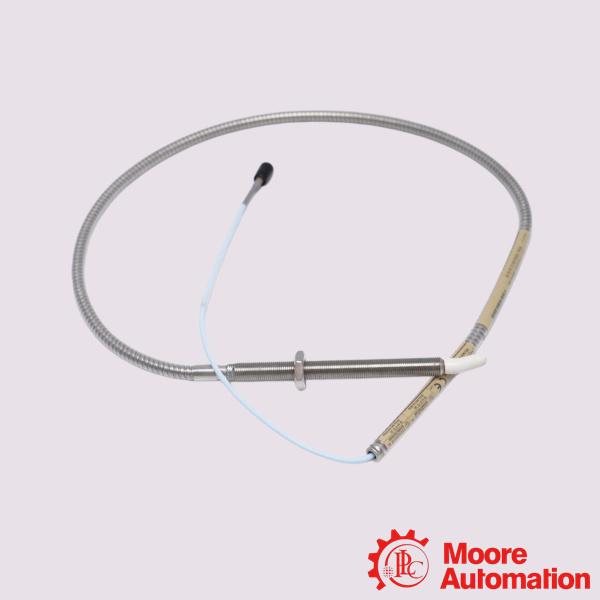

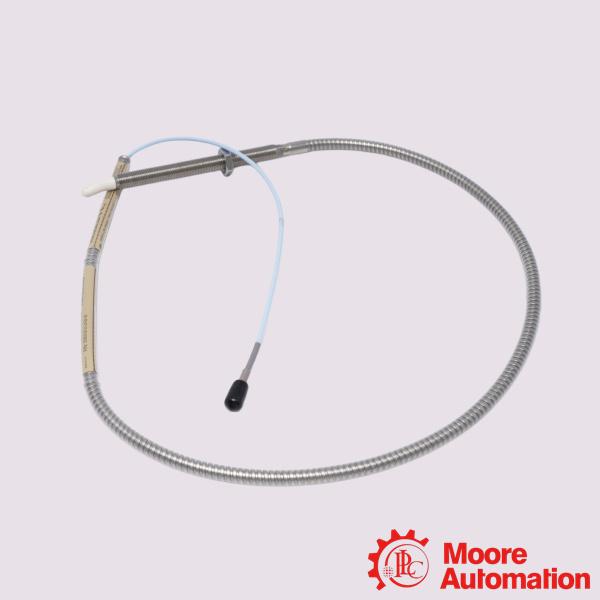

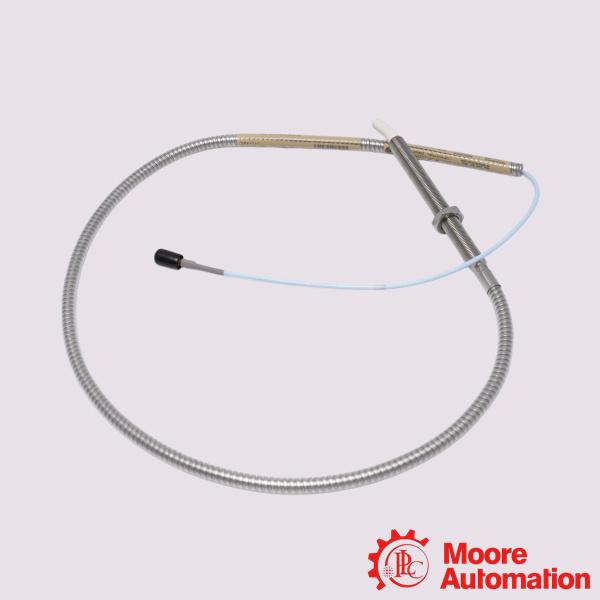

Bently Nevada 330910-00-21-05-01-CN 3300 NSv Proximity Probes
| Mfr. Part Number: |
330910-00-21-05-01-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330910-00-21-05-01-CN is an eddy-current proximity probe belonging to the 3300 XL NSv (Narrow Sideview) series, for vibration and position monitoring in tight spaces or on small machinery targets.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring 3300 XL NSv Proximity Transducer System.
Application:
Centrifugal Compressors: Extensively deployed to monitor fluid-filmed bearings and shaft stability in small-body centrifugal air, refrigeration, and process gas compressors.
High-Speed Electric Motors: Used for radial vibration and axial position tracking on compact or high-RPM motors with restricted internal clearances
Industrial Pumps: Integrated into small-scale, high-pressure process pumps to avoid cross-talk or side-wall interference from tight mechanical housings.
Turbine Supervisory Instrumentation (TSI): Functions as a precise sensor input for Bently Nevada 3500 monitor racks to safely manage Emergency Shutdown (ESD) loops and protect small turbomachinery.
Frequently Asked Questions (FAQ)
Q:What are the primary applications for this probe?
A:This system is optimized for centrifugal air compressors, refrigeration compressors, and small turbo-machinery. It is ideal for installations where rear-view or side-view spatial limits restrict standard 5 mm or 8 mm probes. It also measures radial vibration on small shafts under 51 mm (2 inches).
Q:What is the recommended gap setting and range?
A:The recommended electrical gap setting for installation is 1.0 mm (40 mils). The entire transducer system provides a stable linear range of 1.5 mm (60 mils).
Q:What are the physical footprint limitations for installation?
A:The minimum target diameter is 8.9 mm (0.35 inches). If installing the probe inside a counterbore recess, the counterbore diameter must be a minimum of 9.5 mm (0.375 inches) to prevent physical and signal interference.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330910-00-21-05-01-CN |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
210 mm |
|
Total Length Option |
0.5 meter (20 in) |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
