Product Description:

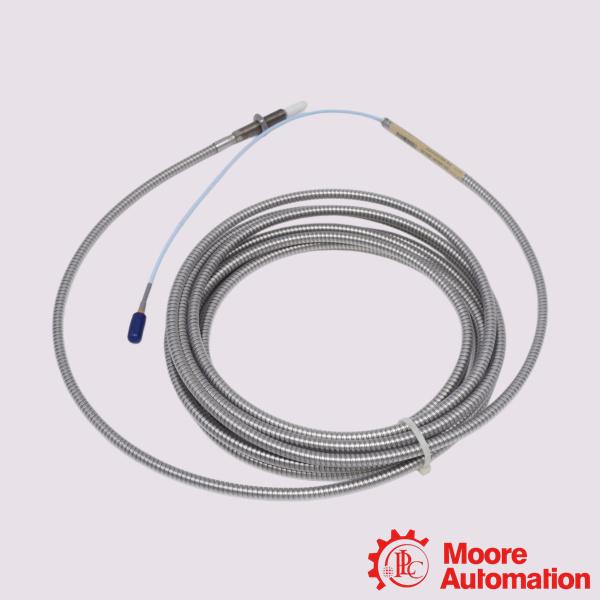

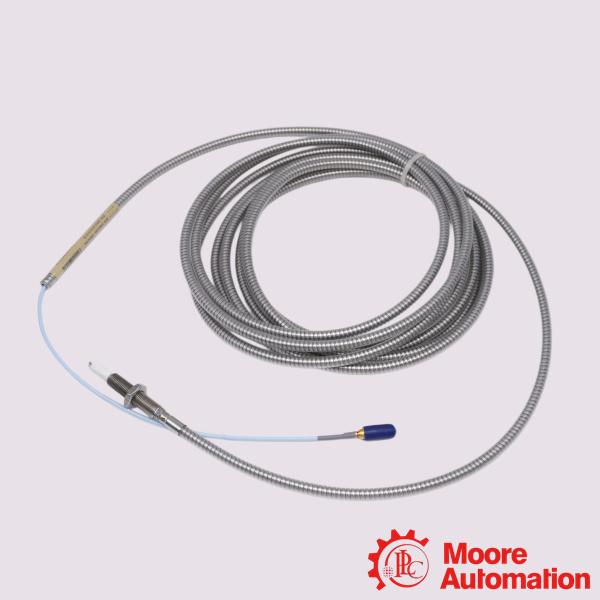

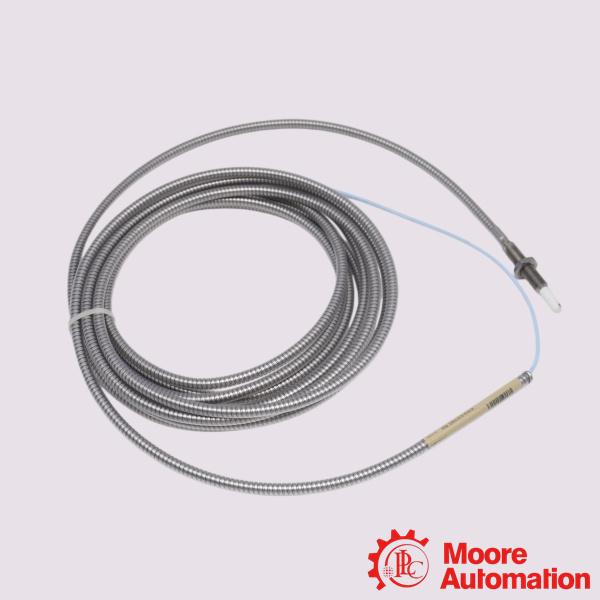

The Bently Nevada 330910-00-20-05-01-00 is a 3300 NSv proximity probe equipped with an M10 x 1 metric thread and stainless steel cable armor. It belongs to a specialized family for small target applications and tight installation spaces where standard 5 mm or 8 mm probes will not fit or cannot function accurately.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.

Frequently Asked Questions (FAQ)

Q:How can I test the health of the probe using a multimeter?

A:Set your meter to resistance/continuity mode. Check for continuity between the center conductor and outer shield, as well as checking that the cable jacket isolates perfectly from the physical machine casing ground path. Unstable gap voltages or an "out of range" error on your 3500 monitor signal typically indicate internal core or tip physical damage.
Q:What purpose does the "-01" connector suffix serve?
A:The "-01" option includes a factory-installed connector protector over the gold-plated ClickLoc connector. This physical sleeve prevents oil, moisture, or environmental contaminants from penetrating the connection link and distorting the analog signal voltage.

Q:How does the total loop length constraint work with a 0.5-meter probe?
A:Proximity systems are calibrated to a fixed electrical length (commonly 5.0m or 9.0m total). Because this probe features a short 0.5m onboard cable, you must pair it with a matching 4.5-meter or 8.5-meter NSv extension cable to fulfill system calibration demands.
