Product Description:

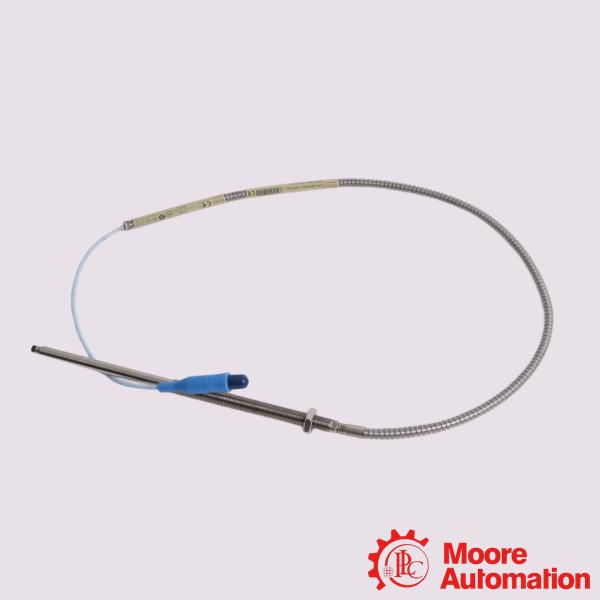

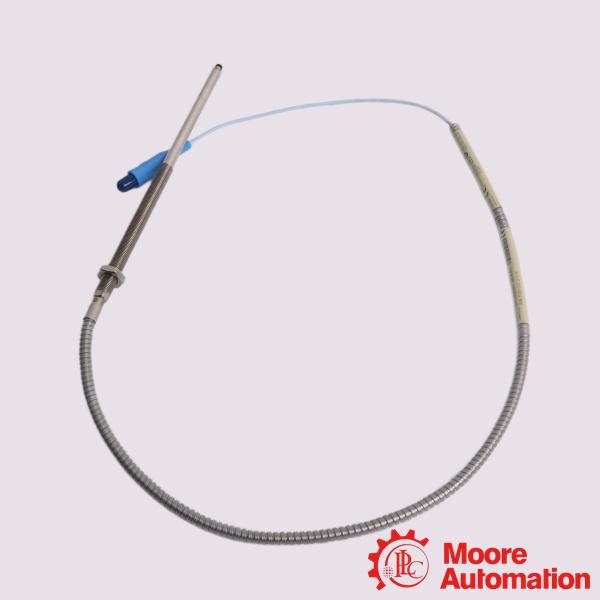

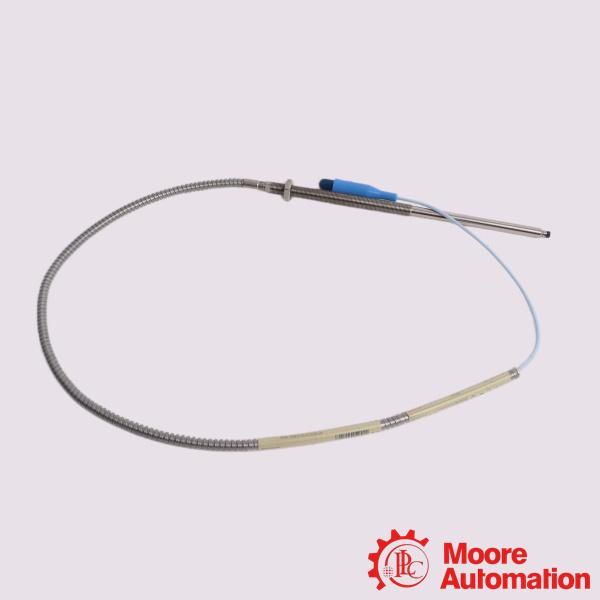

The Bently Nevada 330910-00-18-05-01-CN is a 3300 NSv Proximity Probe equipped with an M10 x 1 metric thread and stainless steel armor. It is for machinery with tight installation clearances, such as centrifugal air compressors, where standard 5 mm or 8 mm probes will not fit.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.

Frequently Asked Questions (FAQ)

Q:How can I verify if the probe's internal coil or cable is damaged?

A:You can use a digital multimeter set to resistance (ohms) mode. Measure the center conductor against the outer shield of the ClickLoc connector. A functioning 3300 NSv probe tip coil typically reads a very low resistance (typically between 2.0 to 5.0 ohms depending on lead length). A reading of infinity indicates an open circuit, while an erratic reading indicates a compromised internal connection.
Q:Can this assembly withstand submersion in lubricating oils?
A:Yes. The probe tip is made from polyphenylene sulfide (PPS), and the case is AISI 304 stainless steel. “Yes, the probe tip and case are hermetically sealed and IP68 rated, making them suitable for continuous operation in bearing oil environments.”

Q:What are the target size restrictions for this narrow-profile probe?
A:The NSv series uses an enhanced side-view profile that handles small targets exceptionally well. It is ideally calibrated for tracking radial vibration on rotating shafts smaller than 51 mm (2 inches) or measuring axial thrust position on flat faces smaller than 15 mm (0.6 inches).
