Product Description:

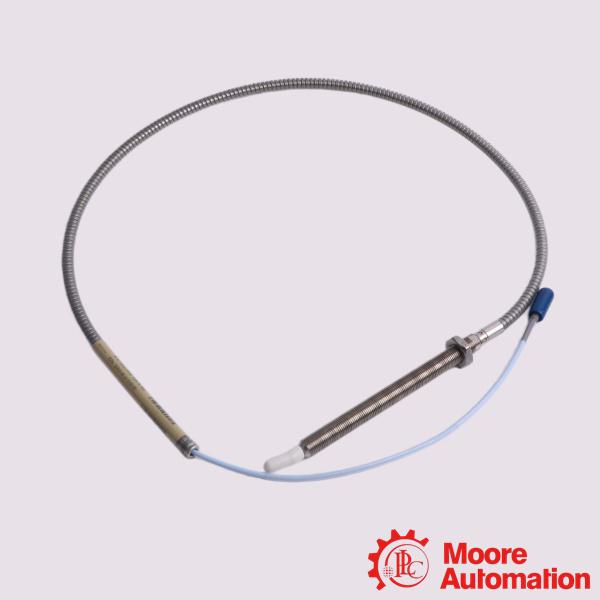

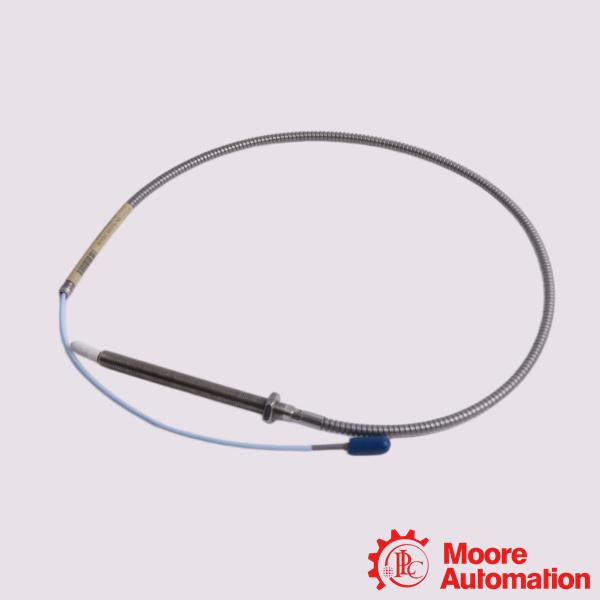

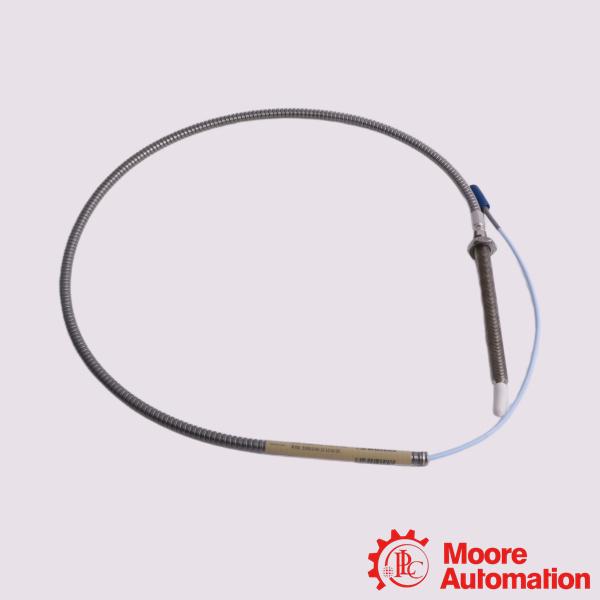

The Bently Nevada 330910-00-15-05-01-00 is a 3300 NSv proximity probe for machinery condition monitoring in tight installations and small-target applications. This specific configuration features an M10x1 metric thread, 0 mm unthreaded length, 150 mm case length, 0.5-meter total cable length, a miniature coaxial ClickLoc connector with a connector protector, and no agency approvals.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.

Frequently Asked Questions (FAQ)

Q:Can I swap a standard 3300 XL 8mm probe out for this model directly?

A:No, you cannot mix standard and NSv parts. While the output scale factor is identical, the NSv system requires an end-to-end matching footprint. If upgrading your setup or replacing an old 3000/7000 system, you must concurrently match this probe with a 3300 XL NSv Extension Cable and a specialized 3300 XL NSv Proximitor Sensor to maintain structural calibration.
Q:What is the benefit of the ClickLoc connector (Option -01)?
A:The gold-plated brass ClickLoc connector features a mechanical locking mechanism that safely resists loosening from continuous machine vibration. Option -01 adds an outer connector protector that acts as an environmental block, preventing oil, water, or chemical liquids from bleeding into the coaxial signal lines.

Q:What does "NSv" mean, and when should I use this probe?
A:NSv stands for Narrow Side View. This eddy-current probe is specifically optimized for small targets and tight spacing environments where regular 5 mm or 8 mm probes cannot fit safely due to side-view or counterbore constraints. It is ideal for measuring radial vibration on shafts smaller than 51 mm (2 inches) or axial positions on flat surfaces smaller than 15 mm.
