Product Description:

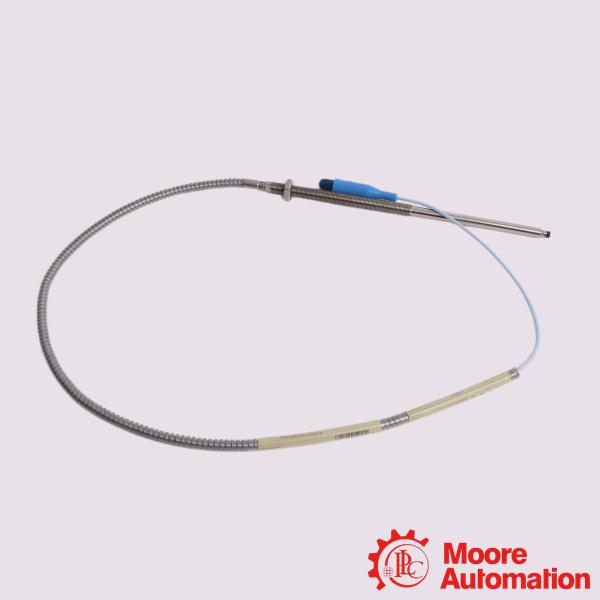

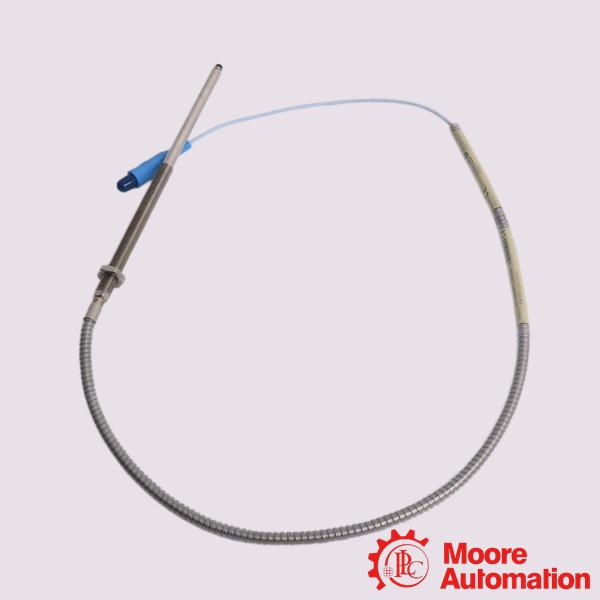

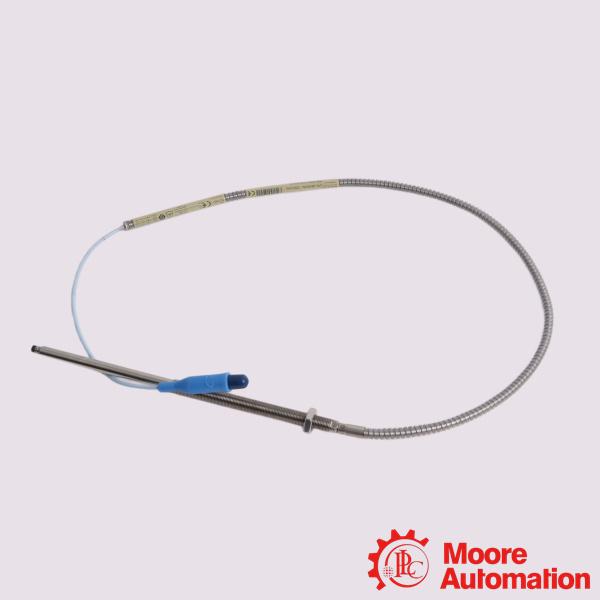

The Bently Nevada 330910-00-18-05-01-00 is an NSv (Near Surface) Proximity Probe for vibration and position monitoring in tight spaces or on small targets. It functions as a critical part of the 3300 XL NSv Proximity Transducer System to minimize the side-viewing effect on constrained industrial machinery.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring 3300 XL NSv Proximity Transducer System.

Frequently Asked Questions (FAQ)

Q:How do I perform an electrical health check on the probe?

A:To verify if the internal coil is healthy, use a digital multimeter to measure the DC resistance across the core and jacket of the probe connector. A normal, functional 0.5-meter 3300 NSv probe should read a very low base resistance of 4.0 ± 0.5 Ω. An infinitely high reading indicates an open circuit, while an ultra-low or zero reading suggests a short.
Q:What are the primary applications for this specific probe?
A:The 3300 NSv (Narrow Side View) system is designed for machinery with tight physical installation clearances. It is ideal for small target applications, such as monitoring radial vibration on shafts smaller than 51 mm (2 in), or tracking axial/thrust position on flat targets smaller than 15 mm (0.6 in). Typical machines include centrifugal air compressors, industrial refrigeration compressors, and process gas machinery.

Q:What is the linear range of this sensor?
A:The 3300 NSv proximity probe delivers a calibrated linear measuring range of 1.5 mm (60 mils). Its linear span typically functions from a gap distance of 0.25 mm to 1.75 mm relative to the target surface.
