in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.5x1.3x118cmWeight:
0.18kgCountry of Origin: :
USADescription:

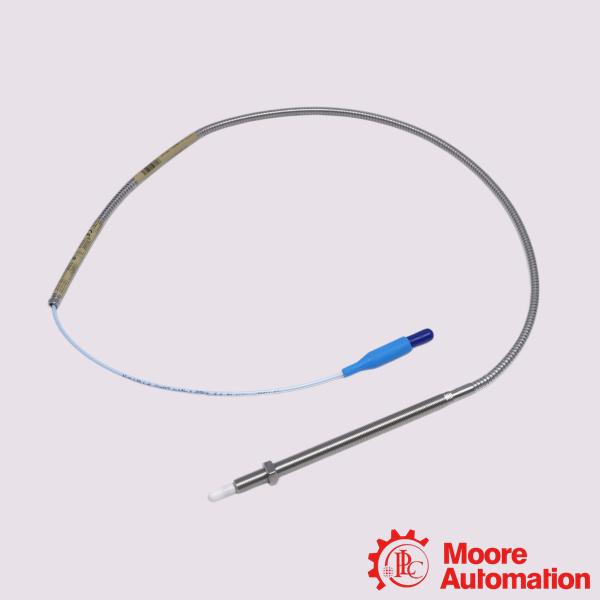

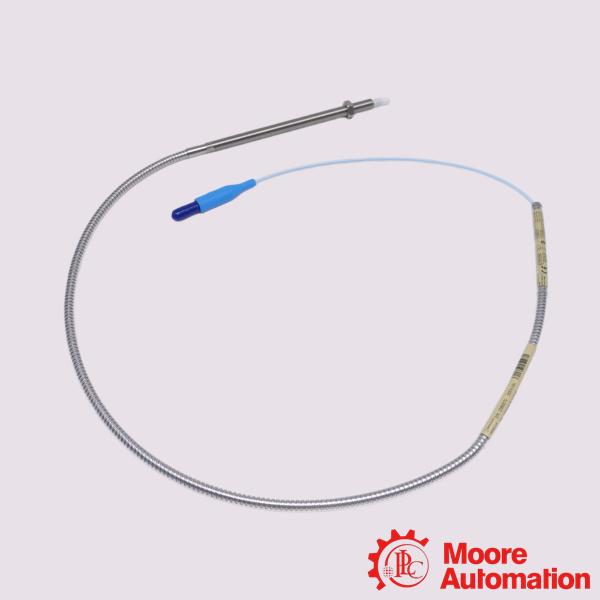

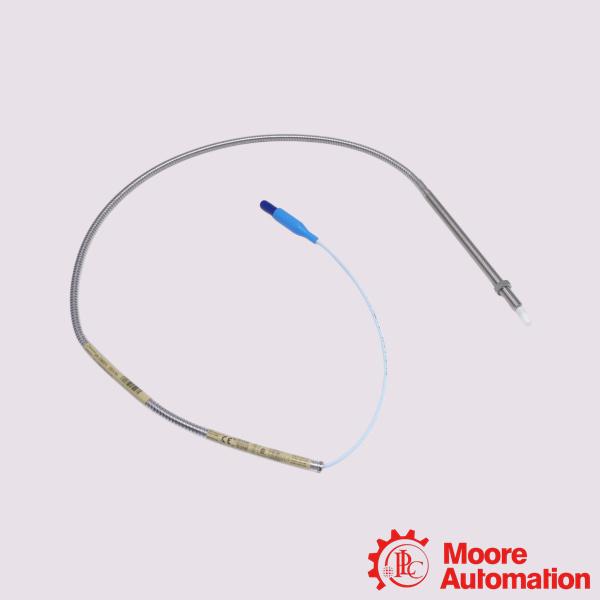

Bently Nevada 30909-00-60-50-02-CN 3300 NSv Proximity Probes
| Mfr. Part Number: |
330909-00-60-50-02-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330909-00-60-50-02-CN is a 3300 NSv proximity probe for machinery condition monitoring in high-density or restricted installation environments. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
Application:
Centrifugal Air Compressors: Used extensively in plant air systems and industrial processes.
Process Gas and Refrigeration Compressors: Ideal for specialized chemical processing and large-scale cooling systems.
Small Fluid-Filmed Bearing Machines: Designed for radial vibration measurements on shafts smaller than 51 mm (2 in).
Turbines, Pumps, and Fans: General industrial rotating equipment requiring precise displacement monitoring.
Frequently Asked Questions (FAQ)
Q:How do I perform a basic electrical check?
A:Isolate the components and use a standard multimeter. Measure the center conductor to the outer shield on the ClickLoc connector. The expected resistance range across a 5.0-meter probe assembly is typically between 4.0 Ω and 11.0 Ω depending on exact coil temperature.
Q:How do I test for accidental grounding?
A:Set the multimeter to resistance mode. Check for continuity between the armor layer or outer cable jacket and the machine ground. Any reading showing low resistance confirms a grounded loop fault that requires physical re-isolation.
Q:How can I prevent fluid contamination?
A:Always use silicone or fluorosilicone connector protectors on all outdoor or oil-exposed probe-to-extension joints. Unprotected connections will bridge the coaxial lines and introduce signal noise.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330909-00-60-50-02-CN |
|
Unthreaded Length Option |
0.0 in |
|
Overall Case Length Option |
6.0 in |
|
Total Length Option |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
