Product Description:

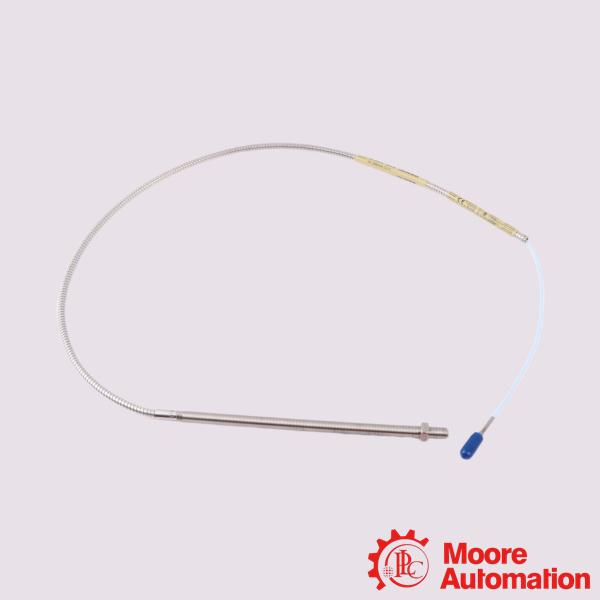

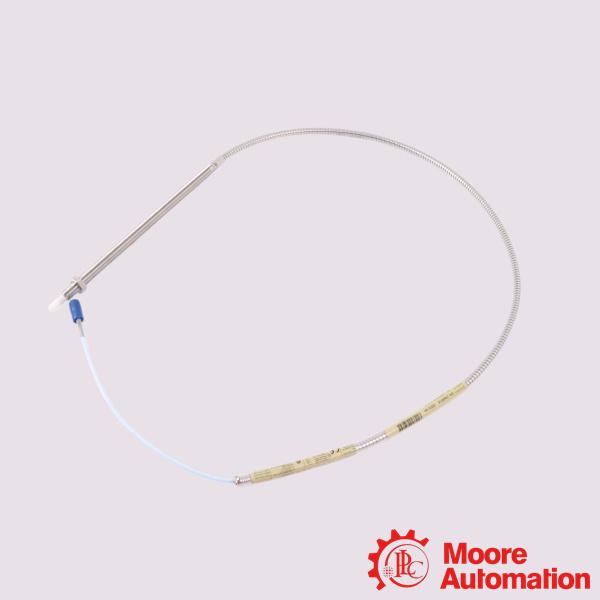

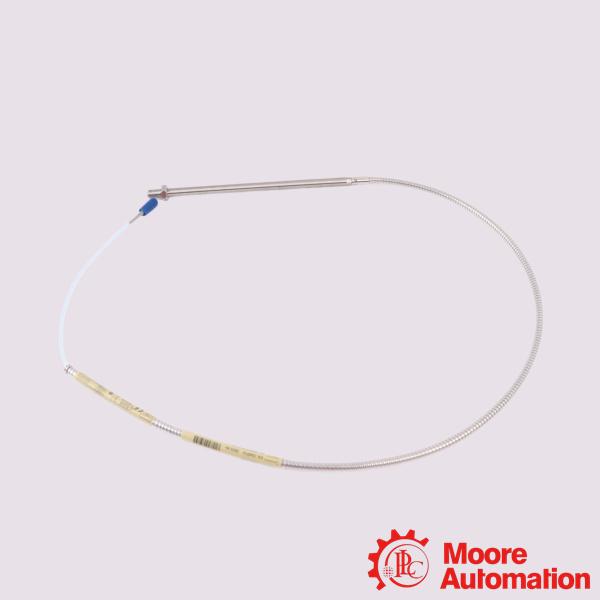

The Bently Nevada 330909-00-40-50-02-CN is an armored proximity probe belonging to the 3300 XL NSv Proximity Transducer System.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).

Frequently Asked Questions (FAQ)

Q:Does this 5.0-meter probe configuration require an extension cable?

A:No, a 5.0-meter probe option typically connects directly to the matching Proximitor Sensor without an intervening extension cable. If you must extend the length, you have to verify that your Proximitor is rated for a 7.0-meter or 9.0-meter total system loop; matching overall loop calibration lengths is mandatory for accurate eddy-current output.
Q:What is the main purpose of the NSv system over a standard 8mm probe?
A:The NSv (Narrow System vibration) line is optimized for installations where a small target is present or where sideview clearance is constrained. It is ideal for measuring radial vibration on shafts smaller than 51 mm (2 inches) or axial position on targets smaller than 15 mm (0.6 inches).

Q:What does the "-CN" suffix mean for operational limits?
A:The "-CN" suffix indicates approvals for hazardous area environments specifically registered for Chinese localized industrial compliance standards. Thermally and mechanically, it matches standard configurations, retaining a nominal operational temperature range of -52°C to +177°C (-62°F to +351°F).
