Product Description:

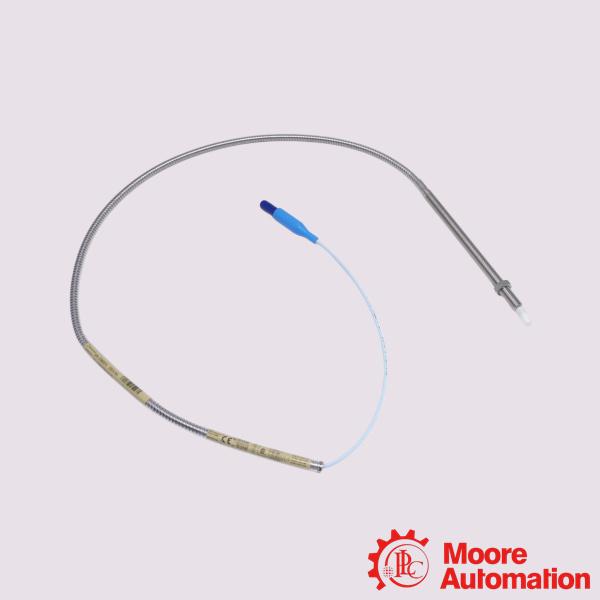

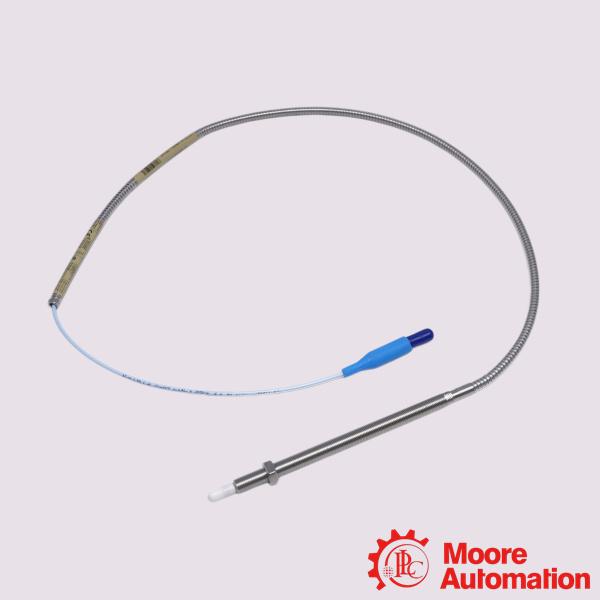

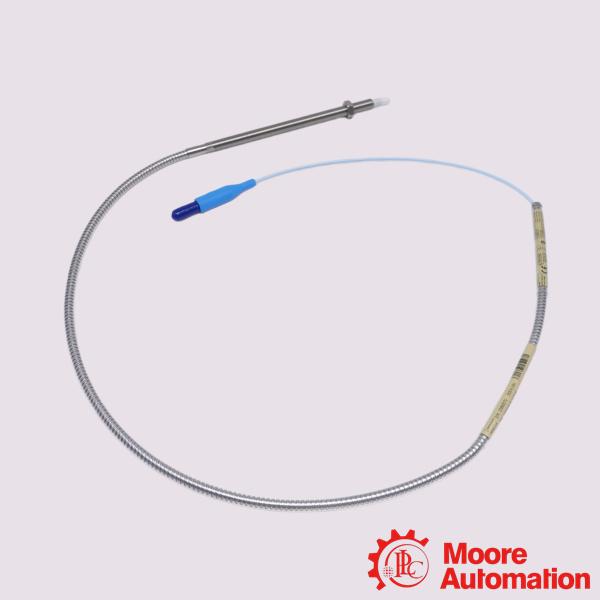

The Bently Nevada 330909-00-60-50-02-05 is an NSv Proximity Probe for vibration monitoring and shaft position measurement in industrial rotating machinery. This probe is for machines with tight installation requirements or small target areas where standard 5 mm or 8 mm systems cannot be used due to space restrictions.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).

Frequently Asked Questions (FAQ)

Q:What are the environmental limits of the armor casing?

A:The stainless steel armor protects the delicate coaxial cable against heavy mechanical wear, hot turbine oil, and chemical splashing. However, you must avoid installing it in fluid boundaries exposed to highly acidic or alkaline mixtures (extreme pH), as they can dissolve the tip assembly and compromise machinery sealing.
Q:Can I connect a 5.0-meter probe directly to any extension cable?
A:No. To maintain system calibration and a nominal average scale factor of 7.87 V/mm (200 mV/mil), the combined length of your probe and extension cable must match the target total length expected by your Proximitor Sensor. For instance, a 5.0-meter total length setup typically uses a 1.0-meter probe combined with a 4.0-meter extension cable, or runs directly into a matching 5.0-meter rated transmitter.

Q:What is the primary purpose of the "NSv" system design?
A:The NSv system is built for machinery with tight physical installation clearances where standard 5mm or 8mm probes face cross-talk or physical boundary restrictions. It is ideal for monitoring small target profiles, such as radial shaft vibration on shafts smaller than 51 mm (2 inches) or axial displacement on flat surfaces smaller than 15 mm (0.6 inches).
