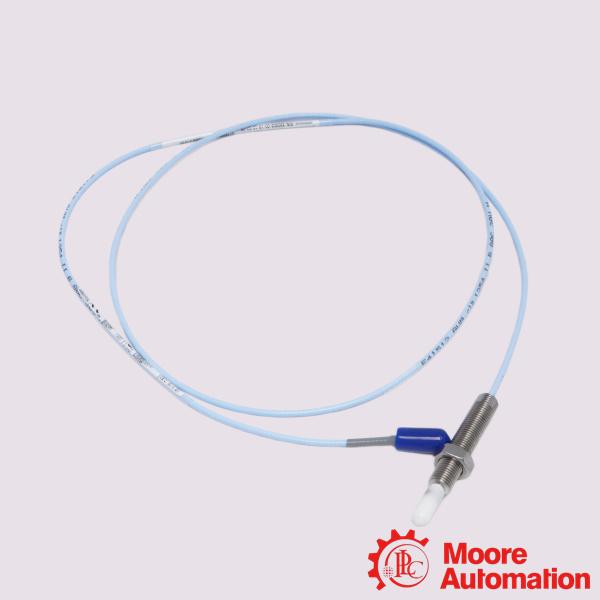

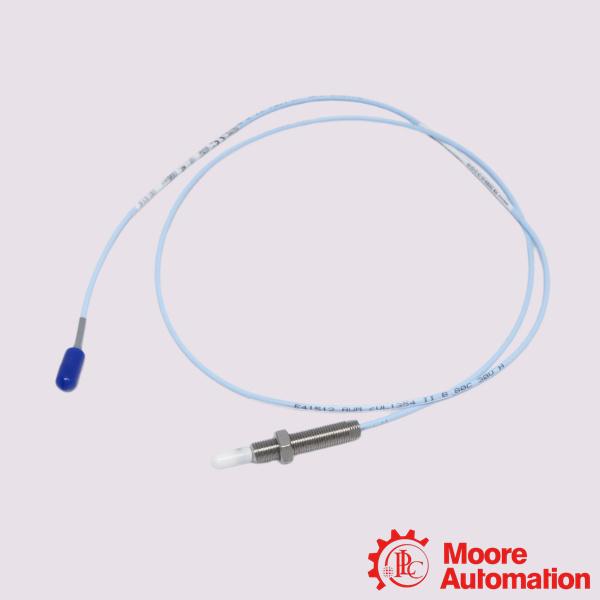

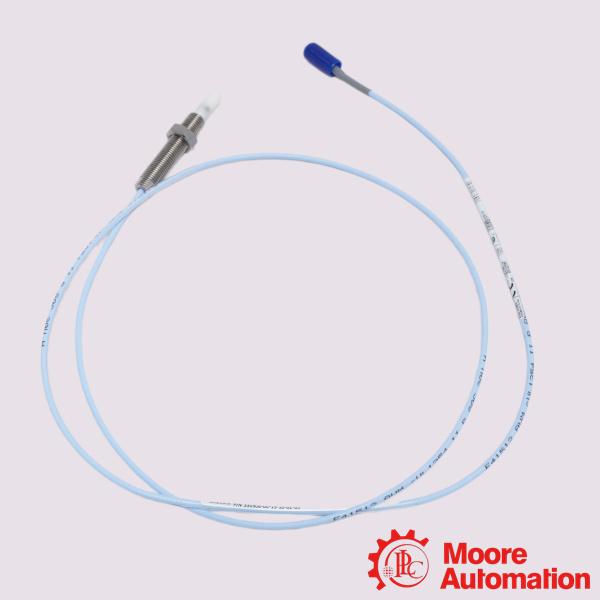

Bently Nevada 330908-00-32-05-02-CN 3300 NSv Proximity Probes
| Mfr. Part Number: |
330908-00-32-05-02-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330908-00-32-05-02-CN is a 3300 XL NSv Proximity Probe for critical turbomachinery asset condition monitoring where tight installation constraints or small shaft targets prevent the use of standard 5mm or 8mm probes.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
Application:
Centrifugal Air Compressors: Extensively used to monitor radial vibration and axial thrust position on tight, compact compressor designs
Refrigeration & Process Gas Compressors: Ideal for harsh chemical and gas processing environments requiring continuous machinery protection.
Small Steam & Gas Turbines: Applied to monitor shaft displacement, structural clearance, and rotational behavior on smaller turbine footprints.
High-Speed Industrial Motors & Pumps: Safeguards high-RPM auxiliary equipment against catastrophic misalignment or bearing wear.
Frequently Asked Questions (FAQ)
Q:How do ClickLoc connectors benefit the installation?
A:The -02 ClickLoc connector option provides a specialized, gold-plated brass interface that locks securely into position with an audible click. This prevents high-frequency machine vibration from loosening the probe-to-extension cable interface over long-term operation.
Q:Which system components must be matched with this probe?
A:To maintain the required electrical calibration, this probe must be used exclusively within a complete 3300 XL NSv system. It must connect to a matching 330930 NSv extension cable and a 330980 NSv Proximitor Sensor.
Q:What are the target size limitations for this probe?
A:Because it is built for compact spaces, it can measure radial vibration on shafts as small as 51 mm (2 inches) or axial position on flat targets down to 15 mm (0.6 inches).
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330908-00-32-05-02-CN |
|
Unthreaded Length Option |
0.0 in |
|
Overall Case Length Option |
3.2 in |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Total Length Option |
0.5 meter (20 in) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
