in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.5x1.3x114cmWeight:
0.05kgCountry of Origin: :
USADescription:

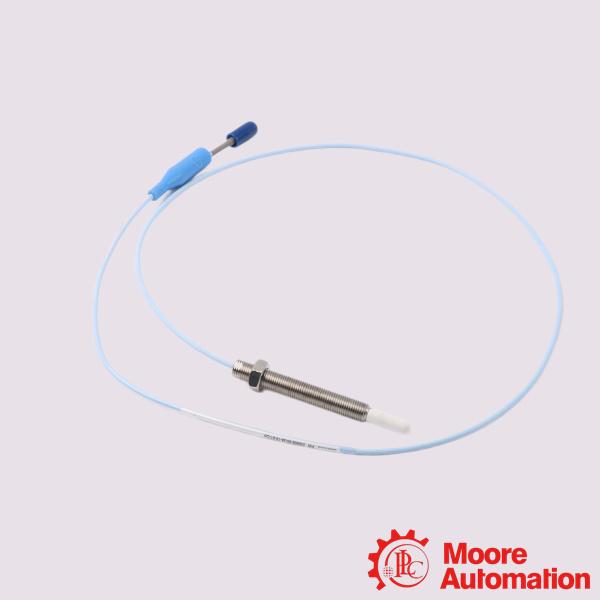

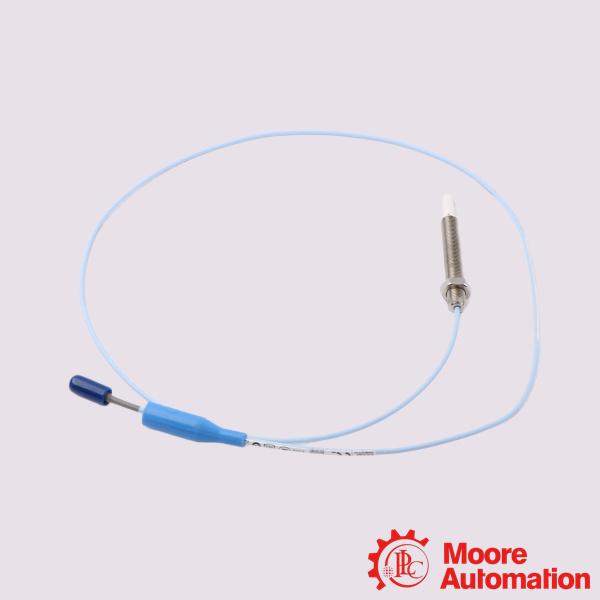

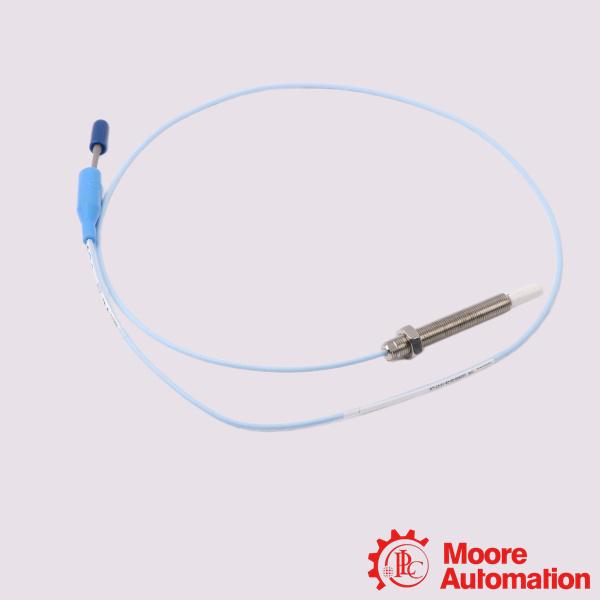

Bently Nevada 330908-00-40-05-02-05 3300 NSv Proximity Probes
| Mfr. Part Number: |
330908-00-40-05-02-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330908-00-40-05-02-05 is a 3300 XL NSv Proximity Probe for non-contact vibration and shaft displacement monitoring in tight spaces. Its core target industrial applications focus heavily on compact rotating machinery with restricted clearances or small targets.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
Application:
Centrifugal Air Compressors: Frequently deployed in plant air supply systems where tight internal casing clearances require a minimal side-view profile.
Refrigeration Compressors: Integrated into large-scale industrial chilling and HVAC operations.
Process Gas Compressors: Used in oil, gas, and chemical refineries where precise monitoring of volatile fluids is required.
Small Turbines and Gearboxes: Applied to auxiliary steam turbines, compact gas turbines, and complex gear drives.
Frequently Asked Questions (FAQ)
Q:What accessories are needed for a full system loop?
A:To deploy this probe in the field, you must combine it with a matching 330930 NSv Extension Cable and a 330980 NSv Proximitor Sensor.
Q:Is this probe backwards compatible?
A:Yes, it acts as a drop-in electrical and mechanical replacement for older 3300 RAM transducer lines. However, upgrades from legacy 3000-series or 7000-series 190 platforms require a complete swap of the probe, extension cable, and Proximitor.
Q:What makes the NSv probe series unique?
A:The "Narrow Side-view" design features superior side-view and counterbore clearance compared to standard 5 mm and 8 mm probes. It targets tiny observation surfaces, such as shafts under 51 mm (2 inches) or flat targets under 15 mm (0.6 inches).
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330908-00-40-05-02-05 |
|
Unthreaded Length Option |
0.0 in |
|
Overall Case Length Option |
4.0 in |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Total Length Option |
0.5 meter (20 in) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
Multiple Approvals |
|
