Bently Nevada 330101-16-40-05-01-05 3300 XL 8mm probe

Description

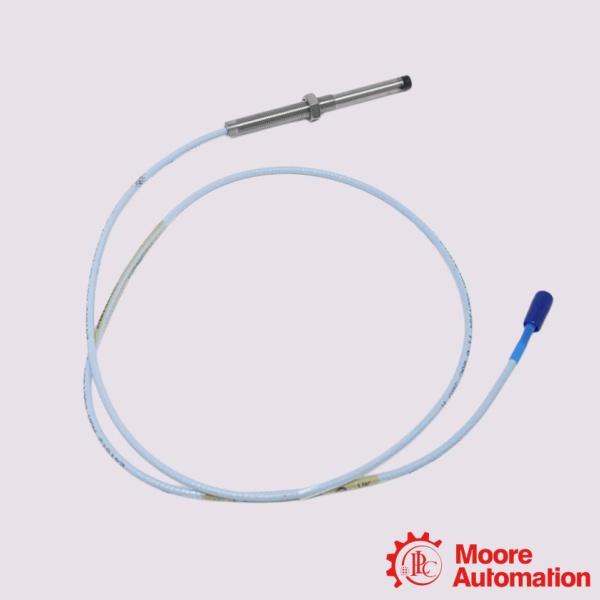

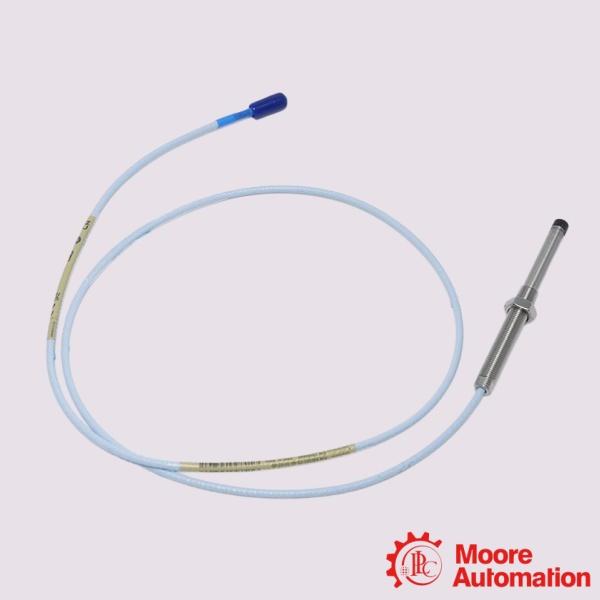

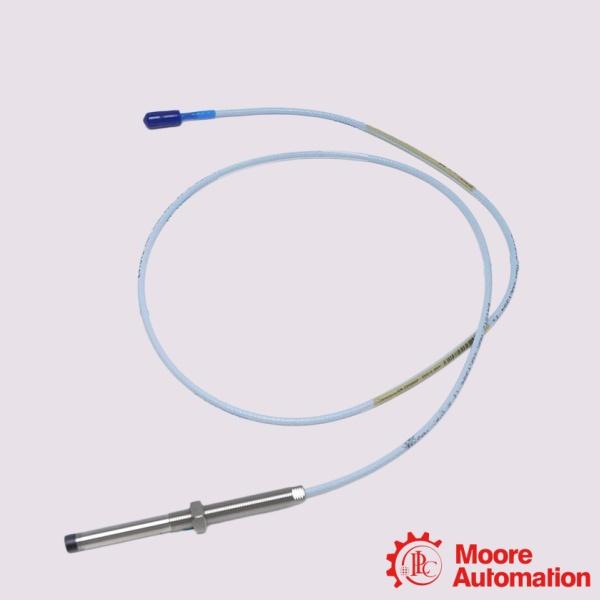

The Bently Nevada 330101-16-40-05-01-05 is a 3300 XL 8 mm Proximity Probe designed for non-contact measurement of shaft vibration and shaft position in rotating machinery applications. It is a component of the 3300 XL 8 mm Proximity Transducer System, which includes the proximity probe, extension cable, and Proximitor Sensor to provide accurate displacement measurement of rotating equipment. The probe operates using eddy current sensing technology to measure the distance between the probe tip and the conductive target surface. The system converts this distance measurement into an output voltage proportional to the observed gap, allowing both dynamic vibration and static shaft position values to be monitored. The 3300 XL 8 mm system is commonly applied for vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurement applications. The 330101-16-40-05-01-05 configuration features a 3/8-24 UNF threaded probe without armor, with an unthreaded length option of 1.6 inches, an overall case length option of 4.0 inches, and a total probe length of 0.5 meter. It is equipped with a Miniature coaxial ClickLoc connector with connector protector and standard cable, and includes CSA, ATEX, and IECEx agency approvals.

Parameter

Model: 330101-16-40-05-01-05 3300 XL 8mm probe
Unthreaded Length Option: 16-1.6 in
Overall Case Length Option: 40-4.0 in
Total Length Option: 05-0.5 meter (1.6 feet)
Connector and Cable-Type Option: 01-Miniature coaxial ClickLoc connector with connector protector, standard cable
Agency Approval Option: 05-CSA, ATEX, IECEx  Approvals

Frequently asked questions

Q:What should be verified before replacing the 330101-16-40-05-01-05?
A:Before replacement, verify the complete part number, thread type, unthreaded length, case length, total cable length, connector configuration, approval option, and compatibility with the installed 3300 XL monitoring system.

Q:Can the probe operate by itself?
A:No. The probe is one component of the transducer system and must be used with a compatible 3300 XL extension cable and 3300 XL Proximitor Sensor to achieve the specified measurement performance

Q:Which transducer system does this probe belong to?
A:This model belongs to the 3300 XL 8 mm Proximity Transducer System, which consists of a proximity probe, an extension cable, and a Proximitor Sensor. These three components are designed to operate together as a calibrated system.

Application areas

• Oil & Gas Upstream/Midstream: Deployed on offshore drilling/production platforms, subsea extraction manifolds, and pipeline booster stations requiring certified hazardous area instrumentation.
• Power Generation Plants: Mounted inside complex utility power blocks, steam turbine generation trains, heavy-duty gas turbines, and conventional islands of nuclear generation plants.
• Chemical Manufacturing: Integrated across continuous chemical process loops, automated mixing reactors, and fertilizer production lines with explosive atmospheres.
