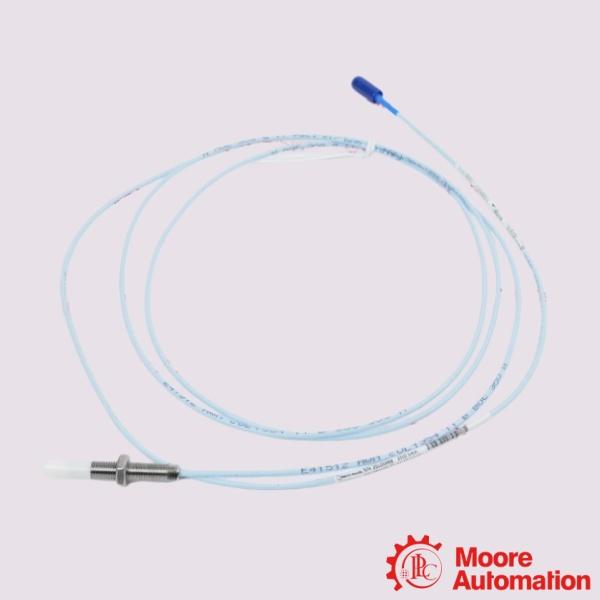

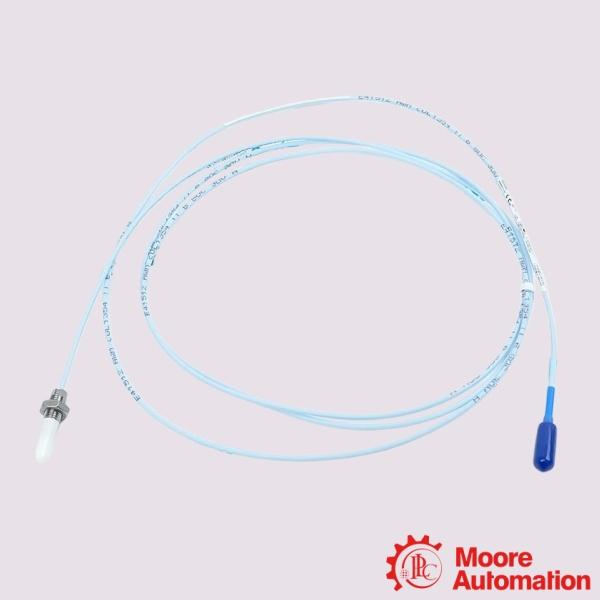

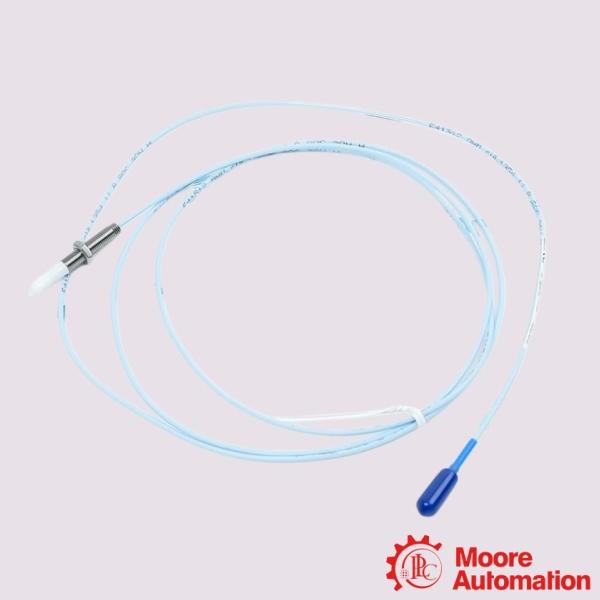

Bently Nevada 330173-03-08-05-02-05 3300 5mm proximity probe

Parameter
MModel: 330173-03-08-05-02-05 3300 5mm proximity probe
Unthreaded Length Option: 03-30 mm
Overall Case Length Option: 08-80 mm
Total Length Option: 05-0.5 meter (1.6 feet)
Connector Option: 02-Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option: 05-Multiple Approvals

Description

The Bently Nevada 330173-03-08-05-02-05 is a 3300 5 mm Proximity Probe designed for non-contact measurement of shaft vibration and shaft position in rotating machinery. It is used as one element of the 3300 5 mm Proximity Transducer System, together with a compatible 3300 XL extension cable and 3300 XL Proximitor Sensor. The complete transducer system provides an output voltage proportional to the distance between the probe tip and the observed conductive surface. The probe operates using eddy current sensing technology to monitor both dynamic vibration and static shaft position without contacting the rotating component. In addition to vibration and position measurement, the 3300 5 mm system is suitable for Keyphasor reference and speed measurement applications. The probe is intended for installations where the available mounting space is limited while maintaining the same linear measurement range as the 3300 XL 8 mm probe. The 330173-03-08-05-02-05 configuration is supplied with an M8 × 1 threaded probe, without armor, an unthreaded length option of 30 mm, an overall case length of 80 mm, a 0.5 m total cable length, a miniature coaxial ClickLoc connector, and multiple agency approvals (CSA, ATEX, IECEx).

Frequently asked questions

Q:What applications are suitable for the 330173-03-08-05-02-05?
A:The probe is intended for vibration and position measurement on fluid-film bearing machines. It is also suitable for Keyphasor reference and speed measurement applications.

Q:Which product family does the 330173-03-08-05-02-05 belong to?
A:This model belongs to the 3300 5 mm Proximity Probe series. It is designed for use with a compatible 3300 XL extension cable and 3300 XL Proximitor Sensor to form a complete transducer system.

Q:Does this probe operate by itself?

A:No. The probe must be connected to a compatible 3300 XL extension cable and 3300 XL Proximitor Sensor to complete the proximity transducer system.

Application areas

• Petrochemical & Oil Refining: Installed directly within continuous chemical processing loops, catalytic crackers, and distillation machinery setups operating under certified explosive gas risks.
• Oil & Gas Extractions: Deployed on upstream offshore platforms, subsea extraction facilities, and midstream pipeline transport pump hubs requiring certified explosion-proof equipment.
• Power Generation Plants: Mounted inside complex utility power blocks, traditional steam turbines, and alternative fuel generation machinery grids.
• General Manufacturing: Integrated into automated manufacturing lines, high-capacity paper mills, and primary heavy metal extrusion facilities.
