330905-00-05-05-02-05 | Bently Nevada 3300 NSv Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.8x1.6x62cm
Weight:
0.04kg
Country of Origin: :
USA
Description:
Bently Nevada 330905-00-05-05-02-05 3300 NSv Proximity Probes

Inquiry now

Mfr. Part Number:	330905-00-05-05-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330905-00-05-05-02-05 3300 NSv Proximity Probes

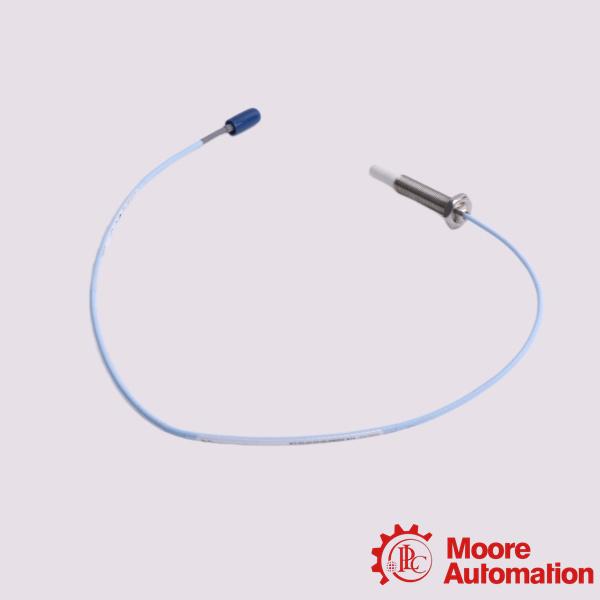

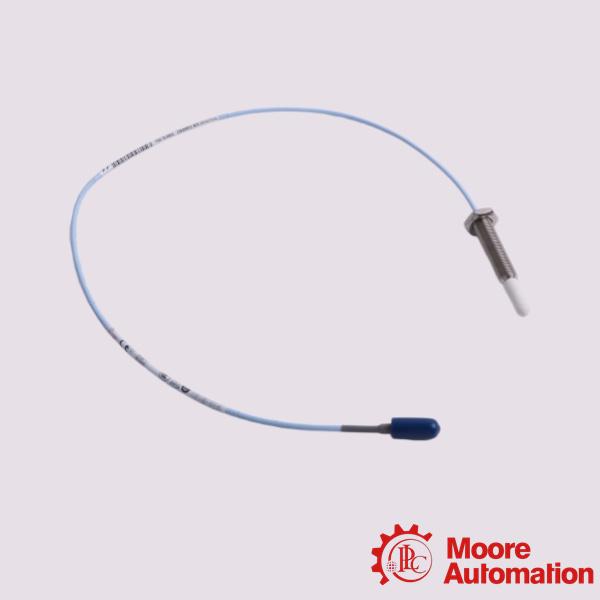

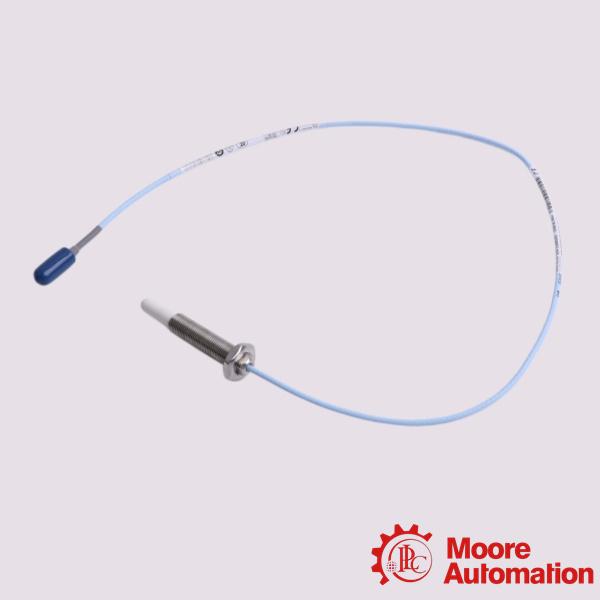

Full Description:	The 330905-00-05-05-02-05 3300 NSv Proximity Probe is a M8 x 1 thread, without armor probe for vibration and position measurements in small shaft and tight installation machinery applications.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330905-00-05-05-02-05 probe and extension cable are mechanically and electrically compatible with previous 3300 RAM proximity probes and extension cables, allowing direct interchangeability. Compared with the 3300 RAM probe, the NSv probe provides increased chemical resistance, making it suitable for many process compressor applications. It also offers improved side-view characteristics over the 3000-series 190 probe when installed at the same probe target distance.

The probe comes in varying probe case configurations, including armored and unarmored 1/4-28, 3⁄8-24, M8X1 and M10X1
probe threads. The reverse mount 3300 NSv probe comes standard with either 3⁄8-24 or M10X1 threads.

Application:

Centrifugal Air Compressors: Used for precise radial vibration and shaft position monitoring on heavy-duty industrial air compressors operating within tight internal clearances.
Industrial Refrigeration Plants: Integrated into large-scale cooling and chiller compressor packages for continuous thrust position supervision and machinery protection.
Process Gas Compressor Facilities: Applied on high-pressure hydrocarbon and gas processing machinery where compact clearances require a narrow side-view footprint for non-contact measurements.
Fluid-Filmed Bearing Systems: Installed near fluid-film bearings to monitor shaft movement on targets smaller than 51 mm where standard 5 mm or 8 mm sensors cannot fit.

Frequently Asked Questions (FAQ)

Q: Does the unarmored cable version of the 330903-00-04-05-02-05 probe require special installation tools?
A: No, the miniature coaxial ClickLoc connector uses a finger-tightened mechanical locking mechanism for secure connection and environmental protection.

Q: Can the 330905-00-05-05-02-05 probe operate when immersed in lubricating oil?
A: Yes, it is compatible with most turbine and compressor hydrocarbon-based lubricating oils.

Q: How does the 330905-00-05-05-02-05 probe handle electromagnetic interference?
A: It is designed with high RFI/EMI immunity and maintains stable operation in high-frequency noise environments.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: 330905-00-05-05-02-05
Unthreaded Length Option (AA)	00 0 mm
Overall Case Length Option (BB)	05 50mm
Total Length Option (CC)	05 0.5 meter (20 in)
Connector and Cable-Type Option (DD)	02 Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option (EE)	05 Multiple Approvals
Power Requires	-17.5 Vdc to -26 Vdc
Supply Sensitivity	Less than 2 mV
Output Resistance	50 Ω
Extension Cable Capacitance	69.9 pF/m (21.3 pF/ft)
Linear Range	1.5 mm (60 mils)
Recommended Gap Setting	1.0 mm (40 mils)
Frequency Response	0 to 10 kHz
Operating Temperature	-52°C to +177°C (-62°F to +351°F)
Storage Temperature	-52°C to +177°C (-62°F to +351°F)
