Product Description:

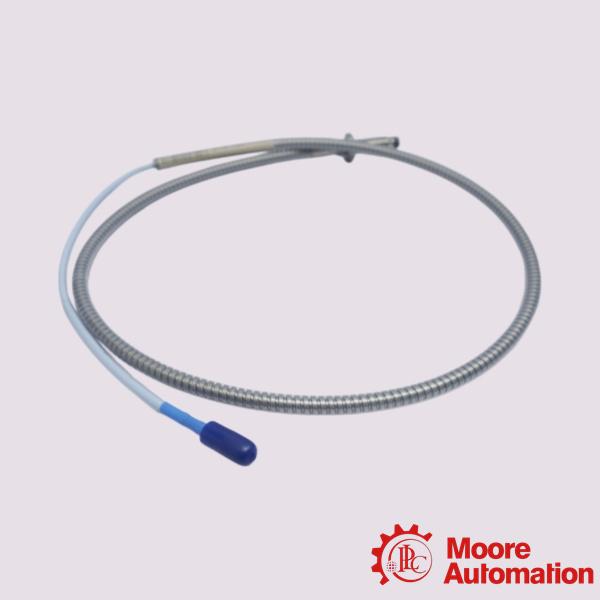

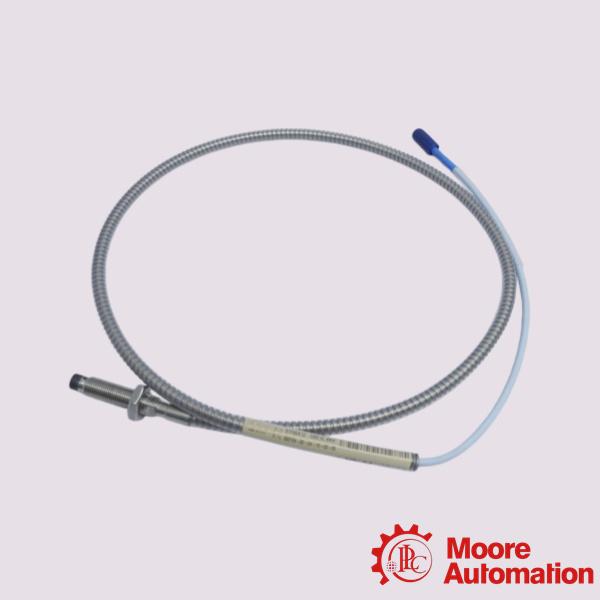

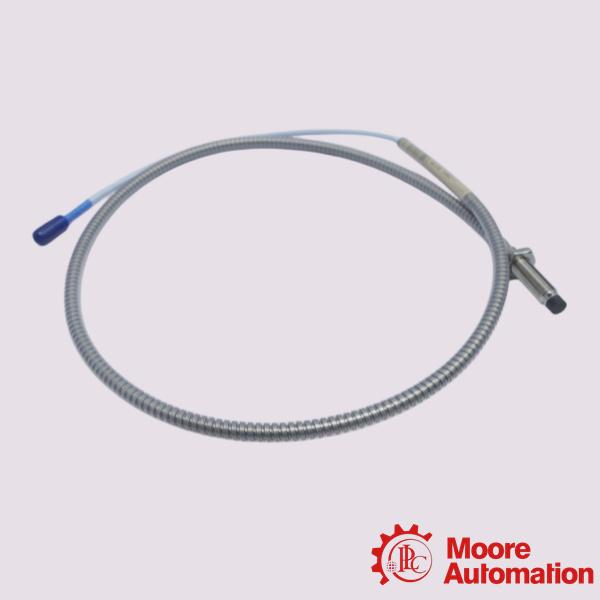

The 330104-00-04-10-02-00 3300 XL probe reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330N (75 lbf) pull strength to more securely attach the probe cable and probe tip.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range,accuracy.

Application:

Electric power industry: Turbines, generators, water turbines, blowers in gas turbine power plants.
Petroleum and natural gas: Centrifugal compressors, reciprocating compressors, oil pumps in refineries.
Heavy chemical and coal chemical industries: Key units such as extruders, cracking gas compressors, high-pressure pumps.
Metallurgy and steel: Blast furnace blowers, transmission chains of rolling mills, and exhaust fans.

Frequently Asked Questions (FAQ)

Q: What should I do if the 330104-00-04-10-02-00 probe tip accumulates a layer of non-conductive graphite or carbon dust?
A: Non-conductive deposits do not affect the eddy-current sensing field, so measurement accuracy remains stable. However, periodic cleaning is recommended to prevent buildup that may cause mechanical contact with the rotating shaft.

Q: Can I run the 330104-00-04-10-02-00 coaxial cable through the same conduit as high-current motor power cables?
A: No. High-current or high-voltage AC cables can introduce electromagnetic interference into the sensor signal. The probe cable must be routed in separate, shielded low-voltage conduits or trays.

Q: Does the 330104-00-04-10-02-00 probe assembly provide electrical isolation from the machine chassis?
A: No. The probe body is electrically connected to the coaxial shield. System-level electrical isolation must be provided by the external driver electronics.
