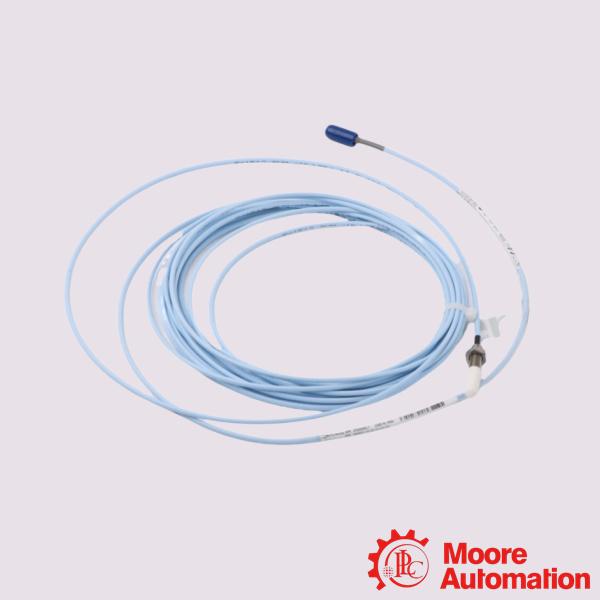

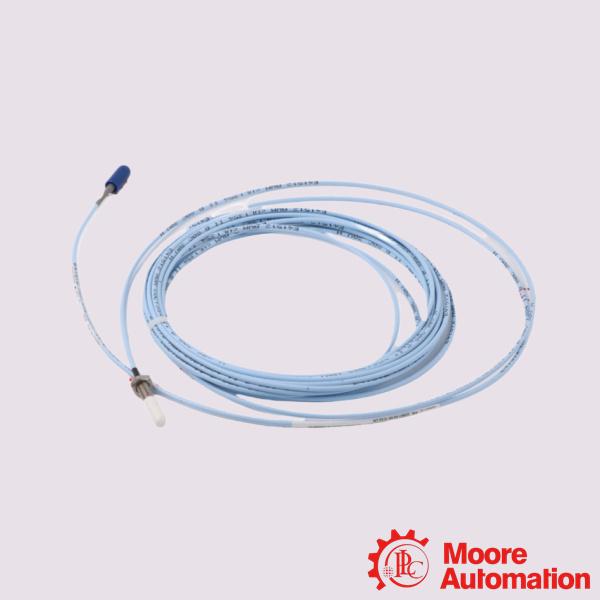

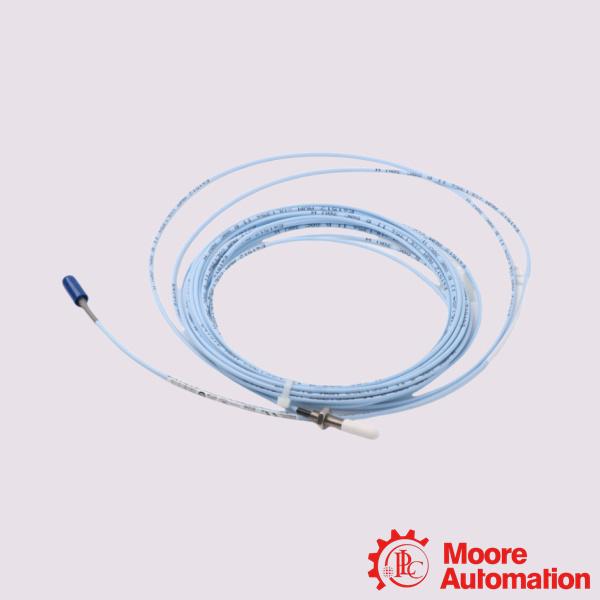

330901-22-40-10-01-05 | Bently Nevada 3300 NSv Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.2x1x66cm
Weight:
0.02kg
Country of Origin: :
USA
Description:
Bently Nevada 330901-22-40-10-01-05 3300 NSv Proximity Probes

Inquiry now

Mfr. Part Number:	330901-22-40-10-01-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330901-22-40-10-01-05 3300 NSv Proximity Probes

Full Description:	The 330901-22-40-10-01-05 3300 NSv Proximity Probes is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The primary uses for the 330901-22-40-10-01-05 3300 NSv Proximity Probes are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in)

Application:

Small Steam and Gas Turbines: Monitors internal shaft dynamics and thrust bearings.
Centrifugal and Axial Compressors: Ensures early warning for aerodynamic surges or mechanical imbalances.
Industrial Pumps and Fans: Keeps vital auxiliary fluid and air handling systems online.
Gearboxes and Electric Motors: Tracks high-speed input/output pinion shifts and rotor health.

Frequently Asked Questions (FAQ)

Q:What is an "NSv" probe and when should I use it?
A:NSv stands for Narrow Side View. It uses a specialized eddy current sensor profile that requires less cross-sectional spacing and features superior side-view clearance characteristics. Use it in tightly constrained machinery where a standard 8mm probe would suffer from side-wall interference (e.g., inside narrow counterbores, tight radial clearances, or gearboxes)
Q:What is the typical sensitivity of this probe?
A:When paired with the matching 3300 XL NSv Proximitor Sensor, this system delivers a nominal scale factor/sensitivity of 7.87 mV/mil (0.31 V/mm). Ensure your monitor card configuration is set up to read this specific scale factor, as it differs from the standard 8mm probe sensitivity of 200 mV/mil.

Q:What are the recommended torque specs for installation?
A:For a 1/4-28 UNF threaded case, the maximum installation torque is 65 in·lb, but Bently Nevada recommends tightening it to a standard target of 45 in·lb to prevent cracking or stress-straining the probe tip.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330901-22-40-10-01-05
Unthreaded Length Option	22 in
Overall Case Length Option	4.0 in
Total Length Option	1.0 meter (39 in)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector
Agency Approval Option	Multiple Approvals
Output resistance	50 Ω
Extension cable capacitance	69.9 pF/m (21.3 pF/ft) typical
Probe Tip Materia	Polyphenylene sulfide (PPS).
Probe Case Material	AISI 304 stainless steel (SST).
Operating Temperature	-52°C to +177°C (-62°F to +351°F)
